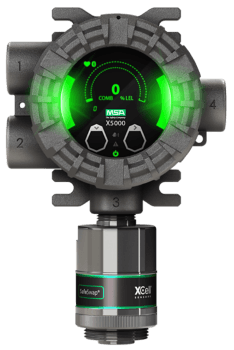

ULTIMA® X5000 - Gas Monitor

The ULTIMA® X5000 Gas Monitor from MSA is the future of gas detection for oxygen, toxic and combustible gases. MSA XCell® gas sensors with TruCal® technology delivers calibration cycles up to 18 months (local calibration respected). The gas transmitter's advanced, multi-lingual OLED display is simple to read and the innovative touch-screen interface makes it easy to navigate.

Highlights

  • An industry first, a touch-button interface for an intuitive user experience and tool-free operation
  • New design with an Organic LED (OLED) display and bright status LEDs for extreme visibility
  • TruCal technology dynamically monitors the sensor integrity and compensates for environmental influences that cause standard electrochemical sensors to drift
    • Reduces downtime
    • Automatically self-checks 4x/day
    • Three year warranty on XCell sensors
  • SafeSwap enables safe and fast replacement of gas sensors without switching off the instrument
  • Dual sensor capability doubles the sensing power with half of the footprint of a single gas transmitter
  • Bluetooth wireless technology allows mobile device to serve as an HMI screen and controller. The X/S Connect App is programmed with high security standards and offers real-time information to the mobile device of the user
    • Reduce set up time by at least 50%
    • Check status and get alerts up to 75 ft. (23 m) away
  • Identical footprint and wiring as the ULTIMA X series simplifies retrofits using the present conduit and wiring as well as an integral mounting bracket

Markets: Industrial, oil and gas, utilities

Applications: Building protection, confined space, oxygen detection, combustible detection, food processes, perimeter monitoring, toxic detection

Options

Ordering Options

  • ATO configurator

Accessories

  • Mounting bracket
  • HART port
  • Duct mount kit
  • Sun shield
  • Remote junction box
  • Housing entries M25 or ¾”NPT

Approvals

US Divisions

Class I Div 1 Groups A-D, T5, Type 4X, IP66 Class II Div 1 Groups E-G, T6; Class III

US Zones

Class I Zone 1 AEx db IIC T5 Gb
Class II Zone 21 AEx tb IIIC T85 °C Db Global Zones
Ex db IIC T5 Gb
Ex tb IIIC T85 °C Db

CSA, ATEX, IECEx, CE Marking.
Complies with C22.2 No. 152, FM 6320, IEC/EN: EN 60079-29-1, ANSI/ISA 12.13.01.
Suitable for SIL 2
