SG Micro Launches New HDMI Interface Product with Load Switch and Logic Level Translator

SG Micro Corp, a high-performance high-quality analog IC provider, has introduced a new HDMI interface product with load switch and logic level translator.

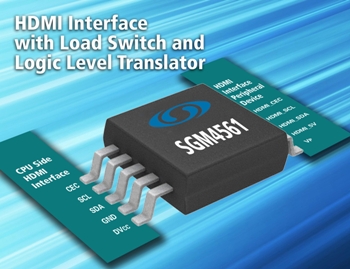

The SGM4561 provides the load switch and signal level shifting needed for HDMI interface. The part meets all type approval requirements of logical level shifting for HDMI interface and contains a 5.0V load switch to protect hot-insertion of HDMI interface. The load switch can support 200mA of load current. The internal level translators allow controllers operating with supplies as low as 1.6V to translate 1.8V or 2.8V or 3.3V logical level to 5.0V logical level used by HDMI interface. The SGM4561 has a low operating current of typically 100μA.

The SGM4561 is available in the Green MSOP-10 package. It operates over an ambient temperature range of -40℃ to +85℃.

Features and Specifications

Integrated Load Switch Supporting 200mA Load Current.
5.0V to 5.5V Input Voltage Range for Load Switch 1.6V to 5.5V Controller Side Logical Level Voltage Range Fast Signal Rise Time Operating Current: 100uA Shutdown Current: 1uA Built-In Fault Protection Circuitry Level Translators from 1.8V or 2.8V or 3.3V to 5.0V Operating Temperature Range: -40℃ to +85℃ Available in Green MSOP-10 Package
