Level Measurements for Solid, Powder, and Liquid Materials: Terabee Stock Level Monitoring System

The Stock Level Monitoring System available from Terabee allows real-time and contactless level measurements for liquid, powder, and solid materials. The LED Time-of-Flight technology enables users to monitor open containers, stockpiles, and tanks up to 60 m tall!

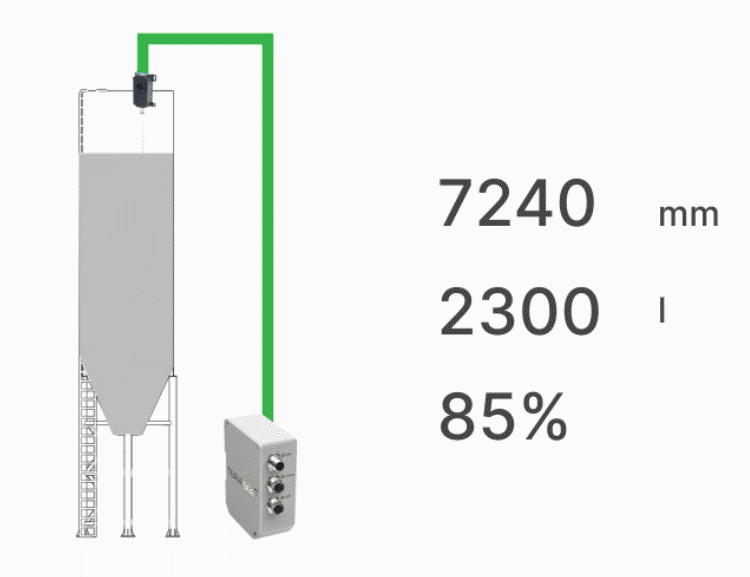

Edge computing uses the distance information from sensors and converts it into volume and level estimations of the leftover material stock.

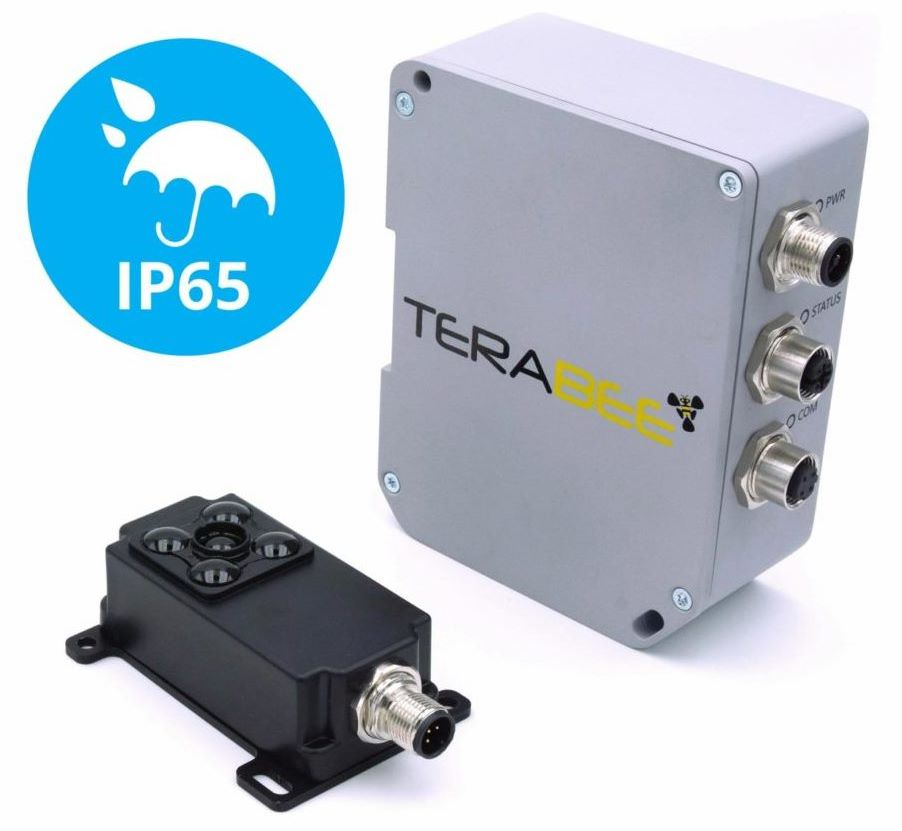

Users can profit from rugged IP65-rated sensor and computing enclosures and a dependable Ethernet interface for communication to Programmable Logic Controllers.

Users can select from three kits:

  • 1 Stock Level Supervisor + 1 Sensor
  • 1 Stock Level Supervisor + 4 Sensors
  • 1 Stock Level Supervisor + 8 Sensors

Key System Features

  • Higher price versus performance ratio
  • Onboard software for simple and rapid system configuration
  • No straight contact with the material—optical ToF technology
  • Multi-sensor level measurements for huge containers
  • Ethernet (Modbus TCP/IP) interface provided for PLC connections
  • Real-time edge computing of volume levels and material fill
  • Provided with water-resistant and dust-proof IP65 enclosures

Applications

Containers with uneven surface distribution.

Containers with the uneven surface distribution.

Opaque liquids (fuel, oils, etc).

Opaque liquids (fuel, oils, etc).

Stockpiles, open containers and spaces.

Stockpiles, open containers, and spaces.

From Single- to Multi-Sensor Level Measurements

In the case of solids or liquids with known material distribution, Terabee suggests a single sensor configuration, linked to the Stock Level Supervisor.

In the case of huge materials or containers with an uncertain distribution pattern, users can make use of a single Stock Level Supervisor with several sensors. More precise level estimations can be ensured by taking multiple reading points.

Level Measurements for Solid, Powder, and Liquid Materials: Terabee Stock Level Monitoring System

Access to Onboard Setup Software

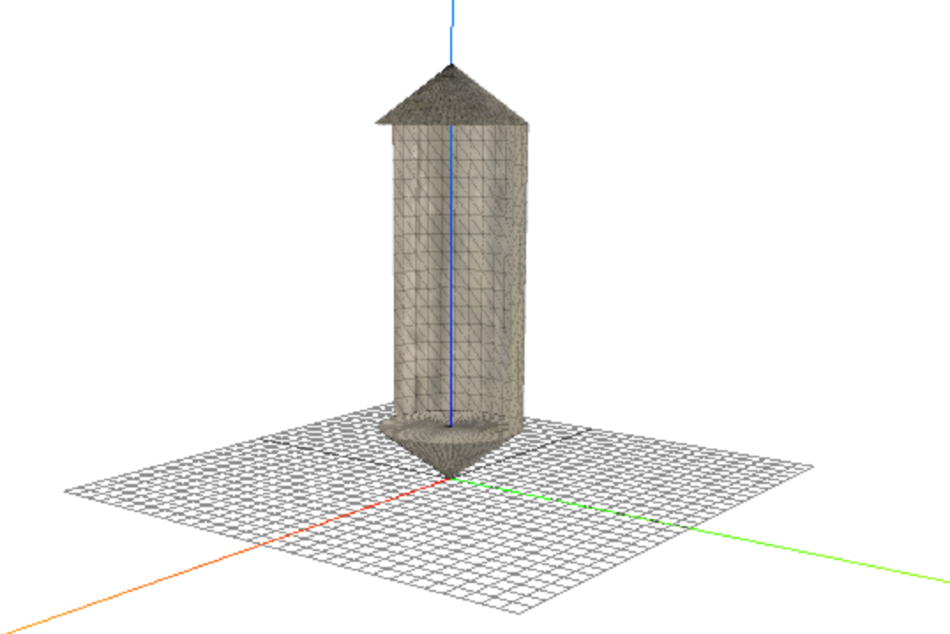

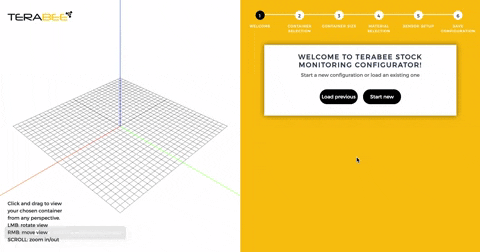

The Supervisor includes embedded software for quick and intuitive system setup. Users can just connect with Ethernet or WiFi to configure container shape and dimensions, the number of sensors to be utilized, material type to be tracked, as well as to tune the level and volume data calculations.

Level Measurements for Solid, Powder, and Liquid Materials: Terabee Stock Level Monitoring System

Safe and Risk-Free Level Monitoring

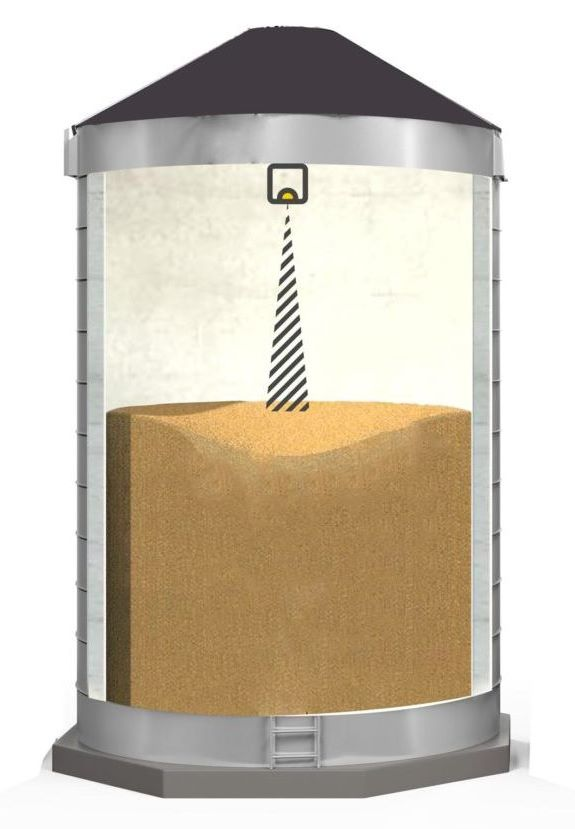

Users can prevent contamination of the contents. The optical infrared Time-of-Flight system does not come directly into contact with stored materials, thus offering safe and non-intrusive inventory management.

Level Measurements for Solid, Powder, and Liquid Materials: Terabee Stock Level Monitoring System

Rugged, Dust-Proof, and Water-Resistant

Users can gain profit from IP65-rated enclosures appropriate for industry standards, like washdown needs, and usage in outdoor applications.

Level Measurements for Solid, Powder, and Liquid Materials: Terabee Stock Level Monitoring System

Need More Level Sensors for Different Applications?

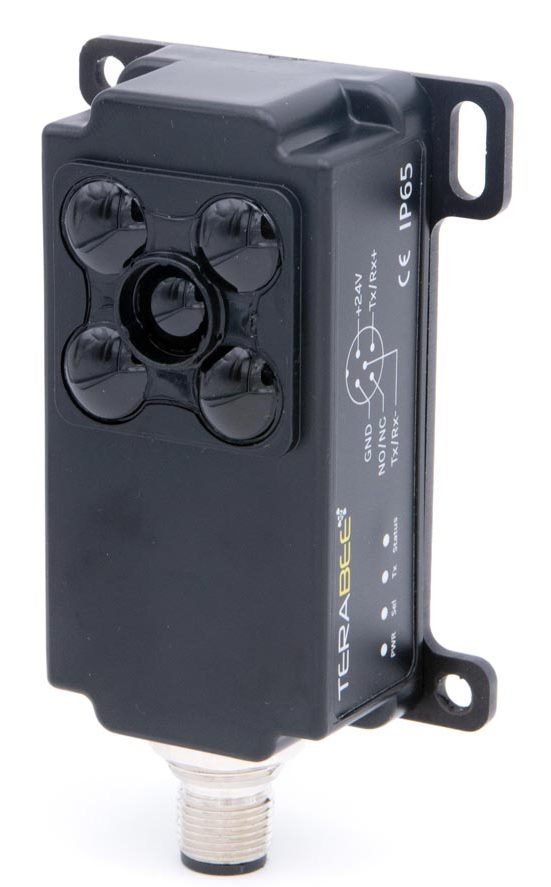

Users who need more level sensors to support their multi-container, multi-sensor configuration can just add more Stock Level Sensors to their order.

Level Measurements for Solid, Powder, and Liquid Materials: Terabee Stock Level Monitoring System

Software Development for Custom Applications

Different setup parameters could be required for different materials and applications. Terabee’s engineers can work together with the users to develop tailored software configurations to address their requirements.

Level Measurements for Solid, Powder, and Liquid Materials: Terabee Stock Level Monitoring System
