NCR-80: Non-Contact Radar for Solids

The BinMaster NCR-80 is a non-contact radar level sensor that is designed for superior performance in bulk solids and extremely dusty powders. It possesses a powerful 80 GHz frequency that is focused in a narrow 4 ° beam angle. This has an accuracy that is within 0.2 inches and measuring range of up to 393 feet, so it excels in narrow and tall vessels.

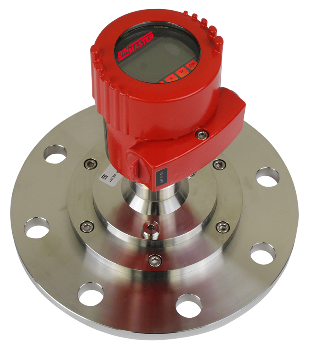

For precise targeting, the NCR-80 is provided with a stainless steel, 10 ° swiveling flange, a 1-1/2" NPT mounting option for use in an existing process connection, or a lightweight plastic antenna with an 8 ° swiveling flange or mounting strap for adjustable targeting.

The NCR-80 is resistant to interference and its advanced filters ensure fast signal processing and an update rate of under a second.

Applications

  • Measure levels within equipment, like ESP hoppers or crushers
  • Level measurement of pits or piles
  • Aggregates, wood chips, pellets, cement, sand, grain, power, or plastics
  • Single point level measurement in extremely tall, narrow silos
  • Materials with limited reflectivity or low dielectric materials
  • Over conveyor belts to detect when belts are running empty or to stop overloading
  • Vessels with excessive dust, noise, or high temperatures
  • Mounted over piled material in flat storage warehouses
  • Vessels where precise aiming is required to avoid flow stream, internal structure, or sidewall buildup

Features

  • Hazardous location approvals
  • BinDisc option simplifies setup and configuration
  • Powerful 80 GHz non-contact radar
  • FDA approval for pharmaceutical or food utilization
  • Up to 393 feet measuring distance
  • 4 ° beam angle for precise targeting
  • Chemical-resistant for long-lasting performance
  • Reliable accuracy within 0.2 inches
  • High temperatures up to 392 °F

General Specifications

  • Output: Profibus PA, Foundation Fieldbus, Two-wire 4 - 20 mA/HART®, Modbus, Four-wire 4 - 20 mA/HART®
  • Accuracy: ± .2 ” (5 mm)
  • Frequency: 79 GHz
  • Measuring Range: 394 feet (120 m)
  • Enclosure Rating: IP66/IP68 (0.2 bar), IP66/IP67, IP66/IP68 (1 bar)
  • Power Requirements:
    • Low Voltage Version: 9.6 to 48 V DC, 20 to 42 V AC, 50/60 Hz
    • Regular Voltage Version: 90 to 253 V AC, 50/60 Hz

Model Specifications

  • 1-½ " NPT
  • Stainless Steel (Metal) Flange
  • Plastic Antenna

Video Credit: BinMaster
