OPP-M200 (PEEK Encapsulation) - MEMS-Based Fiber Optic Pressure Sensor

OPP-M from OpSens is a MEMS-based fiber optic pressure sensor that has been specifically developed for the measurement of human and animal physiological pressure. These miniature 0.20 mm OD sensors have been designed to be used specifically in medical devices, such as catheters or guidewires.

Guidewires or other similar interventional devices allow minimally invasive physiology pressure measurement. Its novel patent-pending design helps remove moisture-induced drift and reduces thermal zero shift.

The PK6 encapsulation is ideal for an appliaction that allows for a larger size, but has challenging material compatbility requirements.

OpSens new encapsulated OPP-M is integration ready. The encapsulation could be performed on the sensor tip and across the entire optical cable in various materials and sizes. The packaged sensor helps considerably decrease the product development investment, hence reducing the complete cost of implementation and manufacturing processes.

Integrated with Opsens WLPI signal conditioning technology (patent # 7,259,862) and with the characteristic benefits of fiber optic, the OPP-M tackles the medical industry’s needs for long-term precision, repeatability, low drift, and high-fidelity pressure measurements under the existence of harsh RF, EM, MR, and microwave fields.

Key Features

  • High fidelity
  • Comes with custom sensor packaging
  • Simple catheter integration
  • MRI safe and compatible
  • EMI/RFI immunity
  • Affordable
  • Ultra miniature


  • Physiological pressure monitoring
    • Urodynamic
    • Intravascular blood pressure
    • Intra ocular
    • Intra aortic balloon pumping
    • Intra cranialal pressure is provided
  • Guidewires design (0.2, 5 mm OD model)
  • Catheter research, new product development design
  • Cardiac assist applications
  • Pressure measurement performed under electro-surgery, MRI, and MW/RF-related particles

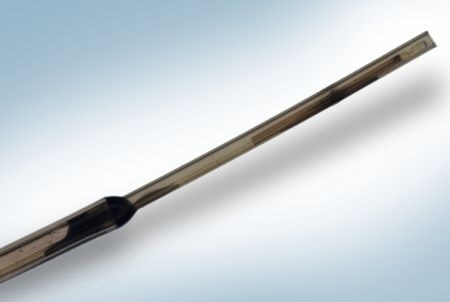

PK6 Encapsulation: MEMS-Based Fiber Optic Pressure Sensor.

Image Credit: OpSens Medical


Source: Opsens Inc

Dimension (mm O.D.) 0,20 mm OD
Pressure range - 300 mmHg to + 350 mmHg (relative to atmospheric pressure)
Precision ± 1 mmHg
Resolution 0.2 mmHg
Moisture drift (typical) < 3 mmHg/28 days
Thermal coefficient of Zero (typical) 0.2 mmHg per °C
Proof pressure 4000 mmHg
Operating temperature 10 °C to 50 °C
Operating humidity range 0-100%
EM/RF/MR/MW susceptibility Complete immunity
Cable length 1.5 meters standard (Other lengths available)
Optical connector SC standard
Cable sheathing Customer specifications
Signal conditioner compatibility:best suited for MiniP OEM board, LifeSens and ProSens; also compatible with other Opsens WLPI signal.


NOTE: The OPP-M product is designed to be integrated into customer host system but is not approved by the FDA or by any applicable regulatory bodies.
