The OTG-M series (OTG-M170, OTG-M220, OTG-M360, OTG-M420, OTG-M600, OTG-MPK5, and OTG-MPK8) fiber optic temperature sensors from OpSens provides excellent performance. These sensors use a tried-and-tested method of temperature transduction depending on the temperature-dependent bandgap of GaAs crystal.
It is practical for tip measurement applications because of the small sensing GaAs crystal that is located at the optical fiber’s tip. The response time and the sensor’s diameter (OD) is unique to each model of the OTG-M series.
The OTG-M provides unmatched repeatability and reliability, even in the harshest of conditions such as EM, RF, MR, and microwave field environments, with the inherent benefits of fiber optic sensing.
The OTG-M Series is made with an optical fiber that is industry standard and works with all SCBG signal conditioners from OpSens. This small and dependable fiber optic temperature sensor can be customized for OEM or customer-specific applications and is available with a variety of optical cables and sheath options.
- Outstanding repeatability
- Handy and robust design
- OEM-type and custom version
- EMI/RFI/RFI and microwave immune
- Intrinsically safe
- EM, RF, and microwave environments
- Dynamic temperature monitoring
- Applications that require small size sensors
- High voltage environments
- Affordable disposable sensor

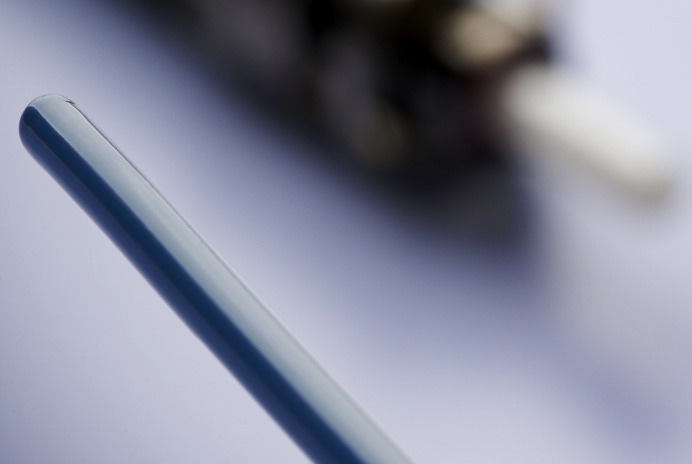

Fiber Optic Temperature Sensor
Image Credit: OpSens Medical
Source: OpSens Medical
||≤ 35 ms
||≤ 50 ms
||< 100 ms
||< 200 ms
||< 225 ms
||< 500 ms
|SENSOR TIP MATERIAL (TUBE)
|TEMPERATURE OPERATING AND CALIBRATED RANGE
||-40 °C to +250 °C (other ranges available upon request)
||± 0.8 °C or better for other temperature range
|OPERATING HUMIDITY RANGE
||1.5 meters standard (other lengths available)
||LCA, ST, standard
|SIGNAL CONDITIONER COMPATIBILITY
||All OpSens GaAs (SCBG) signal conditioners
