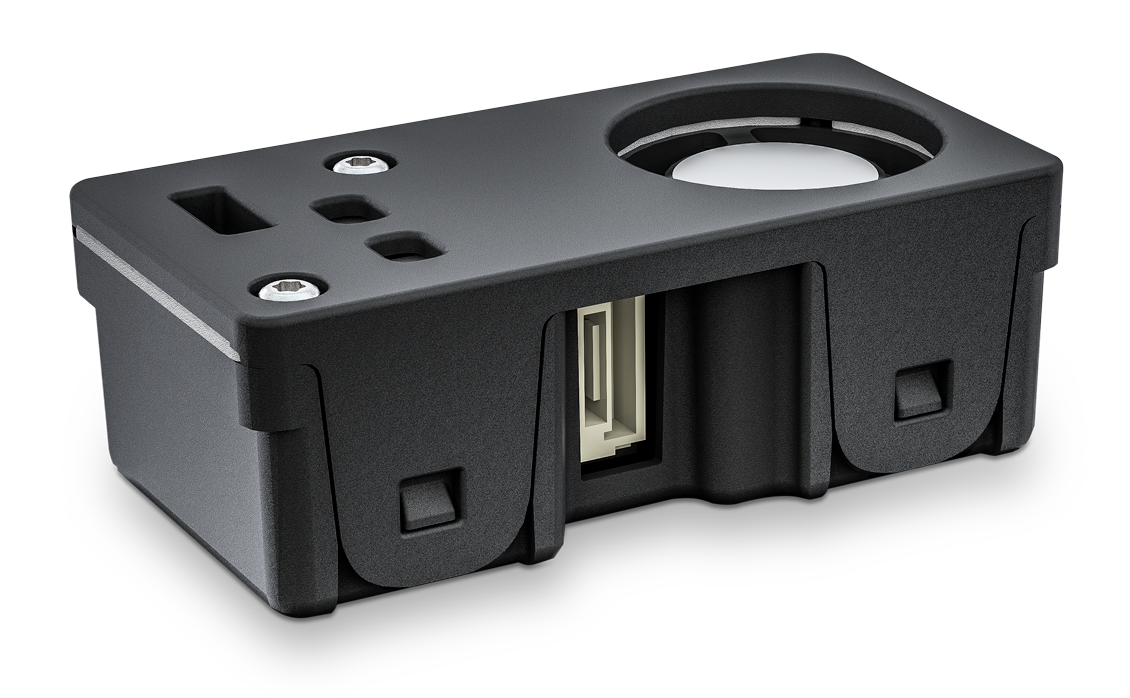

With the portable and effective SEN6x sensor platform, experience the air quality sensing of the future. It can monitor up to nine environmental parameters (PM1, PM2.5, PM4, PM10, RH, T, VOC Index, NOx Index, CO2, or HCHO) and integrates several sensors in a never-before-seen form factor. The creative design makes modification possible, lowers costs, and makes integration easier.
The SPS6x, a brand-new, miniature MEMS-based particulate matter sensor component, serves as the brain of the SEN6x.
Specification
Source: Sensirion AG
| Particulate matter |
| Mass concentration range |
0 - 1000 μg/m³ |
| Temperature |
| Typ. temperature accuracy |
0.45 °C |
| Humidity |
| Typ. relative humidity accuracy |
4.5% RH |
| CO₂ |
| Measurement range |
0 - 40,000 ppm |
| Accuracy: Baseline |
±50 ppm |
| VOC |
| Sensor output |
0-500 VOC Index |
| Formaldehyde |
| Measurement range |
0 - 1000 ppb |
| Accuracy |
±20% m.v. |
| Generic |
| Interfaces |
I²C |
| Size (LxWxH) |
54 x 24 x 22 mm³ |
