Data centres operate quietly behind the scenes, underpinning almost every aspect of modern digital life. These facilities handle immense volumes of data, from hosting virtual clouds to enabling cryptocurrency transactions and artificial intelligence.
This critical infrastructure depends on meticulous environmental control to function efficiently and reliably, with HVAC systems essential to maintaining smooth operation in demanding computing environments.
Sensors integrated into data center HVAC systems are responsible for more than monitoring temperature. They provide essential real-time insights into airflow, pressure, humidity, and air quality, supporting system operators to make the data-driven decisions required to continually optimize performance.
As server farms expand in scale and complexity, sensors are becoming vital to maintaining efficiency, reliability, and compliance with evolving standards.
This article looks at how sensors address the challenges of data center environmental monitoring while accommodating ever-evolving regulations.
Data Center Growth is Transforming HVAC Requirements
Data center demand has exploded due to the rise of cryptocurrency mining, AI, and digital data consumption. Server farm construction hit 287.6 megawatts in the first half of 2023, a 70 % increase over the previous year. The server farm market is projected to grow from $301.8 billion in 2022 to $622.4 billion by 2030.
This growth brings challenges, notably:
- Energy consumption challenges, with server farms consuming vast amounts of electricity, significantly contributing to carbon emissions.
- Sustainability challenges, with operators required to carefully balance performance with environmental impact.
- Reliability challenges, with downtime potentially leading to data loss and millions of dollars in potential income lost.
The integration of advanced HVAC systems with powerful sensor technology is key to addressing these challenges.
The Importance of Data Center Environmental Monitoring
Data center HVAC systems serve a range of purposes, but the accurate control of temperature has always been their main focus. While temperature requirements in homes or offices may vary depending on different factors, IT hubs require consistent and precise cooling throughout the facility at all times.
Efficient HVAC systems in these settings must achieve three key objectives.
Protecting Equipment and Budgets
Overheating causes damage to sensitive hardware, which often leads to expensive repairs. Proper cooling both minimizes these risks and lowers energy costs.
Ensuring Operational Efficiency
It is possible to extend equipment lifespan, lower energy use, and minimize environmental impact through the maintenance of optimal temperature and humidity levels.
Maximizing Uptime and Reliability
Reliable HVAC systems are essential for stable conditions, reducing the risk of costly downtime.
Improving HVAC Efficiency with Advanced Sensor Technology
Far more advanced than conventional heating and cooling systems, HVAC systems must use an array of sensors to monitor and manage environmental conditions, including temperature, air quality, humidity, and pressure. These diverse metrics must be effectively managed to maintain optimal functionality.
Key sensors employed in data center HVAC design include:
Source: Amphenol Advanced Sensors
| Sensor Type |
Function |
Purpose/Benefit |
| Humidity sensors |
Prevent condensation (caused by high humidity) and static electricity (caused by low humidity) |
Protect sensitive equipment from moisture damage and static-related malfunctions |
| Differential pressure sensors |
Monitor airflow by detecting pressure differences |
Ensure consistent cooling and prevent blockages in airflow systems |
| Indoor air quality sensors |
Measure pollutants like CO2 and volatile organic compounds |
Protect equipment and personnel from harmful pollutants |
| Dew point sensors |
Monitor moisture levels in liquid cooling systems |
Avoid condensation buildup that can damage equipment or reduce cooling efficiency |
| Underfloor leak detection sensors |
Identify water leaks early |
Minimize damage caused by water leakage in underfloor cooling systems |
| Fire suppression sensors |
Detect smoke to activate fire suppression systems |
Protect critical infrastructure by preventing fire damage |
| Carbon monoxide (CO) sensors |
Monitor CO levels |
Ensure a safe environment for personnel |
| Temperature sensors |
Provide real-time data on ambient, surface, and system temperatures |
Enable precise climate control |
Critical Design Considerations for Data Center HVAC Systems
HVAC systems designed for use in server farms must consider more than just the installation of the cooling unit. Designing such systems requires a tailored approach based on the facility’s energy requirements, size, and equipment density. Key factors include:
- Space: With larger facilities requiring robust cooling solutions while smaller facilities risk overcooling from excessive HVAC output.
- Equipment heat output: With cooling systems able to match the heat load of high-density equipment layouts, they can generate significant heat.
- Energy efficiency: Inefficient systems can result in large carbon footprints and higher operational costs.
- Human occupancy: Where server farms may have limited staff, it will be necessary to maintain separate cooling in small office areas to ensure comfort.
Meeting these demands typically involves partnering with experienced sensor technology providers and HVAC manufacturers and working with experts who can help ensure optimal performance and reliability by tailoring solutions to the facility’s distinct needs.
The Evolving Landscape of Cooling Technologies
Conventional HVAC systems can no longer accommodate the strict demands of high-density IT hubs.
New cooling methods, combined with advanced sensor technology, are transforming how large data facilities manage heat. They show particular promise in ensuring sustainable, reliable cooling as equipment density and performance demands continue to increase.
Immersion Cooling
This cooling method involves submerging servers in a thermally conductive liquid that absorbs heat directly. The process relies on accurate pressure, flow, and temperature sensors for monitoring.
Custom Air Handlers
These systems use direct expansion cooling and cooling towers for efficient heat dissipation. Temperature, humidity, and air quality sensors ensure optimal performance.
Fan Arrays with Liquid Chillers
These systems use fans to circulate cooled air, combining air and liquid cooling. These systems rely on sensors able to monitor airflow, vibration, and power usage to ensure efficiency.

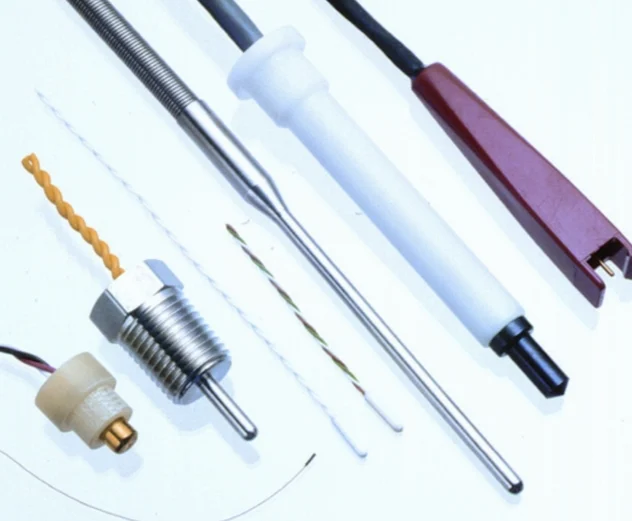

Image Credit: Amphenol Advanced Sensors
The Role of Sensor Manufacturers in Computing Center Environmental Monitoring
Effective HVAC design relies on expert integration of sensor technology. Working in partnership with experienced sensor manufacturers ensures:
- Tailored solutions: With customized HVAC systems to meet each data center’s unique needs.
- Improved performance: With fine-tuning enabled via real-time data.
- Cost savings: With downtime and maintenance reduced due to early detection of inefficiencies or failures.

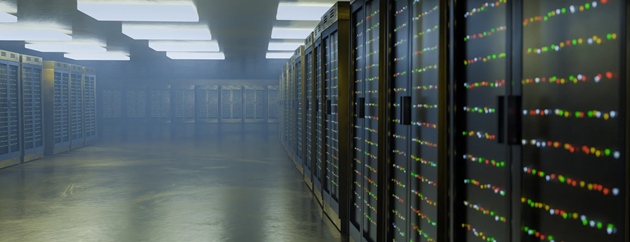

Image Credit: Amphenol Advanced Sensors
Ensuring Long-Term Reliability and Sustainability
Computing centers continue to grow in complexity and scale, requiring ever-evolving HVAC systems that can consistently meet higher demands.
Advanced sensor technology enables these facilities to deliver exceptional reliability, efficiency, and sustainability. These developments support the continued growth of the digital age, protecting critical infrastructure and reducing its environmental impact.
The Impact of Poor Temperature Management
Servers in enterprise-level data facilities generate significant heat as they operate. This heat accelerates wear on equipment if left unchecked, leading to:
- Shortened lifespan: With rapid hardware degradation leading to the need for costly replacements.
- Increased downtime: With the risk of automatic shutdowns disrupting operations and limiting revenue streams.
- Energy inefficiencies: With wasted energy and inflated costs stemming from excessive cooling.
Conversely, overly low temperatures can cause condensation, reduce cooling efficiency, and risk short circuits or corrosion. A balance between the two is needed, a challenge that temperature sensors can meet.
Data Center Temperature Sensors
Temperature sensors function as the eyes and ears of the climate control system in a server farm, offering vital real-time insight into thermal conditions. These sensors are available in a range of types, each tailored to specific applications:
- Thermistors are widely recognized for their sensitivity and rapid response, making them ideal for monitoring localized temperatures in areas such as server racks.
- Semiconductor-based sensors are versatile and can be easily integrated with HVAC systems. Their digital outputs enable seamless data collection.
- Precision resistance thermometers offer high accuracy and stability over a wide range, making them well-suited to environments requiring precise temperature control.
Selecting the most suitable sensor involves a range of considerations, including response time, precision, and compatibility with existing HVAC systems.
Key Design Considerations for Sensor Systems
The effective deployment of temperature sensors is just as important as choosing the best sensor. For example, insufficient sensors or poor placement can lead to inaccurate readings, inefficient cooling, and ultimately, equipment failures.
There are four key factors in the design of a sensor system.
1. Sensor Placement
Strategic sensor placement is key to ensuring comprehensive temperature monitoring. Key locations include:
- Elevation-based placement, with sensors placed at varying heights to detect vertical temperature gradients.
- Airflow monitoring, with sensors placed near cooling coils, intake, and exhaust points to track the effectiveness of air circulation.
- Fluid temperature monitoring, with sensors ensuring liquid cooling efficiency in hydronic cooling systems.
- Proximity to equipment, with sensors placed near server racks to monitor heat generation. This is key to preventing localized overheating.
2. Space and Dead Air Monitoring
The size and layout of IT hubs dictate the number of sensors required. Monitoring dead air spaces with restricted airflow can prevent hot spots and maintain consistent temperatures.
3. Data Center Sensor Accuracy and Reliability
High-quality IT hub sensors can provide precise readings, typically within fractions of a degree. This level of accuracy is essential because even small fluctuations can have a considerable impact on equipment performance.
Reliable sensors also help to ensure 24/7 operation by minimizing maintenance requirements and downtime.
4. HVAC System Integration
Most HVAC systems rely on sensor feedback to effectively adjust cooling and airflow. Wireless sensors allow flexible placement and remove wiring constraints, helping to streamline integration.
The Importance of Humidity Control in Server Farm Environmental Monitoring
Excessive moisture increases the likelihood of condensation and leads to corrosion on metal components, potentially resulting in short circuits and even equipment failure.
These factors mean that humidity is a key environmental factor in data centers, with improper levels of humidity severely affecting sensitive electronics. Excess moisture or humidity in server farms can result in potentially expensive downtime, data loss, and equipment damage.
A proper understanding of the challenges associated with humidity and deployment of advanced control strategies is necessary to maintain operational efficiency.
Equipment Performance
Excessive moisture resulting from high humidity can cause condensation on sensitive components, potentially resulting in malfunctions and even permanent damage. This can also lead to corrosion, a particular issue for metal parts in servers and networking hardware.
Static Electricity
Low humidity increases the risk of electrostatic discharge, with the potential to silently damage electronics. Just a single case of static discharge can compromise vital equipment.
Condensation and Corrosion
Excessive moisture leads to corrosion on metal components, increasing the chance of condensation, short circuits, and equipment failure.
Key Metrics for Measuring Humidity
Accurately measuring humidity helps computing centers maintain optimal environmental conditions. Typical metrics include:
Source: Amphenol Advanced Sensors
| Metric |
Description |
Use/Benefit |
| Relative humidity (RH) |
Measures the percentage of moisture in the air relative to its capacity to hold water at a given temperature |
Commonly used, but RH can fluctuate with temperature changes, requiring careful monitoring for precision |
| Dew point (DP) |
Indicates the temperature at which air becomes saturated, leading to condensation |
Preventing moisture accumulation on sensitive equipment and ensuring operational stability |
| Wet bulb temperature |
Combines heat and humidity to reflect the lowest temperature air can reach through evaporation |
Assessing moisture movement (e.g., exfiltration) and identifying condensation risks |
| Water vapor pressure |
Measures the mass of water vapor in the air, independent of temperature |
An additional layer of understanding for precise humidity control in sensitive environments |
Sources of Moisture in Server Farms
Humidity in data centers typically originates from several different sources:
- Outside air, with improperly conditioned air introduced via HVAC systems, potentially disrupting environmental stability.
- Human activity, with staff working within the facility contributing to moisture. Careful monitoring is required to offset these impacts.
- Liquid cooling systems risk inadvertently introducing moisture via leaks or condensation. These must be meticulously controlled.
Maintaining a balanced indoor environment requires understanding and carefully managing these sources.
Image Credit: Amphenol Advanced Sensors
Humidity Control Strategies Using Sensor Technology
Contemporary computing centers are dependent on advanced sensor technology that enables them to monitor and manage humidity levels in real time. These systems are closely integrated with HVAC setups, affording their users precision control and rapid adjustments as required.
Two types of humidity sensors are most commonly found in server farm applications.
Capacitive Sensors
Capacitive sensors detect changes in electrical capacitance triggered by fluctuations in humidity. These types of sensors offer:
- High accuracy and stability, making them ideal for long-term monitoring with minimal drift.
- Rapid response times, which are key to mitigating static risks or preventing condensation.
- Durability, allowing them to deliver reliable performance while withstanding extreme conditions.
Resistive Sensors
Resistive sensors measure changes in electrical resistance in response to moisture, allowing them to provide reliable readings. Capacitive sensors tend to outperform resistive sensors in terms of accuracy and durability, however.
The Relationship Between Data Center Temperature and Humidity
Temperature sensors and humidity sensors complement one another, each providing vital data for climate control. Hotter air holds more moisture, meaning that temperature fluctuations directly impact relative humidity levels.
HVAC systems can better adjust cooling processes to maintain a stable environment by leveraging accurate temperature monitoring.
The Impact of Airflow and Pressure on Humidity Control
Effective humidity management is also closely linked to airflow and pressure control. Proper air circulation helps to minimize moisture accumulation and condensation risks, while appropriate pressure management helps maintain environmental stability by allowing air to flow correctly.
Positive Pressure for Moisture Prevention
Maintaining slightly higher internal pressure can prevent outside air (and its moisture and contaminants) from entering the facility. External air often contains contaminants and moisture, so this ‘clean room’ approach ensures that only properly conditioned air can circulate within IT hubs.
Differential Pressure Monitoring
Tracking pressure differences across HVAC components, like ducts and filters, can help identify blockages or inefficiencies more easily. This monitoring helps ensure optimal airflow and prevents the formation of hot or humid air pockets.
Advanced Pressure Sensors for Data Centers
Pressure sensors offer the feedback required to maintain environmental stability and balanced airflow. Common types of pressure sensors include:
- Low static pressure sensors: These sensors are designed for high sensitivity, allowing them to detect minor changes in pressure and enabling immediate adjustments.
- Differential pressure sensors: These sensors monitor airflow across ducts or filters, identifying obstructions that could disrupt climate control.
The Importance of Data Center Design Standards
More than simple guidelines, data center design standards are critical to ensuring efficient, safe, and compliant operations.
Source: Amphenol Advanced Sensors
| Focus Area |
Description |
Benefits |
| Energy & environmental impact |
Server farms consume significant electricity, contributing to carbon emissions and resource depletion. Design standards aim to minimize energy use and environmental impact |
Reduced carbon footprint, sustainable resource use, and lower operational energy costs |
| Safety |
IT hubs house critical infrastructure vulnerable to fires, electrical hazards, and leaks. Standards emphasize preventive measures like fire detection, electrical safety, and environmental monitoring |
Protection of critical equipment, minimized risk of disasters, and enhanced safety for personnel |
| Reliability |
Unplanned downtime can cause financial losses, reputational damage, and data loss. Standards ensure redundancy, robust infrastructure, and reliable cooling systems |
Improved uptime, operational continuity, and protection against catastrophic failures |
| Efficiency |
Efficiency is achieved by optimizing energy use, employing advanced cooling systems, and using sensor technology |
Lower operational costs, improved performance, and reduced energy waste |
| Regulatory compliance |
Adherence to local, national, and industry-specific regulations is mandatory for computing center operators |
Avoidance of fines and legal issues, improved reputation, and alignment with sustainability goals |
Image Credit: Amphenol Advanced Sensors
Key Data Center Regulations
Various standards and regulations govern enterprise-level data facilities. These essential standards ensure reliability, efficiency, and safety in computing center operations, from power distribution and cooling systems to scalability and fire protection.
The table below highlights some of the most influential standards, as well as showing how sensor technology supports compliance in these areas.
Source: Amphenol Advanced Sensors
| Standard/Regulation |
Focus Area |
Role of Sensors |
| ASHRAE TC 9.9 |
Optimal temperature and humidity ranges to prevent equipment failure and reduce energy waste. |
Emphasizes placement of temperature sensors (top, middle, bottom of racks) and humidity sensors for improved cooling accuracy. |
| ASHRAE 90.4 |
Energy-efficient strategies such as airflow containment and liquid cooling. |
Uses real-time temperature, airflow, and humidity sensors for dynamic monitoring and energy optimization. |
| NFPA 75 |
Fire protection, ensuring uptime and preventing catastrophic losses. |
Mandates smoke detectors and temperature sensors to detect fire risks early. |
| NFPA 76 |
Fire safety in telecommunications and data center facilities. |
Requires temperature and humidity sensors to monitor critical conditions and prevent fire hazards. |
| ANSI/TIA-942 |
Efficient, reliable, and scalable data center infrastructure. |
Uses temperature and airflow sensors for fault tolerance, PUE compliance, and critical environmental monitoring. Supports real-time monitoring for scalability. |
| California Title 24 |
Energy efficiency regulations for HVAC and lighting. |
Uses airflow sensors for cooling optimization, temperature and humidity sensors for efficiency, and real-time data for dynamic HVAC adjustments. |
| FEMP best practices |
Energy-efficient federal computing centers. |
Employs temperature, humidity, and airflow sensors for optimal cooling, dynamic power management, and compliance with FEMP sustainability goals. |
| EN 50600 |
Sustainability and efficiency in European IT hubs. |
Uses sensors for energy efficiency, reliability, and modular cooling systems. Tracks real-time carbon footprints and supports scalability. |
| ISO 14001 |
Sustainability and resource optimization in operations. |
Uses sensors to monitor energy efficiency, emissions, and water consumption while enabling continuous environmental improvements. |
Achieving Excellence Through Sensor Integration
The future performance of data centres will depend on maintaining precise control over key environmental conditions. This control is made possible by advanced sensors, which are the backbone of server farm HVAC systems, operating far beyond simple monitoring tools.
Advanced sensors ensure that working parameters remain within safe ranges, safeguarding facilities’ operational integrity by reducing energy waste, preventing equipment failures, and supporting sustainability.
Demand for high-performing computing centers continues to grow, requiring ongoing investment in state-of-the-art sensor technology. This investment is now essential, and partnering with experienced sensor manufacturers is necessary for designers and engineers seeking to create smarter, more efficient environments.
Acknowledgments
Produced from materials originally authored by Amphenol Advanced Sensors.
This information has been sourced, reviewed and adapted from materials provided by Amphenol Advanced Sensors.
For more information on this source, please visit Amphenol Advanced Sensors.
