The OTG-M Series fiber optic temperature sensors from OpSens (OTG-M170. OTG-M220. OTG-M360. OTG-M420. OTG-M600. OTG-MPK5 and OTG-MPKB) provide exceptional performance in the harshest and most constrained conditions.
The OTG-M Series sensors make use of the well-established technique that is based on the temperature-dependent bandgap of gallium arsinide (GaAs) crystal as the temperature transduction mechanism. The presence of a microscale GaAs crystal situated at the tip of the optical fiber makes it appropriate for tip measurement applications.
The variation between each model of the OTG-M series is the response time and the diameter of the sensor (OD).
The OTG-M Series has been integrated with OpSens' SCBG (Semiconductor Bandgap) signal conditioning technology and with the inherent benefits of fiber optic. It gives unparalleled reliability and repeatability in the majority of unfavorable conditions like high levels of RE, EM, MR, and microwave field surroundings.
The OTG-M Series sensors are created with first-in-class optical fiber and are consistent with all OpSens SCBG signal conditioners. This small and strong fiber optic temperature sensor comes with different optical cables and sheath options and is tailored to customer-specific applications or for OEM-type applications.
Key Features
- High precision
- Comes with OEM-type and custom version
- Has a small and strong design
- Intrinsically safe
- EMI/RFI/RFI and microwave immune
Applications
- Dynamic temperature monitoring
- Applications that need small sensors
- Low cost disposable sensor
- High voltage surroundings
- EM, RF, and microwave surroundings

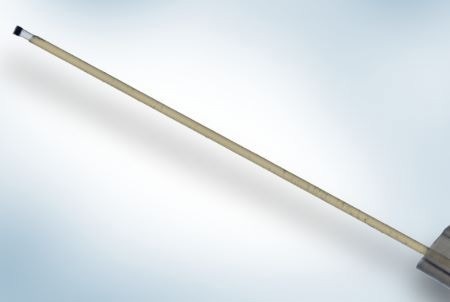

OTG-M (M170-M220-M360-M420-M600-MPK5-MPK8)
Fiber Optic Temperature Sensor
Image Credit: Opsens Inc
Specifications
Source: Opsens Inc
| SENSOR MODEL |
OTG-M170 |
OTG-M220 |
OTG-M360 |
OTG-M420 |
OTG-M600 |
OTG-MPK5 |
OTG-MPK8 |
| RESPONSE TIME |
≤ 35 ms |
≤ 50 ms |
< 100 ms |
< 200 ms |
200 ms |
< 225 ms |
< 500 ms |
| SENSOR DIAMETER |
0.170 mm |
0.220 mm |
0.360 mm |
0.420 mm |
0.600 mm |
0.510 mm |
0.810 mm |
| SENSOR TIP MATERIAL (TUBE) |
Bare fiber |
Polyimide |
Glass |
Polyimide |
Polyimide |
PEEK |
PEEK |
| TEMPERATURE OPERATING AND CALIBRATED RANGE |
-40 °C to +250 °C (other ranges available upon request) |
| ACCURACY |
± 0.8 °C or better for other temperature range |
| OPERATING HUMIDITY RANGE |
0-100 % |
| EMI/RFI SUSCEPTIBILITY |
Complete immunity |
| CALIBRATION |
NIST traceable |
| CABLE LENGTH |
1.5 meters standard (other lengths available) |
| OPTICAL CONNECTOR |
LCA, ST, standard |
| CABLE SHEATHING |
Teflon™ |
| SIGNAL CONDITIONER COMPATIBILITY |
All Opsens Solutions’ GaAs (SCBG) signal conditioners |
