The OTG-M Series (OTG-M170. OTG-M220. OTG-M360. OTG-M420. OTG-M600. OTG-MPK5 8 OTG-MPK8) fiber optic temperature sensors from OpSens provide superior performance in challenging and microscale environments.
The OTG-M Series sensors utilize a well-proven method, which relies on the temperature-dependent bandgap of GaAs crystal as the temperature transduction mechanism. The small sensing GaAs crystal, which is adhered at the tip of the optical fiber, makes it ideal for performing tip measurement applications.
The response time, material selection, and the diameter of the sensor (OD) are what sets each model of the OTG-M series apart from one another.
Integrated with OpSens SCBG (Semiconductor Bandgap) signal conditioning technology and with the characteristic benefits of fiber optic, the OTG-M Series provides unparalleled repeatability and reliability in the majority of adverse conditions like high levels of EM, RF, MR, and microwave field surroundings.
The OTG-M Series are made using the industry-standard optical fiber and is also compatible with all OpSens SCBG signal conditioners. This strong and compact fiber-optic temperature sensor comes with various optical cables and sheath choices, and it can also be tailored for OEM-type applications or customer-specific applications.
Key Features
- Superb precision
- Intrinsically safe
- Repeatability is outstanding
- Custom and OEM-style version
- RFI/RFI/EMI and microwave immune
- Compact and strong design
Applications
- Dynamic temperature monitoring
- High voltage environments
- Applications that need small-size sensors
- RF, EM, and microwave surroundings
- Low cost disposable sensor

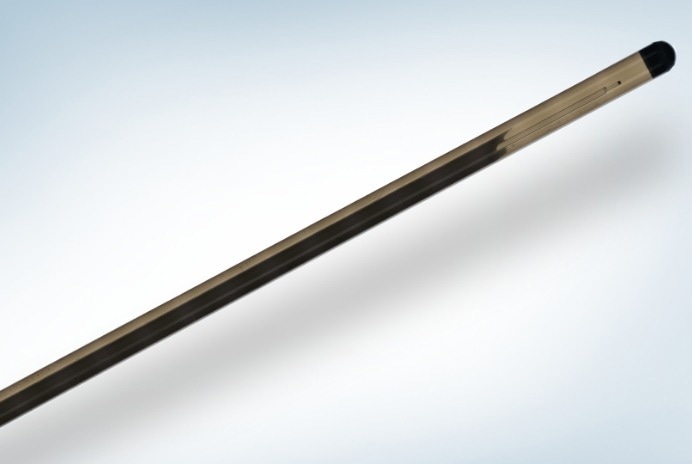

Fiber Optic Temperature Sensor
Image Credit: Opsens Medical
Specifications
Source: Opsens Medical
| SENSOR MODEL |
OTG-M170 |
OTG-M220 |
OTG-M360 |
OTG-M420 |
OTG-M600 |
OTG-MPK5 |
OTG-MPK8 |
| RESPONSE TIME |
≤ 35 ms |
≤ 50 ms |
< 100 ms |
< 200 ms |
200 ms |
< 225 ms |
< 500 ms |
| SENSOR DIAMETER |
0.170 mm |
0.220 mm |
0.360 mm |
0.420 mm |
0.600 mm |
0.510 mm |
0.810 mm |
| SENSOR TIP MATERIAL (TUBE) |
Bare fiber |
Polyimide |
Glass |
Polyimide |
Polyimide |
PEEK |
PEEK |
| TEMPERATURE OPERATING AND CALIBRATED RANGE |
-40 °C to +250 °C (other ranges available upon request) |
| ACCURACY |
± 0.8 °C or better for other temperature range |
| OPERATING HUMIDITY RANGE |
0-100 % |
| EMI/RFI SUSCEPTIBILITY |
Complete immunity |
| CALIBRATION |
NIST traceable |
| CABLE LENGTH |
1.5 meters standard (other lengths available) |
| OPTICAL CONNECTOR |
LCA, ST, standard |
| CABLE SHEATHING |
Teflon™ |
| SIGNAL CONDITIONER COMPATIBILITY |
All Opsens Solutions’ GaAs (SCBG) signal conditioners |
