Why is Pressure and Flow Measurement Crucial in HVAC Systems?

Heating, ventilation, and air conditioning (HVAC) systems are essential for maintaining a comfortable indoor environment. These systems circulate air throughout the structures, ensuring the temperature, humidity, and air quality reach the required levels.

HVAC systems are commonly used in schools, markets, data centers, subways, and other building structures. To ensure that HVAC systems run efficiently, several parameters, such as pressure and flow rate, must be monitored and controlled.

Why are Pressure and Flow Measurements Important in HVAC Systems?

There are numerous critical parameters in an HVAC system, with pressure and flow measurement being among the most important. Pressure sensors are essential for monitoring air and fluid pressures to ensure peak performance and safety.

Flow meters are essential for measuring airflow rates, water flow rates, and fluid velocities, allowing precise control over heating, cooling, and ventilation processes. Both sensors help to improve energy efficiency and maintain indoor comfort levels in HVAC applications.

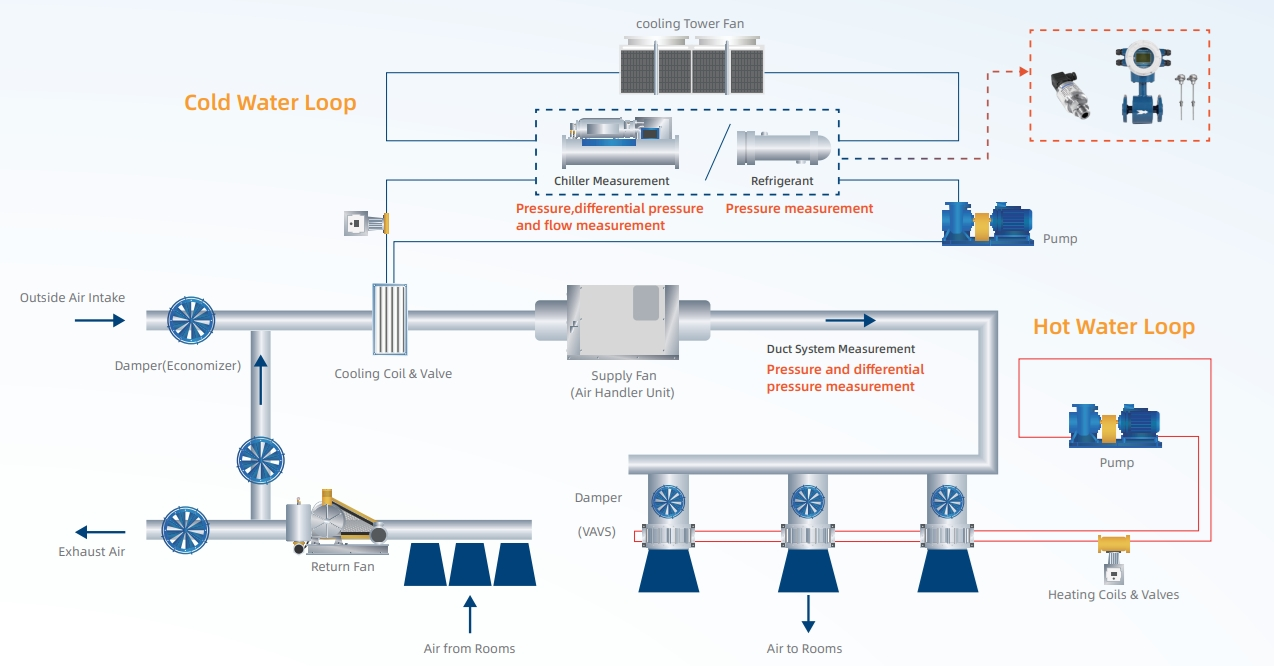

Why is Pressure and Flow Measurement Crucial in HVAC Systems?

Image Credit: Micro Sensor Co., Ltd

Measurement and Control in HVAC Systems

HVAC systems contain numerous systems that work together, including the water system, air system, energy system, and cooling system. Micro Sensor provides instruments for water, energy, and cooling systems that improve HVAC system efficiency and performance.

Pressure Measurement in Refrigerant

In HVAC systems, measuring refrigerant pressure is crucial. Pressure transmitters monitor refrigerant pressure to ensure it remains within acceptable levels, preventing leaks and system malfunctions. Accurate pressure measurement improves system efficiency and ensures safety by recognizing possible problems early.

Not all cooling and heating systems use refrigerant; chillers also perform well.

Pressure and Flow Measurements in the Chiller

Pressure transmitters in HVAC chiller systems ensure that the refrigerant functions safely, while flow meters equipped with temperature sensors calculate heat exchange efficiency. Accurate measurements improve system dependability and efficiency while preventing future breakdowns.

Pressure Measurement in Air Ducts

In air duct systems, pressure measurement is critical for ensuring optimal airflow, and low-range pressure must be monitored.

Pressure transmitters with a short range monitor air pressure to guarantee efficient ventilation and optimum air dispersion. Accurate pressure data aids in the detection of blockages and leaks while also maintaining system balance, resulting in a comfortable and safe indoor environment.

Related Products

Low Range Differential Pressure Transmitter

  • Pressure range: 0~0.01 bar / 0~0.025 bar / 0~0.07 bar
  • Accuracy: ≤1 % FS
  • Output: 4~20 mADC (2-wire)

Electromagnetic Heat Flowmeter MFE600H

  • Diameter: DN25 ~ DN400
  • Power Consumption: ≤5 W
  • Environmental Temp.: -20 ℃ ~60 ℃

Micro Sensor is a global supplier of industrial instruments for pressure, level, flow, and temperature monitoring. It offers a variety of product solutions and personalized experiences to match each customer's specific needs. Micro Sensor welcomes the opportunity to assist you with your HVAC difficulties.

logo

This information has been sourced, reviewed and adapted from materials provided by Micro Sensor Co., Ltd.

For more information on this source, please visit Micro Sensor Co., Ltd.
