The variety of food products available today is greater than ever. Consistent quality and strict hygiene have been basic requirements for consumers for a long time; by employing VEGA instrumentation, producers can meet these expectations while simplifying their workflows.
Hygienic Down to the Smallest Detail
Food production is a highly sensitive industry that involves costly, complex processes. The stringent requirements placed on production are also reflected in the demands placed on measurement technologies. VEGA’s level and pressure sensors are certified according to current standards for the food and pharmaceutical sectors, including:
- 3-A Sanitary
- ISPE GAMP
- ASME-BPE
- EHEDG
- FDA
Manufactured exclusively from corrosion-free materials, these sensors can be cleaned efficiently, ensuring the reliable removal of microorganisms. Their ‘hygienic by design’ concept is also evident in the sensor surfaces that come into contact with the product. These sensors feature special roughness values below 0.8 µm and are even available electropolished. Seals were dispensed wherever possible. VEGA measuring instruments are also engineered for crucial CIP processes.
One Connection with Many Possibilities

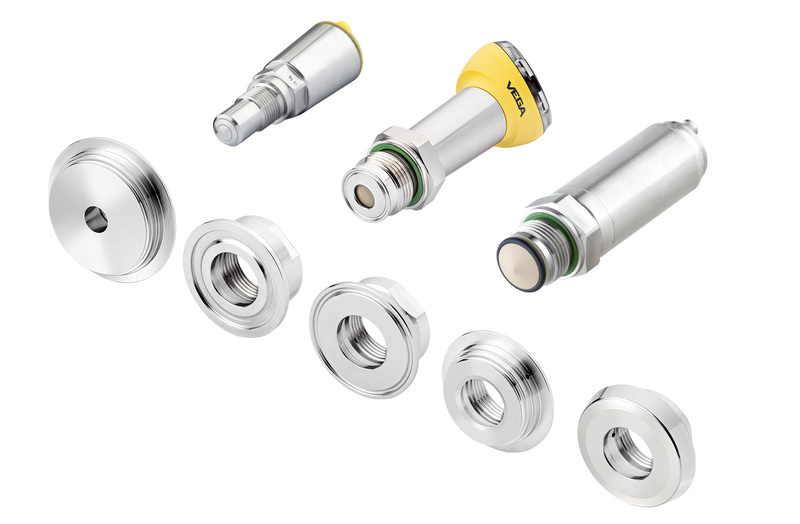

Standardized fittings enable VEGA sensors to be easily integrated into existing manufacturing systems. Hygienic adapters can be added to provide additional versatility while simplifying processes: they are diffusion-tight and highly durable. The adapter system delivers the right solution for every mounting situation.
Image Credit: VEGA Grieshaber KG
A Representative Overview:

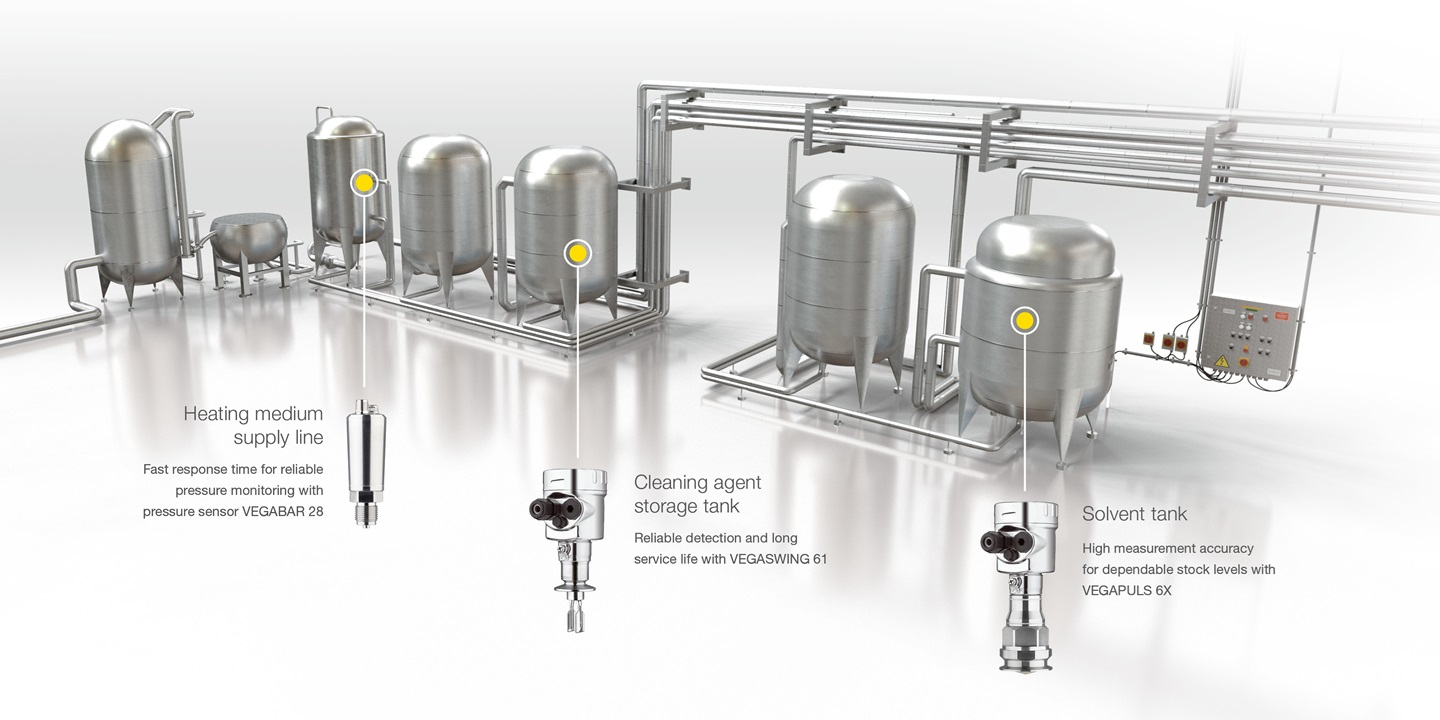

There’s a suitable sensor from VEGA for every application. Image Credit: VEGA Grieshaber KG
Sensors for Level Measurement
VEGAPULS 42
- Simple process data integration via IO-Link
- Ideal for rapid level changes
- An illuminated ring delivers excellent readability, even from a distance
- Maintenance-free operation using 80-GHz radar technology
VEGAPULS 6X
- High precision
- Strong focusing
- Internals, such as agitators, do not affect measurement accuracy
- Reliably measures media with poor reflective properties, such as oily products
Sensors for Limit Level Measurement
VEGASWING 61
- Universally applicable to all liquids
- Owing to its reliable detection capability and extended service life, the sensor is particularly well-suited as overflow and dry-run protection in storage tanks for cleaning agents.
VEGAPOINT
- An optional universal fitting for the hygienic adapter simplifies installation and reduces spare parts inventory.
- Illuminated ring provides excellent readability, even from a distance
Sensors for Measuring Pressure
VEGABAR 28
- Dependable pressure monitoring of gases, vapors, and liquids up to 130 °C
- Advanced CERTEC® ceramic measuring cell
- Optional universal fitting for hygienic adapter streamlines installation and reduces spare parts inventory
Digital Solutions for Easy Monitoring
Measuring points can be difficult to access. To address this, VEGA sensors use Bluetooth technology to enable convenient operation via mobile devices such as smartphones or tablets. The VEGA Tools app enables easy commissioning and configuration.
This information has been sourced, reviewed, and adapted from materials provided by VEGA Grieshaber KG.
For more information on this source, please visit VEGA Grieshaber KG.
