Cable assemblies are no longer only pass/fail products. Modern harnesses may include dozens or even hundreds of conductors, shielding pathways, insulation systems, and termination points. Manual testing of them is time-consuming, labor-intensive, and inherently inconsistent.
Image Credit: Vitrek, LLC

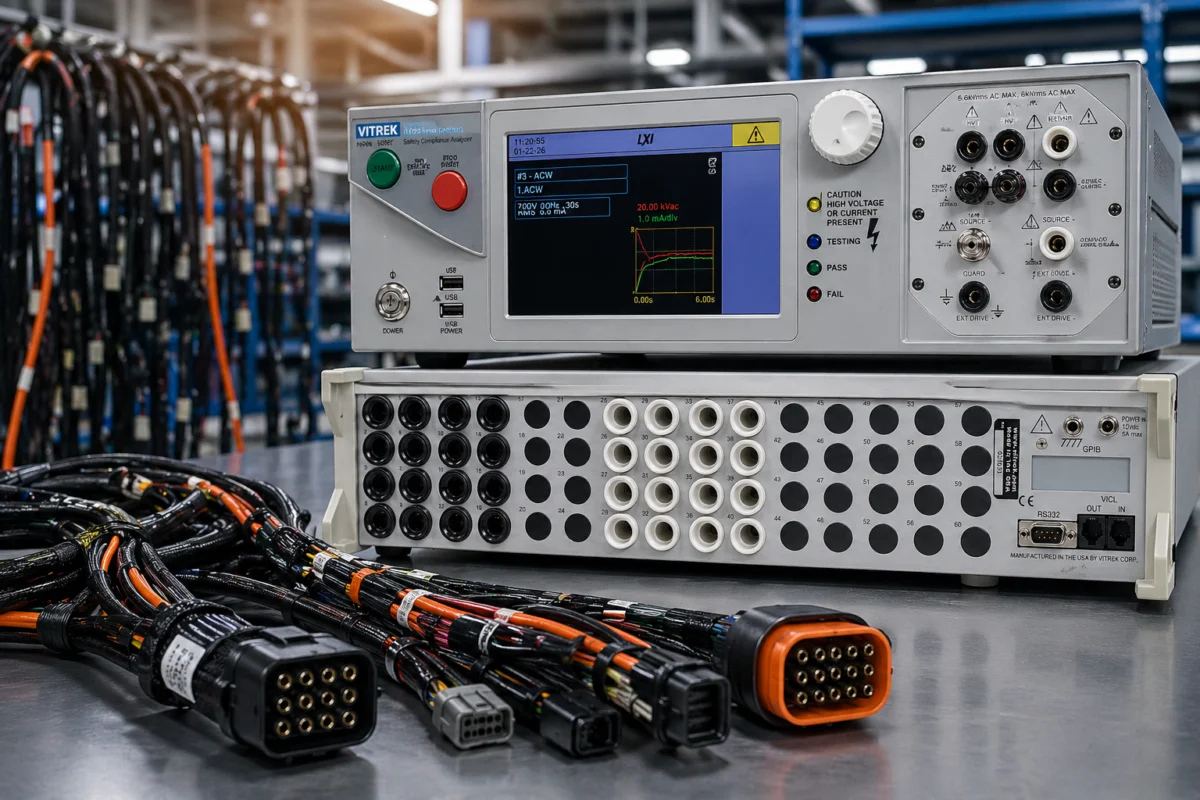

The Vitrek V10X Hipot Tester and Vitrek 964i High Voltage Switching System work together to establish a modern automated platform for testing cable safety and integrity at a faster and more consistent rate.
The Challenge
Manufacturers of advanced cable assemblies are under constant pressure to improve quality while maintaining production speed.
Many products today use large pin-count connectors and complex multi-conductor designs that require access to multiple test sites during a single validation cycle. As assemblies become more sophisticated, manually verifying each conductor becomes more time-consuming, difficult, and error-prone.
At the same time, production environments are facing shorter turnaround times, increased documentation requirements, and more frequent product changes.
Operator variability might lead to variations between shifts or test stations. Traditional methods frequently include manually shifting leads, using unique fixtures for each product, and recording data separately from the testing procedure. This causes bottlenecks and reduces scalability.
V10X Hipot Platform
The Vitrek V10X is designed to modernize electrical safety testing in today's manufacturing environments.
It combines high-voltage capability, an intuitive interface, and automation-ready features to streamline operations. With outputs up to 30 kV AC, high leakage-current resolution, touchscreen-guided setup, barcode workflow support, built-in reporting, and automation interfaces, the platform delivers both performance and convenience.
The system enables accurate dielectric withstand and insulation resistance testing while being easier to configure, faster to run, and better suited to connected production lines.
Typical Workflow
The procedure is designed to be fast and repeatable. An operator scans the product barcode, which loads the appropriate test software.
The 964i then routes conductors in order, while the V10X runs hipot and leakage tests based on the preset recipe. The results are recorded instantly, and an immediate pass/fail report is generated for traceability and production records.
Applications
- EV Cable Assemblies: EV Cable Assemblies ensure safe and reliable high-voltage connections between charging systems, battery packs, and power distribution networks. Cable assemblies must tolerate high voltages, vibration, temperature changes, and repetitive use.
The V10X + 964i enables manufacturers to evaluate charging cables, battery interconnects, and HV harnesses through repeatable dielectric withstand and insulation tests. Automated switching increases throughput while retaining traceability.
- Aerospace Harnesses: Aircraft and defense platforms demand complicated wire harnesses with high pin counts and stringent documentation requirements. Failure is unacceptable, and detailed records are frequently necessary for compliance and consumer acceptance.
The V10X + 964i streamlines complex aircraft assembly testing with automated routing and configurable sequences. Automatic data capturing facilitates quality records and standardized production procedures.
- Medical Cables: Medical devices use specific cables for monitoring, imaging, surgical tools, and therapeutic systems. These assemblies necessitate rigorous safety standards and consistent manufacturing methods.
The V10X + 964i precisely tests patient-connected assemblies and device interconnects for high-voltage and insulation performance. Recipe-based procedures reduce unpredictability while also supporting regulated quality systems.
- Industrial Equipment: Industrial systems require substantial wiring for motors, controllers, robotics, conveyors, and automation equipment. High-volume production and numerous product variants necessitate rapid, consistent testing. The V10X + 964i automates routing and stores test programs, resulting in faster changeovers, less operator dependency, and immediate pass/fail reporting.
- Renewable Energy and Power Systems: Solar inverters, battery storage systems, EV chargers, and power cabinets require reliable high-voltage wiring and insulation. The platform facilitates production testing of cables and assemblies used in energy and power electronics applications, allowing manufacturers to increase output while preserving quality.
- Contract Manufacturing and High-Mix Production: Contract manufacturing and high-mix production involve producing multiple cable types for different clients, each with specific testing requirements. Frequent changeovers might slow down manual processes.
The V10X + 964i allows instant recipe recall via saved programs or barcode workflows, minimizing setup time and promoting efficient high-mix manufacturing.
Conclusion
The V10X and 964i work together to help manufacturers go beyond time-consuming, manual cable testing.
The unified platform provides scalable, automated validation that increases throughput, reduces errors, and supports the documentation demands of modern production applications.
