High-Accuracy Precision Multi-Channel Power Analyzers for Power Measurement

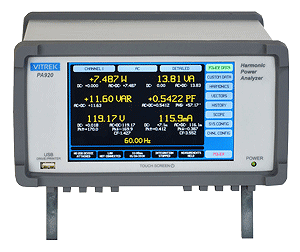

The newest addition to Vitrek’s family of Power Analyzer products is the novel Ultra High Accuracy Vitrek PA920 Precision Harmonic Power Analyzer.

The PA920 is today's most robust, flexible, and accurate power analyzer, providing 0.024% power accuracy. It offers quicker sampling rates, greater harmonic frequency, and bandwidth performance. It is cheap and user-friendly, offering users power analysis options for assessing applications.

The PA920 power analyzers provide expanded power options. The PA920 provides ultra-high 0.024% power accuracy for every channel and enhanced voltage and current self-heating adders over those of other power analyzers.

The PA920 offers easy channel selection for the user while simultaneously providing 100 full precision readings/second and measurement bandwidths to handle 5 MHz waveforms.

Users who require maximum accuracy and performance can choose Vitrek’s PA920 Series Power Analyzers.

  • Ultra-high power accuracy of 0.024% for all channels
  • Quicker sampling rates and bandwidth performance
  • Improved voltage and current self-heating adders
  • Higher harmonic frequencies

Precision Multi-Channel Power Analyzers Series for Power Analysis

Image Credit: Vitrek, LLC

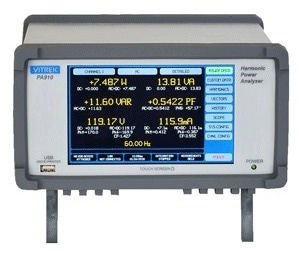

Vitrek PA910 High Accuracy (0.045%) Precision Multi-Channel Power Analyzer

The new High Accuracy (0.045%) Vitrek PA PA910 Precision Harmonic Power Analyzer of Vitrek is one of the latest additions to Vitrek’s family of Power Analyzer products.

The latest PA910 is robust, flexible, and accurate, with 0.045% power precision. These novel products offer quicker sampling rates, higher harmonic frequency, and bandwidth performance, and are cheaper and user-friendly.

The PA910 power analyzers also provide expanded power analysis options. The PA910 provides ultra-high 0.045% power precision for every channel and enhanced voltage and current self-heating adders over those of other power analyzers. The PA910 offers easy channel selection for the user while simultaneously providing 100 full precision readings/second and measurement bandwidths that are enough to handle 5 MHz waveforms.

When reliability, quality, and accuracy are required, select Vitrek’s family of power analyzer products.

  • High power accuracy of 0.045% for every channel
  • Higher harmonic frequencies
  • Faster sampling rates & bandwidth performance
  • Enhanced voltage and current self-heating adders

Precision Multi-Channel Power Analyzers Series for Power Analysis

Image Credit: Vitrek, LLC

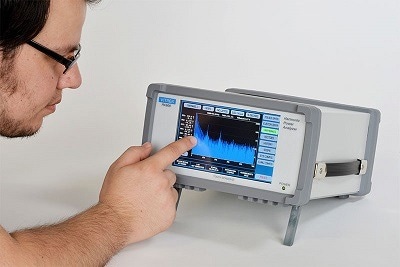

Vitrek PA900 Precision Multi-Channel Power Analyzer

The Vitrek PA900 features an attractive series of precision power measurement capacities with a user-friendly color touchscreen user interface. The precision of the PA900 is world-class—exceeding competing instruments that cost triple the price. Regarding bandwidth and speed—the PA900 excels the charts with 100 full precision readings/second and measurement bandwidths that are enough to handle 5 MHZ waveforms.

The PA900 is ideal for handling tough power, high crest factor loads, and low phase angles. Providing full performance for crest factors as high as 30:1, the PA900 places the benefit of superior power measurement capacity squarely in the palm of users’ hands.

Precision Multi-Channel Power Analyzers Series for Power Analysis

Image Credit: Vitrek, LLC

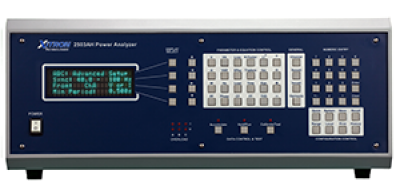

Vitrek XiTRON 2503AH High Performance Power Analyzer

The Vitrek XiTRON Brand High Performance Power Analyzer offers high bandwidth of 500 kHz and normal 0.05% precision. The measurement channels can be independently configured (synchronous or asynchronous), enabling the instrument to be set up for users’ particular needs.

Precision Multi-Channel Power Analyzers Series for Power Analysis

Image Credit: Vitrek, LLC

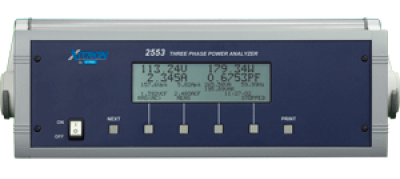

Vitrek’s XiTRON 2553 Three-Phase Power Analyzers

The 2553 Three-Phase Power Analyzer boasts the perfect combination of speed, precision, and user-friendliness in an affordable instrument.

Precision Multi-Channel Power Analyzers Series for Power Analysis

Image Credit: Vitrek, LLC

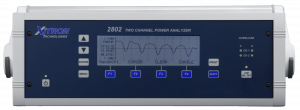

Vitrek’s XiTRON 280x Series Single- and Two-Channel Power Analyzers

Vitrek’s XiTRON 280x Series Advanced Single- and Two-Channel Power Analyzers integrate an unparalleled configuration with a perfect combination of speed, precision, and user-friendliness in a cost-effective instrument.

Precision Multi-Channel Power Analyzers Series for Power Analysis

Image Credit: Vitrek, LLC





Vitrek Power Analyzer Videos



Vitrek Precision Power Analyzers

From medical to appliance industries, Vitrek is the foremost leader in offering power analyzers to different industries. Delivering the best power analysis as well as premier customer service, Vitrek is the users’ choice of the next power analyzer application.

Power Analyzer Overview

Vitrek Power Analyzer Overview

Video Credit: Vitrek, LLC

Power Analyzer User Interface

Vitrek Power Analyzer User Interface

Video Credit: Vitrek, LLC

Power Analyzer Screen Detail

Vitrek Power Analyzer Screen Detail

Video Credit: Vitrek, LLC

Power Analyzer Feature Video

Vitrek Power Analyzer Full Product Overview

Video Credit: Vitrek, LLC

Using VPA’s for Measuring Power Efficiency

Vitrek PA900 Using VPA's for Measuring Power Efficiency

Video Credit: Vitrek, LLC

Measuring Inrush Current and Using the Integrated Oscilloscope

Vitrek PA900, PA920 Measuring Inrush Current and using the integrated oscilloscope

Video Credit: Vitrek, LLC

PA920 Three Phase Power Demo

Vitrek PA900 3 phase power demo

Video Credit: Vitrek, LLC

PA920 Demo for Metrologists

PA920 demo for Metrologists

Video Credit: Vitrek, LLC

PA9xx Custom Screen Editor

Vitrek PA9xx Custom Screen Editor

Video Credit: Vitrek, LLC
