Detecting Laser Beams in Collimators with Quadrant PIN Photodiodes

Quadrant photodiodes from First Sensor are discrete components that commonly feature four optically active areas divided by a small gap. These photodiodes are designed to detect the position of laser beams, in collimators and a number of other adjustment applications.

Special Features

  • Small gap areas
  • High resolution
  • Low dark current
  • High shunt resistance
  • A special version for 1064 nm is also available

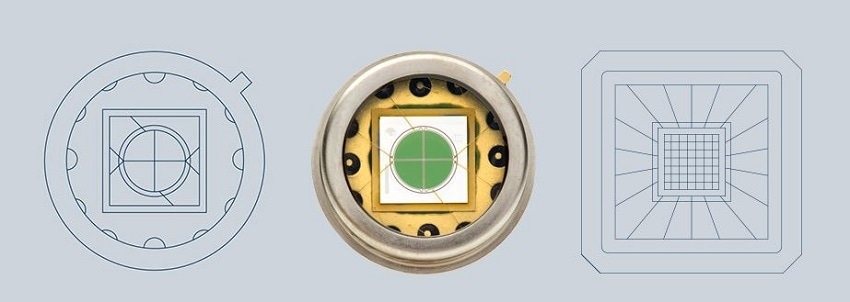

Quadrant PIN Photodiodes

Image Credit: First Sensor

Click Here to Learn More

Series 6 – Low Dark Current

Technical Specifications and PDF Datasheet

Order # Chip Package Active Area Size (mm) / Area (mm²) Gap (µm) Dark current (nA); 10 V Capacitance (pf); 10 V Rise time (ns); 850 nm, 10 V, 50 Ω
501222 QP1-6 TO52 Ø 1.13 / 4x0.25 16 0.1* 1 20
500142 QP50-6 TO8S Ø 7.8 / 4x12.5 42 2.0* 25 40
501276 QP100-6 LCC10G 10x10 / 4x25 50 4.0* 50 40

* per segment

Series Q – for 1064 nm

Technical Specifications and PDF Datasheet

Order # Chip Package Active Area Size (mm) / Area (mm²) Dark current (nA); 150 V Rise time (ns); 1064 nm, 180 V, 50 Ω
501049 QP22-Q TO8S Ø 5.3 / 4×5.7 1.5* 12
501526 QP45-Q TO8Si with heater 6.7×6.7 / 4×10.96 8* 12
501272 QP100-Q LCC10G 10×10 / 4×25 6.5* 12
50079803 QP154-Q TO1032i Ø 14.0 / 4×38.5 10* 12
50131304 QP154-Q TO1081i with heater Ø 14.0 / 4×38.5 10* 12
50131305 QP154-Q TO1081i with heater Ø 14.0 / 4×38.5 10* 12


* per segment
