NuNano Scout 350 HAR AFM Probe

The Scout 350 HAR available from NuNano comes as a pack of 10 silicon AFM probes that operate in AC mode and have a tip with a high aspect ratio. The Scout 350 HAR is best suited for deep trench imaging in air, on stable softer samples, and on hard samples, by making use of non-contact/tapping modes.

The Scout 350 HAR probes also come with an aluminum or gold reflex backside coating or even without a coating.

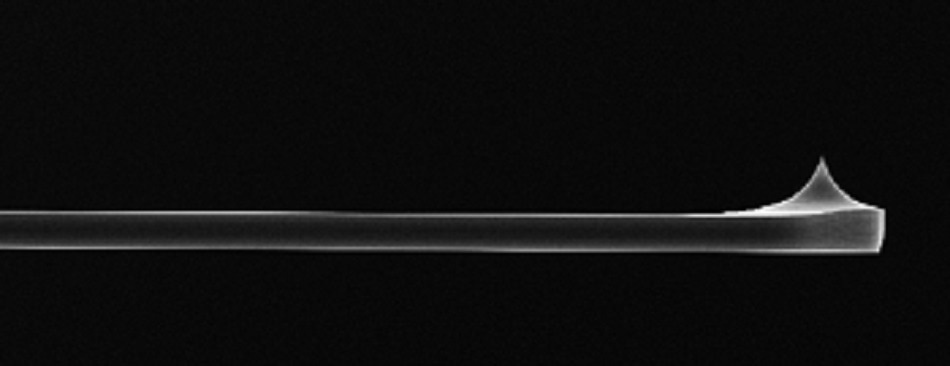

Scout 350 HAR

Image Credit: NuNano

Cantilever Specifications

  • Nominal resonant frequency of 350 kHz, with a range of 300–400 kHz
  • Spring constant of 42 N/m, with a range of 25–70 N/m
  • Resistivity of 0.02 Ωcm, with a range of 0.015–0.025 Ωcm
  • Rectangular in shape
  • Thickness of 4.5 µm, with a range of 4.0–5.0 µm
  • Nominal length of 125 µm, with a range of 123–127 µm
  • Width of 30 µm, with a range of 28–32 µm
  • Made of n-type antimony silicon

Tip Specifications

  • Conical shape
  • Height of 7 µm, with a range of 5–8 µm
  • Radius of 5 nm, falling in the range of <10 nm
  • Set back of 7.5 µm, with a range of 6.5–8.5 µm
  • Resistivity of 0.02 Ωcm, with a range of 0.015–0.025 Ωcm
  • Cone angle of <15° over the last 1 µm of the tip, with a range of 15°–40°
  • Made of n-type antimony silicon

 Optional reflective coatings

  • Aluminium (SCOUT 350 HAR RAl): Frontside/Tip - None, Backside/Reflective - 40 nm Al
  • Gold (SCOUT 350 HAR RAu): Frontside/Tip - None, Backside/Reflective - 5 nm Ti, 50 nm Au
