In the evolving field of utility management, smart metering solutions are becoming essential due to the growing demand for precise metering. Cubic, a leading manufacturer of gas sensors and gas analyzers, has pioneered innovations in smart meters, developing a comprehensive portfolio of ultrasonic gas meters. Cubic ultrasonic meters are widely applied in residential, commercial, and industrial sectors, demonstrating their versatility and effectiveness across various applications. With the strong competitiveness for ultrasonic technology, Cubic offers solutions ranging from gas meter modules to complete smart gas meters.

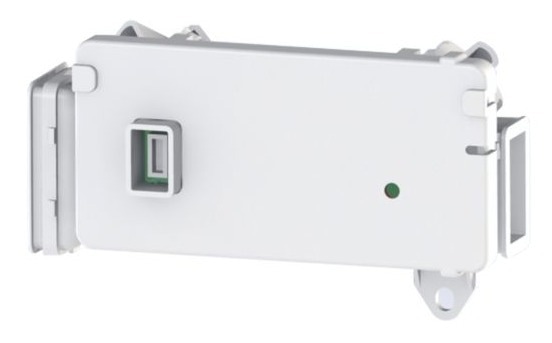

Ultrasonic Gas Meter Module
USM-MN/MP-G1.6/G2.5/G4
Cubic ultrasonic gas meter module, USM-MN/MP series, is a patented V-shaped ultrasonic gas flow sensor module. It features integrated temperature and pressure compensation and achieves Class 1.5 accuracy for natural gas, natural gas with 23% hydrogen, and LPG. The design positions the outlet transducer away from the gas flow direction, preventing contamination and enhancing long-term stability. It can be widely used for assembling residential natural gas meters.
Image Credit: Cubic Sensor and Instrument Co. Ltd

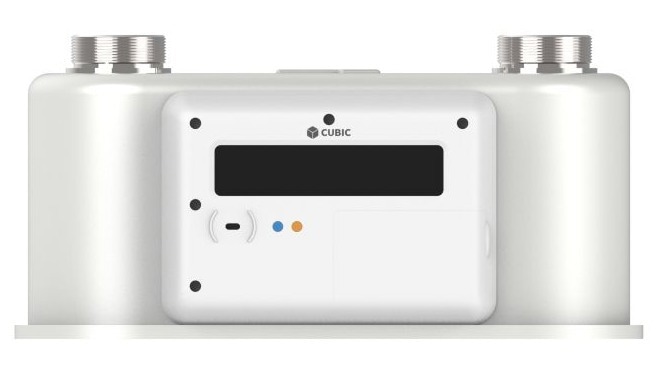

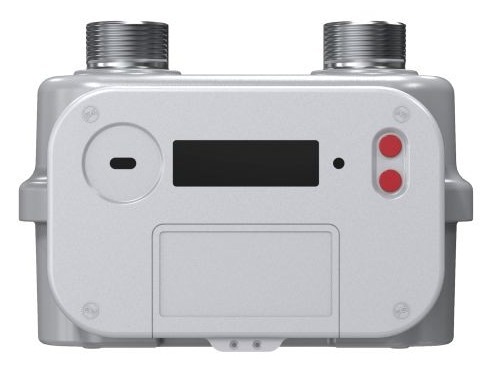

Residential Ultrasonic Gas Meter
USM-RA/RS-G1.6/G2.5/G4
Cubic residential ultrasonic gas meter, USM-RA/RS series, is an advanced electronic meter that measures gas flow velocity based on the Time of Flight (TOF) principle, with a class 1.5 accuracy. USM-RA/RS series features built-in temperature and pressure compensation and an intelligent software algorithm that delivers precise measurements across various gases, including air, 100% CH4, H2, and natural gases, throughout a full temperature range. Its compact size and light-weight design facilitate easy installation, while compliance with OIML R137 and EN14236 class 1 standards makes it ideal for widespread residential smart gas meters.
*The picture represents only one product type
Image Credit: Cubic Sensor and Instrument Co. Ltd
Commercial Ultrasonic Gas Meter
USM-LCA- G6/G10/G16 & USM-MCA-G25 & USM-HCA-G40/G65
Cubic commercial ultrasonic gas meter, USM-LCA/MCA/HCA series, is a type of electronic meter that utilizes advanced ultrasonic technology and the TOF principle for precise flow measurement of various gases, including natural gas, natural gas with 23% hydrogen (H₂), and LPG. It features high accuracy (class 1.5), robust performance in extreme temperatures (-40℃ to +60℃), and built-in temperature and pressure compensation. With durable construction that resists contamination and corrosion, the meter supports GPRS and NB-IoT connectivity for real-time monitoring and data management, making it suitable for commercial applications. The USM-G10~G65 series has obtained ATEX Certification (II 3G Ex ic IIB T4 Gc), ensuring safety and reliability.
*The picture represents only one product type
Image Credit: Cubic Sensor and Instrument Co. Ltd

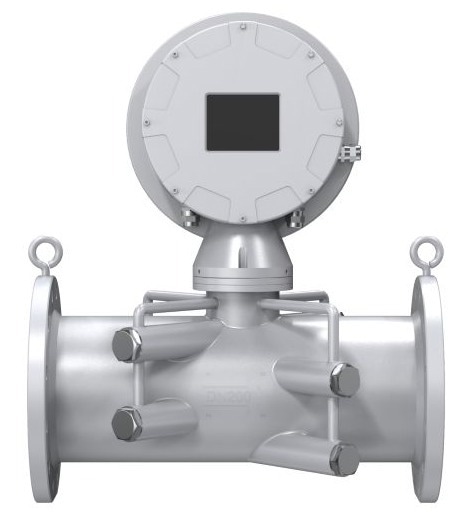

Industrial Ultrasonic Gas Flow Meter
DN50~DN300
Cubic industrial ultrasonic gas flow meter, DN series, is an advanced electronic meter that adopts ultrasonic technology to maintain long-term accuracy without degradation, and can measure natural gas flow. DN series features a multipath design that detects multiple flow profiles, eliminating turbulence and asymmetric gas flow. It incorporates high-precision internal pressure and temperature sensors, adhering to the NX-19 mod standard. With an integrated wireless communication module, the DN series allows for remote recharging, data monitoring, and operational status diagnostics for an intelligent management experience. The DN series is constructed from durable stainless steel and titanium alloy transducers and provides excellent corrosion resistance and noise immunity. Its maintenance-free operation is achieved through a design with no moving parts, making it suitable for industrial applications.
*The picture represents only one product type
Image Credit: Cubic Sensor and Instrument Co. Ltd

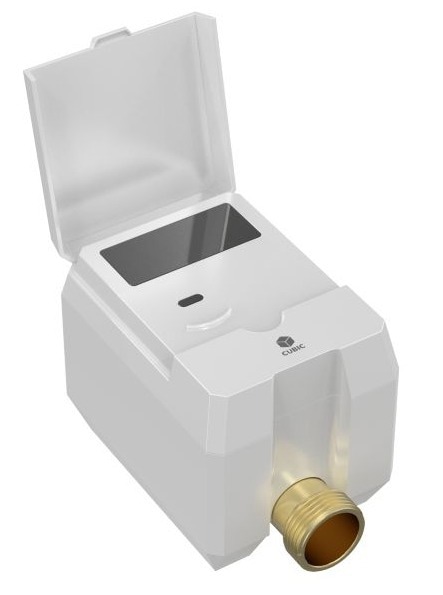

Ultrasonic Water Meter
UWM-DN32/DN40-WG & UWM-DN15/DN20/DN25-WG
Cubic ultrasonic water meter, UWM-DN-WG series, is an advanced electronic meter for precise water flow volume measurement. Utilizing all-digital technology with no moving parts offers exceptional accuracy, high resistance to magnetic interference, and low pressure loss, ensuring consistent performance and longevity. Cubic ultrasonic water meter, housed in a compact and tamper/weather/UV-proof casing, excels in harsh climates. Equipped with an integrated Internet of Things (IoT) module, the Cubic ultrasonic water meter enables remote reading and monitoring. It can automatically record water consumption, detect pipeline leaks, monitor illegal connections, and facilitate predictive maintenance, making it an effective solution for innovative water management.
*The picture represents only one product type
Image Credit: Cubic Sensor and Instrument Co. Ltd
