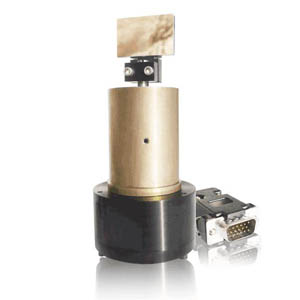

LBS-6124 Galvanometer from Equipment Solutions, Inc.

The LBS-6124 Galvanometer is a limited rotation device designed to position a light beam according to the magnitude of the applied command signal. The scanner uses a highly efficient 4-pole moving magnet motor technology. Its high torque-to-inertia characteristic permits fast dynamic response. The fixed stator winding architecture of the motor is a key component to its unparalleled reliability.

The scanner incorporates a state of the art electro-optic position sensor for highly accurate beam positioning using a servo amplifier. The position signal voltage is proportional to the tangent of the scan angle, which linearizes the signal for flat field scanning applications.
