AST Introduces Submersible Pressure Sensor for Measuring Level of Harsh Liquids

The Model AST 4530 Liquid Level Transmitter from American Sensor Technologies, Inc. (AST) is a designed to measure the level of harsh liquids such as slurries, salt water and oil in vented tanks or containers.

Constructed with PVDF material and a PTFE diaphragm, the AST 4530 submersible pressure sensor features a submersible PVDF cable, cord grip and housing as well as a conduit connection for turbulent installations such as process plants, salt water holding tanks, on-board ships, turbulent tanks, and rail cars. Sensors are certified to Class I Div 1, Groups C and D for use in intrinsically safe areas with an approved barrier.

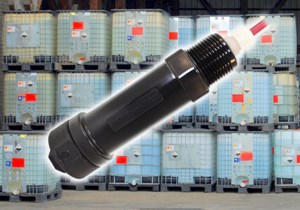

AST 4530 Liquid Level Transmitter

Offering highly reliable operations and long life, the PVDF liquid level transmitter is not affected from lid angle or proximity to tank wells. In comparison to ultrasonic and radar sensor technologies, the AST4530 Liquid Level Transmitter will not have an offset in output due to foaming, reflectivity as well as lid angle or proximity to the tank wall. In plastic tanks, a metal plate is not required to be installed under the transmitter. Vapor and condensation will not affect the reading or survivability, as the transmitter is vented through the cable to the outside of the tank or container. For marine and water processing applications, it offers the distinct advantage of not requiring sacrificial anode to reduce corrosion over time. It will also survive longer than standard submersible transmitters in applications where bacteria can attack metal.

Voltage and 4-20mA output signals allow users to interface for low current consumption or long distance transmission applications. A 4 to 20mA output is the most common signal in monitoring applications that require long distance transmissions as the current can be read at the controller without signal loss for hundreds of feet. For either battery-powered or solar-powered applications, voltage output signal is ideal. Typically the solar panel will be located close the pressure sensor, so there is no signal loss in the cable.

A list of the chemicals in which the AST4530 liquid level transmitter and the product specifications can operate can be downloaded on the product page at: http://www.astsensors.com/submersible_level_sensors/AST4530

For more information on AST’s complete line of submersible and tank mounted pressure transducers, refer to the web site at: http://www.astsensors.com/liquid-level-sensors.php.
