Reducing Vibration and Pulsation Effects in Pressure Measurement

Vibration and pressure pulsation are two of the most prominent reasons of premature failure and inconsistent results in pressure measurement devices. They are often overlooked when selecting an instrument, despite having a major impact on accuracy, readability, and service life. Understanding how vibration and pulsation impact pressure instruments, as well as how to minimize these effects, is crucial for ensuring accurate pressure measurement in industrial applications.

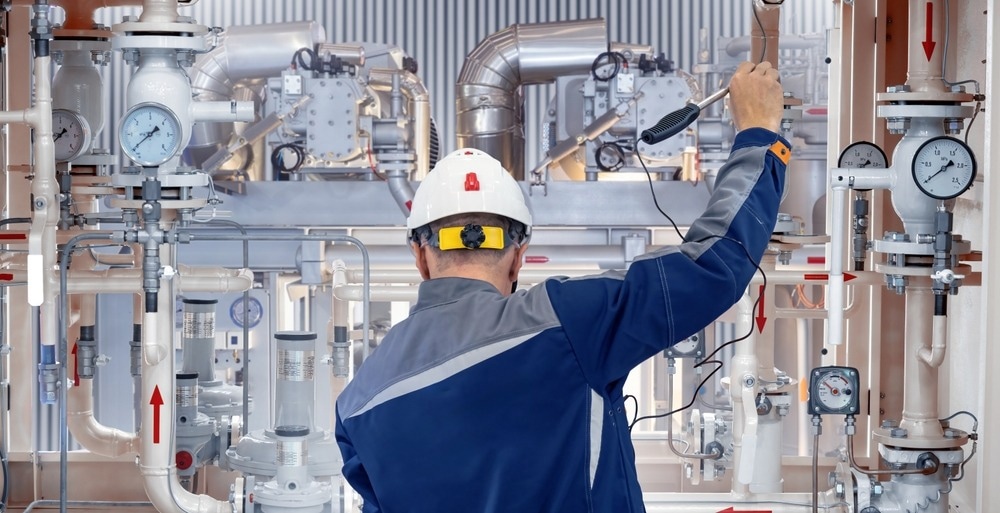

Image Credit: FOTOGRIN/Shutterstock.com

How Vibration and Pulsation Affect Instruments

Pressure pulsation is generated by fast pressure changes, which are often induced by pumps, compressors, control valves, or reciprocating equipment. Mechanical vibration can come from rotating machinery, structural resonance, or neighboring process activity.

Vibration and pulsation cause stress in two ways:

• Increased mechanical stress leads to faster wear of internal components.
• Dynamic pressure stress can induce needle oscillation, unstable readings, and fatigue of sensor elements.

Over time, these stressors can shorten instrument life, decrease measurement stability, and make pressure measurements difficult or impossible to interpret.

The Importance of Proper Range Selection

One of the most effective techniques to reduce pulsation damage starts with proper range selection. Operating an instrument at the top end of its range increases sensitivity to pressure spikes and cyclic loading.

The industry's best practice is:

• Choose a pressure range that exceeds normal operating pressure by a safe amount.
• Prevent continuous operation near full-scale levels.
• Consider transitory pressure fluctuations while sizing instruments.

These steps reduce mechanical strain and contribute to the instrument's long-term accuracy.

Damping as a First Line of Defense

Damping is one of the most used strategies for controlling vibration and pulsation. Damping enhances readability and durability by delaying pressure transmission to the sensing element and stabilizing mechanical movement.

Liquid-filled gauges are one such example. The fill fluid dampens pointer oscillations, absorbs shock, and lubricates internal components. This results in smoother signals and less mechanical wear, especially in situations involving continuous vibration or pressure cycling.

When liquid filling is not an option, alternate damping technologies, such as controlled internal movement designs, can be employed to provide similar stabilizing effects.

Protecting Against Pressure Spikes and Surges

When pulsation is extreme, damping alone may not be adequate. Sudden pressure spikes can surpass the mechanical limits of gauges and transmitters, causing irreversible damage or premature failure.

This risk can be considerably reduced by installing protective devices between the process and the instrument. These devices:

• Limit the rate of pressure changes.
• Prevent peak pressures from reaching the sensor element.
• Reduce fatigue from repetitive pressure cycling.

These protection techniques are especially relevant in systems with quickly changing loads or that have frequent start-stop cycles.

Readability and Maintenance Benefits

Aside from safeguarding the instrument, minimizing vibration and pulsation improves day-to-day usability. Stable readings help to eliminate interpretation errors, speed up troubleshooting, and improve the effectiveness of routine inspections.

Reducing mechanical stress reduces the need for replacements and unscheduled downtime. Over time, this adds to lower lifespan costs and better measurement consistency.

Conclusion

Vibration and pressure pulsation are inherent in many industrial processes, but their effects on pressure measuring systems can be effectively managed with careful design and adequate safeguards.

Engineers may considerably extend instrument life, increase readability, and maintain reliable pressure measurement by combining proper range selection, appropriate damping, and pressure protection measures, even in difficult operating conditions.
