Photon’s Range of Fast Low Nosie InGaAs and HgCdTe Cameras for Quality Control

ZEPHIR 1.7™ CAMERA

Zephir™ is based on a sensitive InGaAs FPA, and integrates a four-stage TE cooler, therefore it is possible for the system to deliver an amazing 345 frame-per-second rate while reaching unparalleled low noise levels. It is perfectly suited for challenging scientific applications.

Characteristics

  • 345 frame-per-second
  • 0.5 to 1.7 µm
  • Four stages TEC
  • InGaAs FPA
  • Low noise level

Applications

Safety and security


Photon etc’s infrared camera is a suitable tool for the fast detection of explosive liquid precursors.

Environment and agriculture


With the hyperspectral imagery, it would be possible to efficiently identify any type of molecules through the analysis of its characteristic spectrum.

Product Specifications

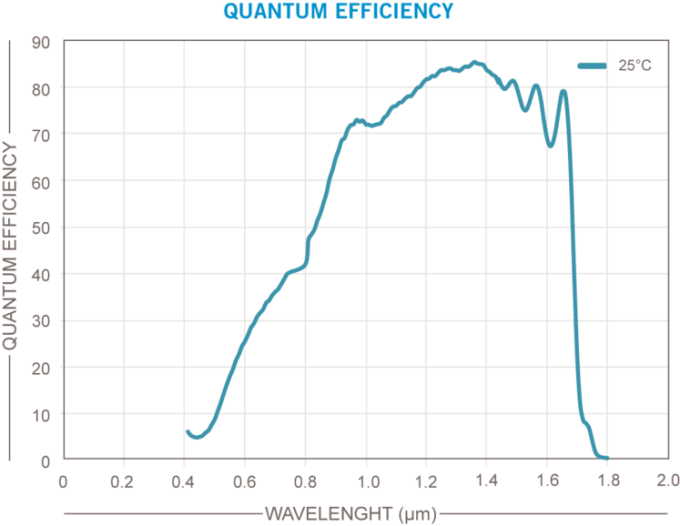

The table below provides the specifications of ZEPHIR 1.7™ CAMERA:

. .
FOCAL PLAN ARRAY (FPA) InGaAs
FPA SIZE 640 x 512
PIXEL SIZE 15 µm
SPECTRAL RANGE ~ 0.8 - 1.69 µm @ 25 °C
~ 0.8 - 1.62 µm @ -80 °C
DARK CURRENT 300 ē/p/s
GAIN SETTING (HIGH, LOW) 0.366 ē/ADU, 18.31 ē/ADU
READOUT NOISE (HIGH GAIN, LOW GAIN) 45 ē, 180 ē
QUANTUM EFFICIENCY Up to 85%
OPERABILITY (TYPICAL) > 99%
FULL WELL CAPACITY (HIGH GAIN, LOW GAIN) 12 Kē, 600 Kē
DYNAMIC RANGE 13/15 bits
FULL FRAME RATE 350 fps (13 bits) or 120 fps (15 bits)
INTEGRATION TIME RANGE 1 µs to minutes
READOUT MODES ITR, IWR, LNIM
COOLING TEC 4 stages, forced air
FPA OPERATING TEMPERATURE -80 °C
COOL DOWN TIME 3 minutes
AMBIENT TEMPERATURE RANGE 0 °C to 40 °C
COLD SHIELD Yes
COMPUTER INTERFACE CameraLink™ (dual), USB3.0
EXTERNAL CONTROL IN/OUT TTL
POWER SUPPLY REQUIREMENT 12 VDC @ 5 A
PHYSICAL DIMENSIONS 169 mm x 130 mm x 97.25 mm
WEIGHT 4 Kg

NOTE: Photon etc. reserves the right to change the design and specification of the product at any time, without notice.

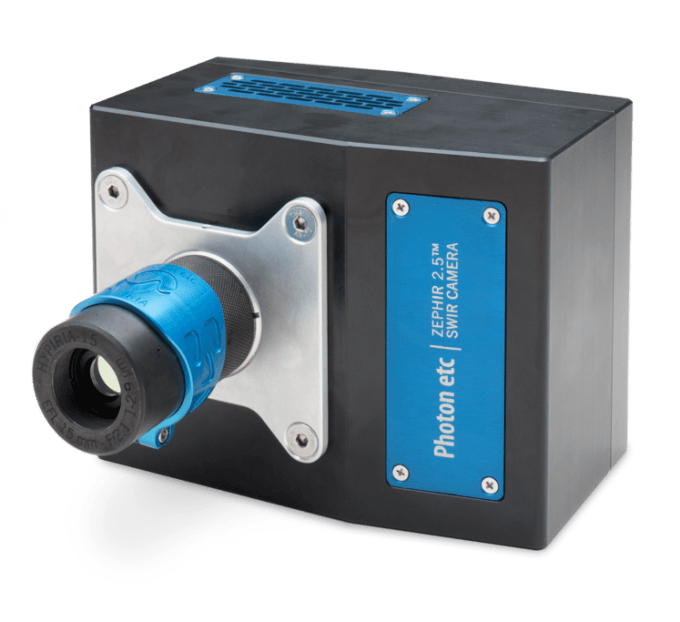

ZEPHIR 2.5 CAMERA

Image​​​​​​​

Zephir™ is based on a sensitive HgCdTe FPA, and integrates a four-stage TE cooler, therefore it is possible for the system to deliver an amazing 345 frame-per-second rate while reaching unparalleled low noise levels. It is perfectly suited for scientific research and industrial applications in quality control and sorting.

Characteristics

  • Four stages TEC
  • 345 frame-per-second
  • HgCdTe (MCT) FPA
  • Low noise level
  • 0.85 to 2.5 µm

Product Specifications

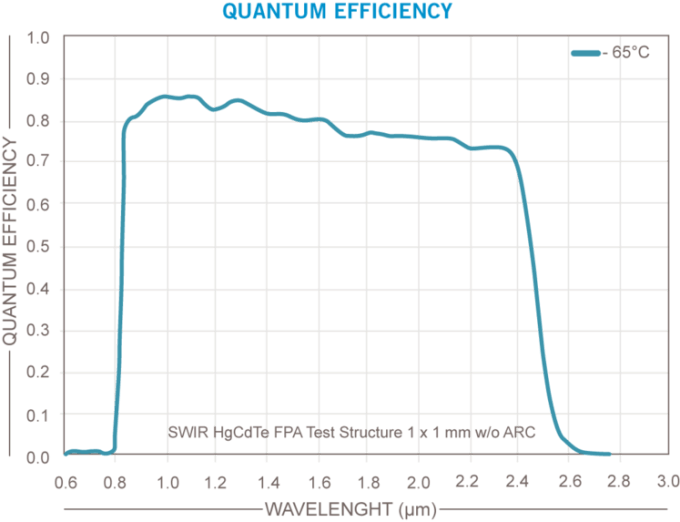

The table below provides the specifications of ZEPHIR 2.5 CAMERA:

. .
FOCAL PLAN ARRAY (FPA) HgCdTe
FPA SIZE 320 x 256
PIXEL SIZE 30 µm
SPECTRAL RANGE 0.85 - 2.5 µm
DARK CURRENT 4.8 pA or 30 Mē/p/s
GAIN SETTING (HIGH, LOW) 10.30 ē/ADU, 216 ē/ADU
READOUT NOISE 57ē @ 345 FPS (high gain)
PEAK RESPONSIVITY 1.8 A/W @ 2450 nm
QUANTUM EFFICIENCY Up to 85%
OPERABILITY (TYPICAL) > 98.5%
FULL WELL CAPACITY (HIGH GAIN, LOW GAIN) 168 Kē, 3.5 Mē
DYNAMIC RANGE 14 bits
FULL FRAME RATE Up to 345 fps
INTEGRATION TIME RANGE 1 µs to 100 ms
READOUT MODES ITR, IWR
COOLING TEC 4 stages, forced air
FPA OPERATING TEMPERATURE - 80 °C
COOL DOWN TIME 3 minutes
AMBIENT TEMPERATURE RANGE 0 °C to 40 °C
COLD SHIELD Yes
COMPUTER INTERFACE CameraLink™, USB3.0
EXTERNAL CONTROL IN/OUT TTL
POWER SUPPLY REQUIREMENT 12 VDC @ 5 A
PHYSICAL DIMENSIONS 169 mm x 130 mm x 97.25 mm
WEIGHT 4 Kg
S/N RATIO 65 dB

NOTE: Photon etc. reserves the right to change the design and specification of the product at any time, without notice.

​​​​​​​​​​​​​​Image​​​​​​​

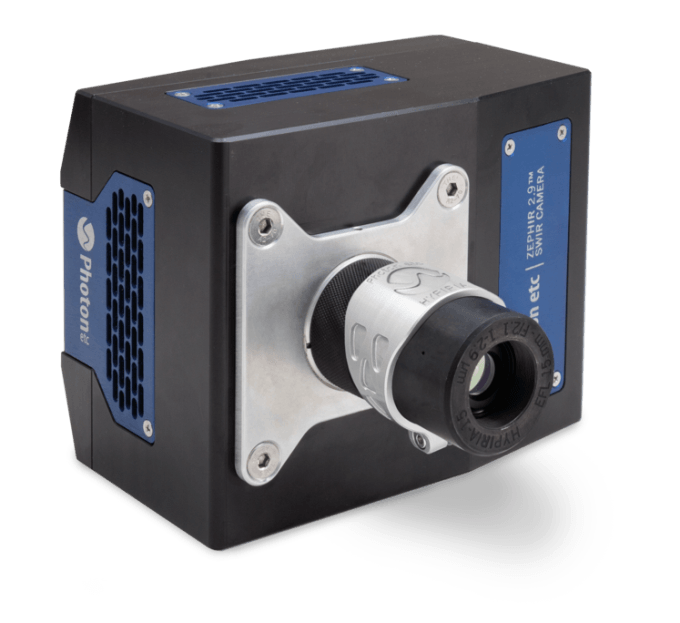

ZEPHIR 2.9 CAMERA


Zephir™ is based on a sensitive HgCdTe FPA, and integrates a four-stage TE cooler, therefore it is possible for the system to deliver an amazing 345 frame-per-second rate while reaching unparalleled low noise levels. It is perfectly suited for scientific research and industrial applications in quality control and sorting.

Characteristics

  • 345 frame-per-second
  • 0.85 to 2.9 µm
  • Low noise level
  • 4 stages TEC
  • HgCdTe (MCT) FPA

Product Specifications

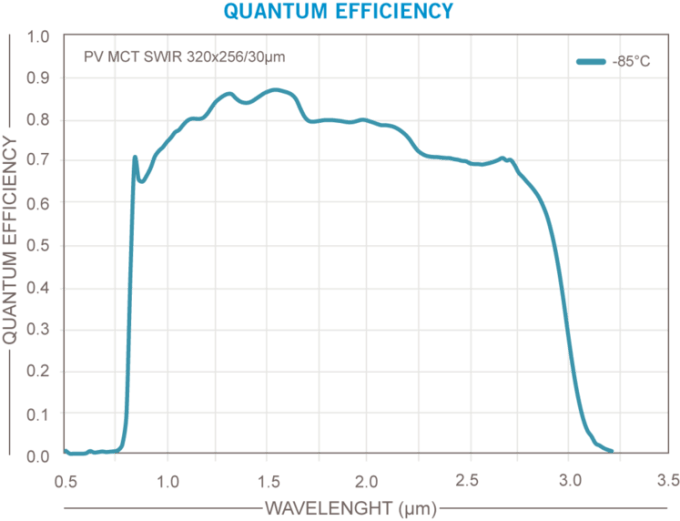

The table below provides the specifications of ZEPHIR 2.9 CAMERA:

. .
FOCAL PLAN ARRAY (FPA) HgCdTe
FPA SIZE 320 x 256
PIXEL SIZE 30 µm
SPECTRAL RANGE 0.85 - 2.9 µm
DARK CURRENT 454 pA or 340 Mē/p/s
GAIN SETTING (HIGH, LOW) 10.30 ē/ADU, 216 ē/ADU
READOUT NOISE 57ē @ 345 FPS (high gain)
PEAK RESPONSIVITY 1.56 A/W @ 2700 nm
QUANTUM EFFICIENCY Up to 85%
OPERABILITY (TYPICAL) > 98.5%
FULL WELL CAPACITY (HIGH GAIN, LOW GAIN) 168 Kē, 3.5 Mē
DYNAMIC RANGE 14 bits
FULL FRAME RATE Up to 345 fps
INTEGRATION TIME RANGE 1 µs to 10 ms
READOUT MODES ITR, IWR
COOLING TEC 4 stages, forced air
FPA OPERATING TEMPERATURE - 80 °C
COOL DOWN TIME 3 minutes
AMBIENT TEMPERATURE RANGE 0°C to 40 °C
COLD SHIELD Yes
COMPUTER INTERFACE CameraLink™, USB3.0
EXTERNAL CONTROL IN/OUT TTL
POWER SUPPLY REQUIREMENT 12 VDC @ 5 A
PHYSICAL DIMENSIONS 169 mm x 130 mm x 97.25 mm
WEIGHT 4 Kg
S/N RATIO 65 dB

NOTE: Photon etc. reserves the right to change the design and specification of the product at any time, without notice
