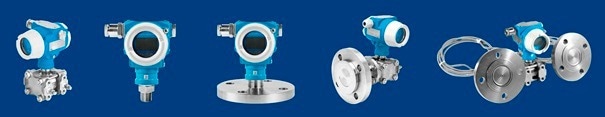

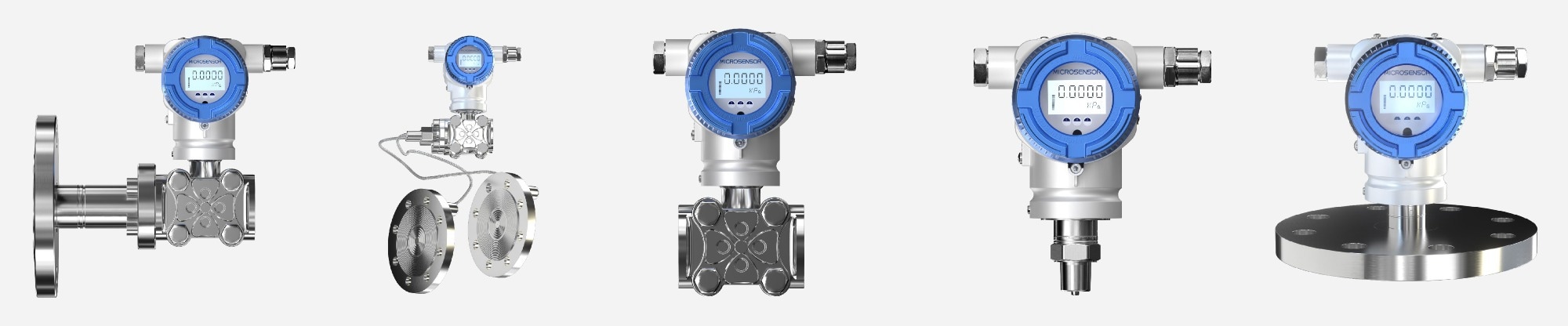

The MDM7000 series smart pressure transmitters use high-performance monocrystalline silicon compound strain sensing technology to monitor pressure/differential pressure, level/material level, density, and flow of diverse media, such as liquids, gases, and mixed liquids.
Get in touch now
Image Credit: Micro Sensor Co., Ltd
Various outputs include typical 4-20 mA analog current signals, the HART communication protocol, and additional industrial bus protocols. At the application site, requirements may be established, monitored, and tested using buttons, a field communicator, or a PC interface. This results in efficient and dependable measuring solutions for automated industrial processes.

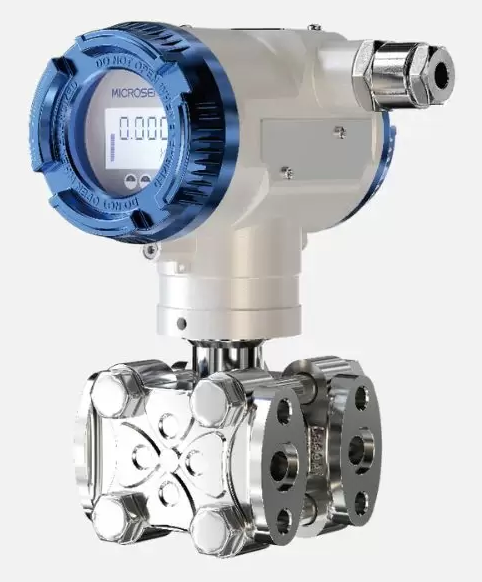

MDM7000 Smart Differential Pressure Transmitter
- Maximum turndown ratio：100:1
- Accuracy: ±0.075%，±0.05%，±0.1% URL
- Range: 60 mbar ~ 100 bar
- Long-term stability: ±0.1% SPAN/5years
MDM7000DP has three accuracy levels: ±0.075%, ±0.05%, and ±0.1% URL. The transmitter has a maximum turndown ratio of 100:1, making it adaptable for altering the measured range.
The 4 mA ~ 20 mA DC+HART or MODBUS RS485 signal output enables remote configuration, monitoring, and testing. Furthermore, the transmitter has a high-performance EMC protection circuit module with powerful anti-interference capabilities, ensuring dependable and precise readings in demanding conditions.

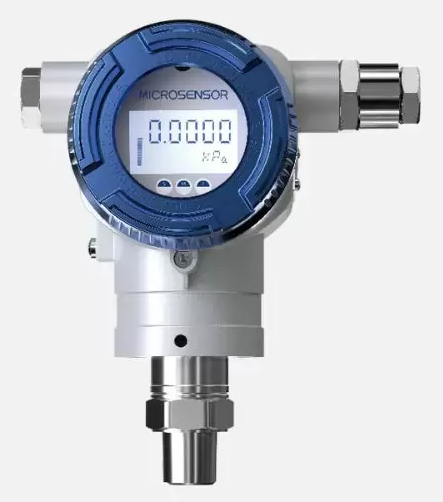

MDM7000-GP/AP Smart Gauge/Absolute Pressure Transmitter
- MDM7000-GP Accuracy：±0.075% FS, ±0.1% FS, ±0.2% FS
- MDM7000-AP Accuracy：±0.1% FS, ±0.2% FS
- MDM7000-GP Range：0.4 bar ~ 400 bar
- MDM7000-AP Range：0.4 bar ~ 100 bar
- Long-term stability：±0.1% SPAN/5years
- Maximum turndown ratio：100:1
Image Credit: Micro Sensor Co., Ltd
The MDM7000-GP/AP Smart Gauge/Absolute Pressure Transmitter is highly precise and has outstanding long-term stability. Thanks to superior monocrystalline piezoresistive technology, it can reach an accuracy of 0.075% FS. The range provided by the MDM7000-GP/AP is 0.4 bar to 400 bar (MDM7000-GP) or 0.4 bar to 100 bar (MDM7000-AP).
The product has superior capabilities regarding resistance to interference, high-frequency response, and overloading. Digital signal processing and transmission techniques provide remote configuration, observation, and testing for simple manufacturing process management and maintenance.
It offers a precise and dependable pressure-measuring solution for industrial applications. The MDM7000-GP/AP intelligent pressure transmitter is a dependable pressure monitoring tool for industrial process control systems and the chemical sector. The MDM7000 Series offers smart features, a robust design, and high accuracy, making it a great option for any business that needs accurate pressure measurement and management.
Get in touch now

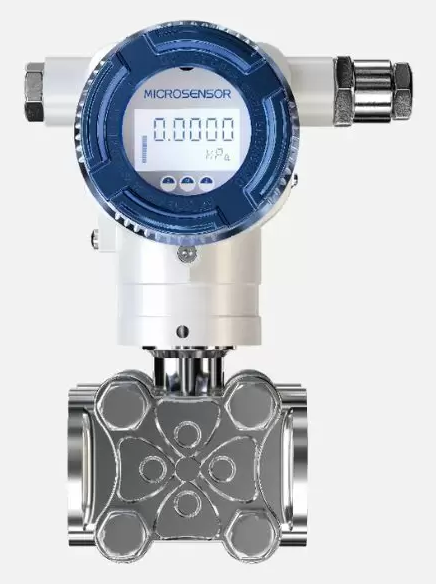

MDM7000-DGP/DAP Traditional Mounted Gauge/Absolute Pressure Transmitter
- MDM7000-DGP Accuracy: ±0.075%，±0.1%，±0.2% URL
- MDM7000-DAP Accuracy: ±0.1%, ±0.2% URL
- MDM7000-DGP Range：60 mbar ~ 400 bar
- MDM7000-DAP Range: 0.4 bar ~ 100 bar
- Long-term stability: ±0.1% SPAN/5years
- Maximum turndown ratio: 100:1
Image Credit: Micro Sensor Co., Ltd
The process industry has stringent standards, and the MDM7000-DGP/DAP Intelligent Differential Pressure Mounted Gauge / Absolute Pressure Transmitter is made to satisfy those needs. With a maximum ratio of 100:1 and an accuracy of 0.075% FS, monocrystalline silicon piezoresistive technology offers reliable performance that is perfect for flexible measurement range modification.
To measure the level, density, pressure, and flow of liquids, gases, or vapors, the pressure signal could be converted to a 4 mA ~ 20 mA DC analog current signal output for remote setup, monitoring, and other operations via communication devices.
A high-performance EMC protection circuit module with strong anti-interference capabilities is used in the MDM7000-DGP/DAP series. Furthermore, it has outstanding long-term stability (±0.2% SPAN/5 years). It is suitable for the process sector because of its versatility and robustness.

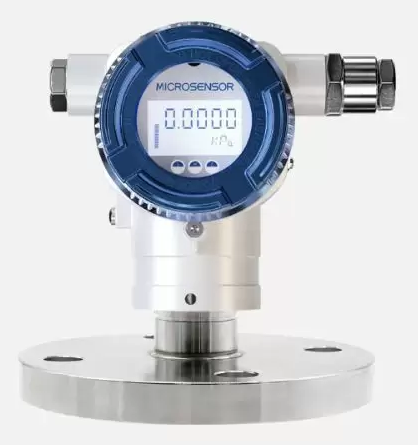

MDM7000-GP-T/AP-T Flange Gauge/Absolute Pressure Transmitter
- MDM7000-AP-T Range：0.4 bar ~ 10 bar
- MDM7000-AP-T Accuracy：±0.1% FS, ±0.2% FS
- MDM7000-GP-T Accuracy：±0.1% FS, ±0.2% FS
- MDM7000-GP-T Range：0.4 bar ~ 100 bar
Image Credit: Micro Sensor Co., Ltd
MDM7000-GP-T/AP-T is a high-accuracy Intelligent Pressure Gauge/Absolute Pressure Transmitter that measures the flow, density, and level of liquids, gases, mixes, etc. Its explosion-proof certification enables safe use in dangerous situations.
Features
- 4 ~ 20 mA DC, HART communication protocol, and industrial bus protocol such as RS485-Modbus
- High precision: 0.075%, 0.1%, 0.2%
- Long-term stability: ±0.2% SPAN/5 years

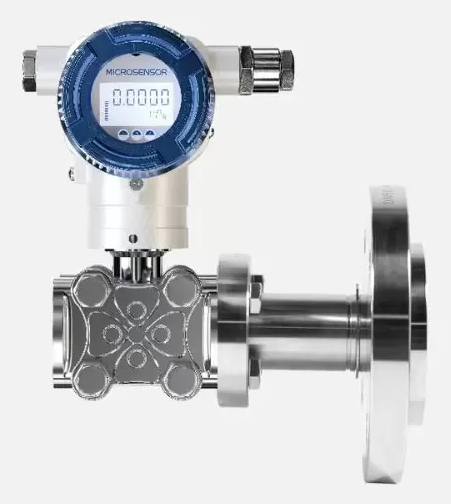

MDM7000LT Smart Level Transmitter
- Accuracy：±0.075% FS
- Range: 0.4 bar ~ 30 bar
- Output Signal: 4 mA ~ 20 mA DC+HART
- Working Temperature: -10 ℃ ~ 85 ℃ , -10 ℃ ~ 70 ℃ (with LCD display)
Image Credit: Micro Sensor Co., Ltd
The MDM7000-LT Intelligent Level Transmitter can measure the level of fluids that are very viscous, corrosive, and readily precipitated. It can accommodate a variety of liquid choices, such as filled oil, to transfer media pressure from the instrument body to the flange end.
The MDM7000-LT can be installed straight onto the flanges and is compatible with various standards. The level transmitter's measurement range is 0.4 bar to 30 bar. This transmitter can be used in various sectors where accurate level measurement is necessary.
Get in touch now

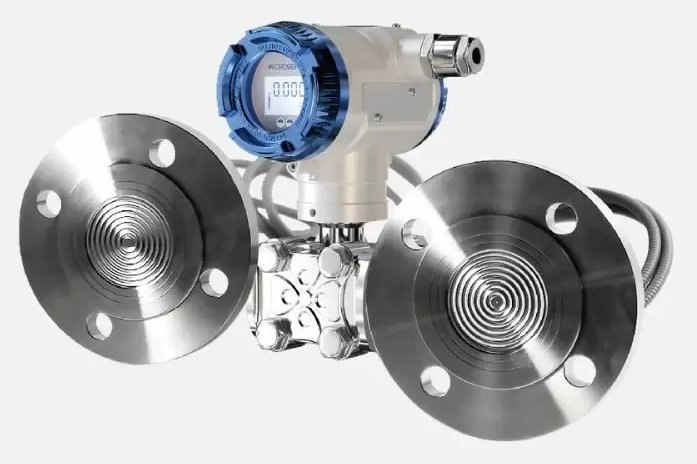

MDM7000-LP Smart Differential Pressure Transmitter with Remote Diaphragm Seal
- Output Signal: 4 mA ~ 20 mA DC+HART
- Accuracy：±0.075% FS
- Range: 0.4 bar ~ 30 bar
Image Credit: Micro Sensor Co., Ltd
The MDM7000-LP smart differential pressure transmitter uses monocrystalline silicon piezoresistive sensor technology to track pressure, density, gas flow, and liquid and gas levels. It finds application in both general and demanding process sectors. The communication equipment allows for remote configuration and monitoring of the signal output, which supports 4-20 mA DC or RS485-Modbus.
Differential pressure transmitters are essential in many sectors because they guarantee smooth, safe, and efficient operations. They are crucial for preserving the efficiency and quality of several industrial processes because they offer precise and trustworthy pressure measurements.
Certificates Micro Sensor has:
Image Credit: Micro Sensor Co., Ltd
