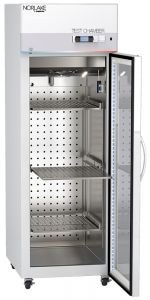

Norlake Scientific Temperature Test Chambers are engineered to fulfill the most stringent criteria for scientific and laboratory research. The advanced developed design integrates the latest cabinet, refrigeration, temperature control, and monitoring technologies. Provides energy-efficient, convenient, safe, and dependable performance for ideal storage temperature conditions in a variety of life science, pharmaceutical, biological, medical, clinical, and industrial settings.
- Hydrocarbon natural refrigerant
- Multi-element, independent proportional electric heating Temp sensor Type: NTC
- Condensate evaporation
- Shielded, switched interior LED lighting
- Heavy-duty door handle
- Magnetic door gasket for positive seal
- Keyed door lock
- Probe access port (0.75 in.)
- 4 swivel casters (3.5 in.)
- 23 Cu. Ft. Capacity
- One swing glass door that is right-hinged, self-closing, and non-reversible Three, sliding tray shelves made of 304 stainless steel
- The cabinet has high-density, EPA-compliant polyurethane foam insulation that is foamed in situ
- White-powder coated steel exterior
- 304 stainless steel interior
- Plenum air distribution
- Top-mounted, variable-speed compressor
Temperature Controller
- Process phase-specific temp alarm
- Power failure alarm
- Sensor failure alarm
- Temperature setpoint range: 20 °C to 60 °C
- Temperature control: ±0.1 °C
- Temperature stability: ±0.5 °C from 20 °C to 60 °C (Range dependent per test protocol)
- Temperature uniformity: ±1 °C from 20 °C to 60 °C (Range dependent per test protocol)
- Programmable ramp and soak
- Process phase graphic animations
- USB data port
- RS-485 communication (MODBUS-RTU)
- Real-time clock
- Battery backup
- Event logs: 100
- Visual alarm indicator
- Audible alarm indicator
The item is shipped from the United States.
