Chronic wounds are a serious, often overlooked medical challenge, especially for people with diabetes or poor circulation. These wounds heal slowly, are prone to infection, and can lead to life-altering complications if not managed properly. What makes them especially tricky is that traditional care methods offer limited feedback. Clinicians rely on occasional visual inspections or delayed lab results, leaving plenty of room for complications to slip by unnoticed.

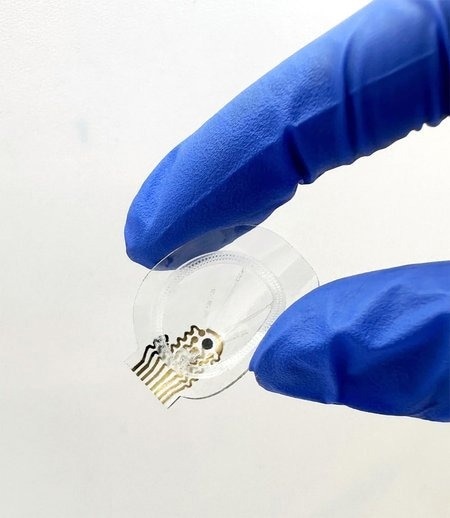

Image Credit: Caltech
That’s where Caltech’s new smart bandage—called iCares—comes in. Developed by Professor Wei Gao and his team, this next-generation device packs lab-level diagnostic capabilities into a flexible, skin-friendly bandage. It doesn’t just cover a wound—it monitors it in real time, detects chemical changes, and can even deliver targeted treatment to support healing more effectively.
From Reactive to Proactive: Rethinking Wound Care
Most chronic wound care is reactive. A patient notices something’s wrong, or a clinician spots a change during a visit, and action is taken. But by then, the problem may have already advanced. Gao’s team set out to flip that model—to make wound care proactive, with continuous feedback and early warning systems built right into the dressing.
Their original prototype, tested in animal models, showed promise in both monitoring and promoting healing. The latest version takes it further. It features enhanced biosensing and fluid sampling tools, and for the first time, it’s been validated in human clinical trials.
What makes iCares especially powerful is its ability to read biochemical signals in fresh wound exudate—the fluid that naturally seeps from wounds during healing—without needing to send samples to a lab.
How It Works: A Lab on a Bandage
At first glance, the bandage might look simple. But under the surface, it’s a compact system that combines advanced biosensors, microfluidics, and smart electronics.
The base is a soft, biocompatible polymer that comfortably adheres to the skin. On top of that sits a disposable sensor array made from nanoengineered materials, designed to detect key molecular markers—like nitric oxide, which signals inflammation, and hydrogen peroxide, which indicates infection.
Here’s how the internal system functions:
- Step 1: A membrane draws in fresh wound fluid, mimicking the body’s natural absorption.
- Step 2: That fluid moves through tiny microchannels to the sensor array.
- Step 3: Once analyzed, the fluid is removed to prevent contamination or sensor overload.
By analyzing only newly secreted fluid, the bandage avoids a common issue with traditional dressings—interference from older, stagnant exudate.
All of this is powered by a compact, reusable circuit board, which wirelessly sends data to an external device like a smartphone or medical monitor. And to make sense of it all, the team built a machine learning algorithm that classifies the wound’s condition and predicts healing time, offering insights similar to what a seasoned clinician might provide.
Real Patients, Real Results
In a clinical trial involving 20 patients with chronic wounds, the iCares bandage did more than just track healing—it caught warning signs early. In many cases, the biosensors detected elevated markers of inflammation and infection up to three days before visible symptoms appeared.
That kind of lead time is critical. For patients managing wounds at home or living far from specialized care, early intervention could be the difference between routine treatment and serious complications.
The study also confirmed that the bandage’s biochemical readings closely matched clinical assessments, underscoring its reliability. It didn’t just gather data—it gathered useful data. And the system has potential beyond monitoring. Future versions could incorporate therapeutic actions, like timed medication release or electrical stimulation, triggered by sensor input in real time.
Another standout feature is the device’s moisture management. Proper wound hydration is key to healing—too much fluid can delay recovery, too little can dry out tissues. The iCares bandage balances both by removing excess fluid while still collecting biochemical data, maintaining an optimal healing environment.
Add in the predictive power of machine learning, and the system becomes more than a monitoring tool; it becomes a decision-making aid. Clinicians can identify which patients might need closer attention, adjust treatments earlier, and use resources more efficiently.
The Takeaway
With iCares, Caltech has created more than a high-tech bandage—it’s a step toward smarter, more responsive wound care. By integrating biosensors, fluid handling, wireless data transfer, and AI-driven analysis, this wearable device brings the lab to the patient, offering real-time insights directly at the site of care.
And with promising results already emerging from human trials, the future of wound care could look a lot more connected, precise, and patient-centered.
