Measurement of Salt in Pellet Form Using Laser Level Transmitters

In this application example, the LM80 laser level transmitter is used to measure salt in pellet form. The LM80 Laser is a high performance laser transmitter that precisely measures level, distance and position over long ranges in extreme environments.

The key features of the LM80 laser level transmitter as shown in Figure 1 are:

  • Maintenance free, non-contact continuous level sensor
  • Range up to 100 m (330 ft) for level applications
  • Range up to 150 m (500 ft) for positioning applications
  • Auto-ranging to measure all levels
  • Available non condensing heated optics prevent condensation issues
  • No Beam Divergence = No False Echoes
  • Rugged and Robust Aluminum Enclosure
  • CSA, ATEX and IECEx potentially explosive atmosphere ratings
  • Easy and intuitive setup
  • No calibration required
  • Continuous level monitoring for granular solid materials and opaque liquids
  • Measures solids and opaque liquids at any angle
  • Last Pulse Detection for Measurement with Light and Moderate Dust
  • Built-in laser pointer for accurate alignment in narrow or tall vessels

LM80 laser level transmitter

Figure 1. LM80 laser level transmitter

Application Example

Successful application of the LM80 laser level transmitter was performed at a salt plant in the Midwest of the US as shown in Figure 2.

Salt Plant

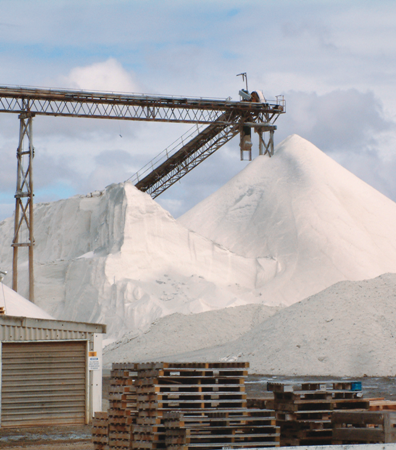

Figure 2. Salt plant in the Midwest of the US

The application involves salt measurement in pellet form. Previously the customer tried to use ultrasonic and radar transmitters unsuccessfully in the application. In this application the bins have support beams that resulted in the ultrasonic and radar signals detecting the beams instead of the product after the bin was 30% empty.

As a result 70% of the bin measurement was not accurate. Also, the bin filled with a peak in the middle and emptied with slump in the middle. Even in the area having no metal beams, this "Peaking and Slumping" caused poor performance from the ultrasonic and radar transmitters.

On top of the bin an LM80 was mounted and aimed to avoid the metal supports. The narrow width of the laser beam helped position the laser beam between the metal supports.

The results were very good and the LM80 responded with the correct measurement, verified with a tape measure. Dust density did not appear to be an issue for the LM80 in the pellet application, however measuring salt when it is fine can sometimes present a problem due to high dust levels. For applications where dust becomes very thick, the ABB Guided Wave Impulse Radar transmitters positioned to avoid the metal supports can be used.
