10% CO Sampling Data Logger

Measurements of carbon dioxide concentrations in enclosed spaces, such as those found in life sciences, incubation, science, and medical applications, are made possible by the 10% Carbon Dioxide Sampling Data Logger.

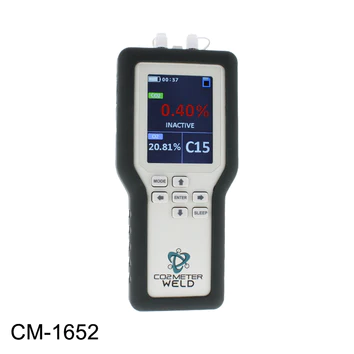

10% CO Sampling Data Logger

Image Credit: CO2Meter


  • Li-ion rechargeable batteries (three included) with a 30-plus hour runtime
  • Real-time graphing and data logging using a micro SD card (16 GB included)
  • Quick CO2 sampling enables measurements in a matter of seconds
  • Programmable by the user to measure at predetermined intervals


  • Scientific Research
  • Life Sciences
  • Bio - incubation
  • Medical Facilities


  • Dimensions: 225.8×99.6×55 mm (8.9×3.9×2.2 in)
  • Power: (3) Li-ion 18650 Batteries
  • Sensing method: NDIR (Non-Dispersive Infrared)
  • Storage Temperature: –20~60 °C (-4~140 °F)
  • Measures: CO2 - 0-10% (0-100,000 ppm) CO2
  • Relative Humidity: 0~95%, ±3% @ 25 °C (20~80% RH), others ±5%
  • Display Resolution: CO2:  1 ppm, 10 ppm, or 100 ppm
  • Operating Conditions: 0~50 °C (32~122 °F), 0~95% RH, non-condensing
  • Alarm Volume: 80 db ±5% @ 10 cm
  • Temperature: 0~50 °C,±1 ℃
  • Barometer: 50~110 kPa, ±0.4 kPa
  • Accuracy: ±70 ppm +/- 5% of reading @ STP
  • Weight: 305 g (without batteries)


  • Tubing - 1/8” ID x 1/4” OD×1/15” Wall Clear PVC Tubing 10 feet long
  • Includes a 16 GB SD card with crucial calibration files.
  • Water Trap
  • Handheld CO2 Sampling Data Logger Detector
  • 3 Li-Ion Batteries
  • Hydrophobic and Particulate Filters
  • Manual
  • USB 1.5M cable


This device features data logs that are stored on a micro SD Card. This device is incompatible with the GasLab® software.


  • BAT-18650 - EBL 18650 3.7 V Li-ion Rechargeable Batteries
    • All handheld gas detectors in the CM-500 and CM-1000 series can be used with EBL Intelligent Batteries, which offer a quick charge and upgraded ETL certification
  • EBL Universal Battery Charger for 3.7 V Rechargeable Batteries
    • Users can charge lithium batteries with the EBL Universal Battery Charger when plugged into a USB outlet. Additionally, the battery charger shows the charge levels clearly by turning green when the battery is fully charged.
