The most recent volumetric primary flow standard from Mesa Labs provides simple calibrations with unmatched flow ranges, precision, and mobility. FlexCal®'s features include:
- Time interval and user-selectable flow units
- The flow ranges from 5 ccm to 50 LPM
- LCD graphical display
- Quick start functionality
- Compliant with CE/RoHS
- USB connectivity

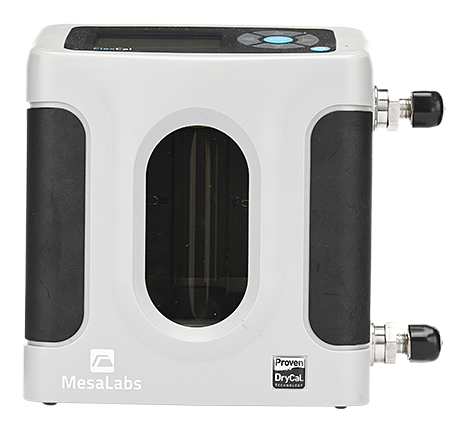

The FlexCal is compact, lightweight, and suitable for even the most demanding applications. It provides flow rates up to 50 LPM with a specified accuracy of 0.5%. FlexCal from Mesa Labs ensures great accuracy and assurance without the need for heavy provers, timers, or soap bubbles.
Technical Specifications
The FlexCal Series
User-selectable measurement units
Temperature: °C, °F
Pressure: mmHg, PSI, kPa
Volumetric: mL/min, L/min, cc/min, cf/min
Standardized: smL/min, sL/min, scc/min, scf/min
Source: Mesa Labs, Inc.
| |
FlexCal-H |
FlexCal-M |
FlexCal-L |
| Flow Ranges |
0.5–50 LPM |
50 ccm to 5 LPM |
5–500 ccm |
| Accuracy |
0.5% of reading |
User-selectable
measurement units |
Volumetric |
mL/min, L/min, cc/min, cf/min |
| Standardized |
smL/min, sL/min, scc/min, scf/min |
| Temperature |
oC, oF |
| Pressure |
mmHg, PSI, kPa |
| Temperature and pressure sensor |
Yes, in flow stream |
| Dimensions (H x W x D) |
6.7 x 6.25 x 2.9 in/170 x 159 x 73.5 mm |
| Weight |
3 lb/1.36 kg |
