In a recent article published in the journal Micromachines, researchers unveiled a cutting-edge SnO2 gas sensor, featuring an integrated memristor structure enhanced by a hafnium oxide (HfO2) layer. This breakthrough not only improves the detection of nitric oxide (NO2) but also ensures outstanding stability and reproducibility, paving the way for its use in health monitoring and environmental safety applications.

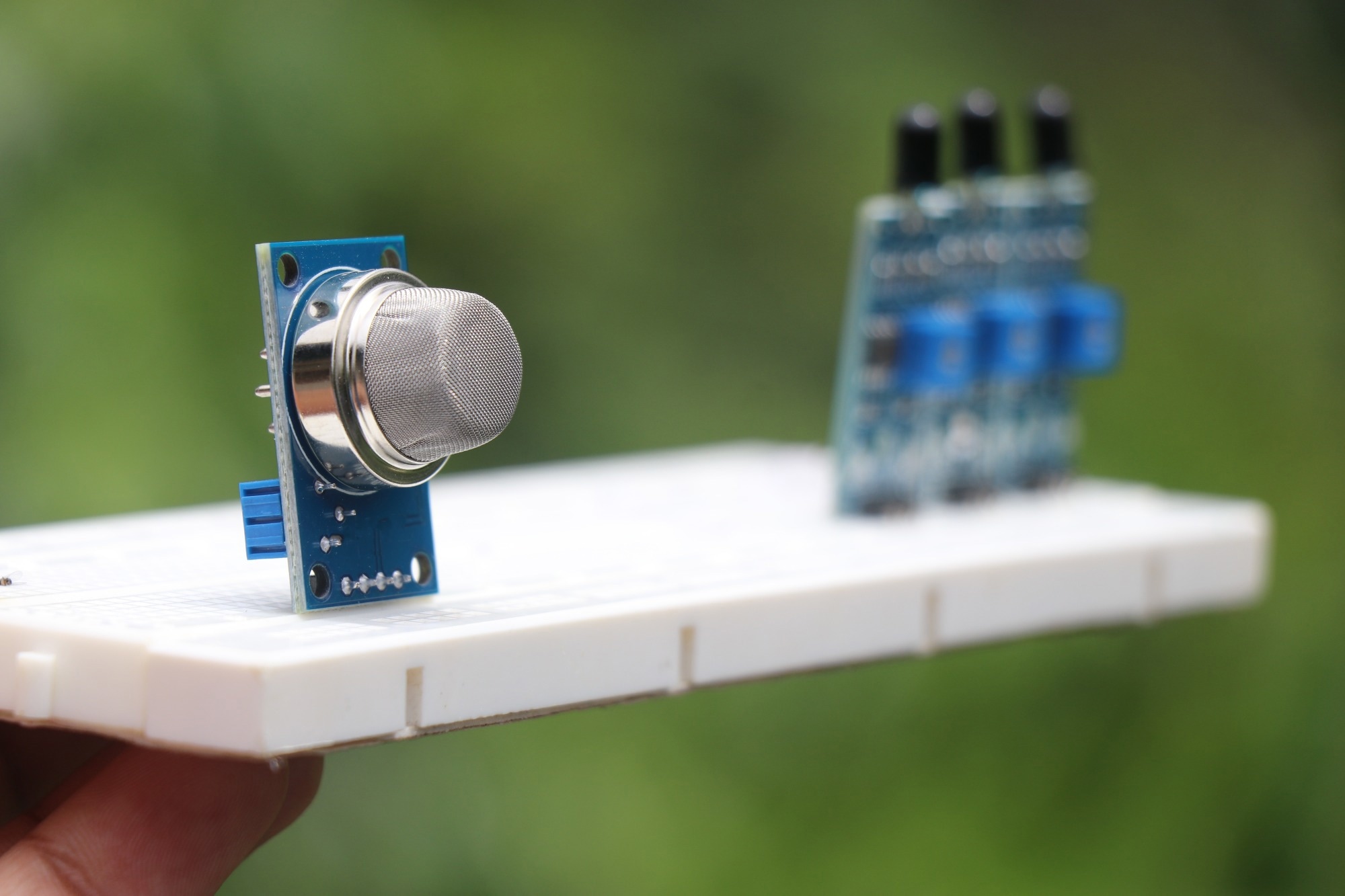

Study: The Superior Response and High Reproducibility of the Memristor-Integrated Low-Power Transparent SnO₂ Gas Sensor. Image Credit: Pixel Enforcer/Shutterstock.com
Background
Gas sensors are essential for detecting and measuring harmful gases across various environments, contributing to both health monitoring and environmental safety. While traditional SnO2 gas sensors are widely used, they often face challenges such as slow response times and decreased stability under changing conditions. Addressing these limitations has become a key focus in advancing gas sensor technology.
The integration of memristor technology offers a promising solution. Memristors, known for their ability to retain memory of previous states, improve gas sensors' sensitivity and reliability by enhancing the modulation of resistance states. Adding a HfO2 layer takes this innovation a step further. The HfO2 layer stabilizes the conductive filaments formed during resistive switching, significantly boosting the sensor's performance and durability.
This study explores the impact of incorporating an HfO2 layer into a SnO2 gas sensor, focusing on its ability to detect NO2. By enhancing response time, sensitivity, and stability, this design aims to demonstrate its potential for practical applications in real-world scenarios.
The Current Study
The fabrication of the new SnO2 gas sensor involved a precise fabrication process. Quartz substrates were meticulously cleaned using a series of solvents to remove impurities. A 100 nm-thick indium tin oxide (ITO) layer was then deposited to function as a transparent conductive electrode. Following this, the SnO2 layer was applied, and the HfO2 layer was incorporated to enhance the sensor's performance and stability.
The sensor’s electrical and gas-sensing properties were evaluated using a specialized testing setup, which included a pulse generator and a semiconductor characterization system. The device’s response to varying concentrations of NO2 gas was tested in a controlled environment with stable temperature and humidity, ensuring consistent and accurate measurements.
Key performance metrics, such as response rate, recovery time, and long-term stability, were analyzed over a ten-day period to determine the sensor’s effectiveness and reliability.
Results and Discussion
The study demonstrated the impressive capabilities of the memristor-integrated SnO2 gas sensor. It achieved a remarkable response rate of 81.28 % to 50 ppm of NO2 gas, a significant improvement compared to the 29.58 % response of a sensor without the HfO2 layer. This enhancement is attributed to the stabilizing effect of the HfO2 layer on the conductive filaments, enabling more reliable detection of low gas concentrations.
The sensor’s recovery time for 10 ppm NO2 was 87 seconds, effectively addressing a common drawback of traditional SnO₂ gas sensors, which often suffer from prolonged recovery times. Long-term stability tests further validated the device's reliability, showing only a 2.4% variation in performance over ten days. These findings highlight the sensor’s reproducibility and robustness, crucial for practical applications requiring consistent and accurate gas detection.
In the discussion, the authors emphasized the broader implications of these advancements for health monitoring and environmental safety. The ability to detect hazardous gases like NO2 in real-time is critical for mitigating health risks associated with poor air quality. By integrating the HfO2 layer, the sensor achieves enhanced sensitivity and durability, making it well-suited for long-term deployment in various real-world environments.
The study also compared its findings with previous research, showcasing the superior performance of the proposed sensor design. The combination of SnO2 and memristor technology, bolstered by the strategic use of HfO2, presents a significant step forward in gas sensing technology opening the door for improvements in applications such as air quality monitoring and industrial safety systems.
Conclusion
This study marks a significant leap forward in gas sensor technology. The results of the study highlight that this innovative design not only achieves superior response rates and faster recovery times but also delivers exceptional reproducibility and long-term stability. These features make the sensor highly effective in detecting low concentrations of NO2 gas, positioning it as a valuable tool for health monitoring and environmental safety applications.
The authors encourage further exploration of this technology, emphasizing the potential for integrating advanced materials and structures to achieve even greater performance enhancements. By addressing key limitations of traditional gas sensors, this research provides important insights and lays the groundwork for more reliable and efficient solutions to air quality challenges.
Journal Reference
Kim T. and Kim H.-D. (2024). The Superior Response and High Reproducibility of the Memristor-Integrated Low-Power Transparent SnO₂ Gas Sensor. Micromachines 15, 1411. DOI: 10.3390/mi15121411, https://www.mdpi.com/2072-666X/15/12/1411
