Sensor Technology: From Basics to Breakthroughs

Sensor technology lies at the heart of today’s most groundbreaking innovations, revolutionizing industries and driving progress. From healthcare to automotive and environmental monitoring, these advanced systems are enabling precise detection and measurement of physical, chemical, and biological data like never before. As technology advances, sensors are becoming smaller, more accurate, and more energy-efficient. With each new development, sensors are not just evolving—they are shaping the future of countless fields.

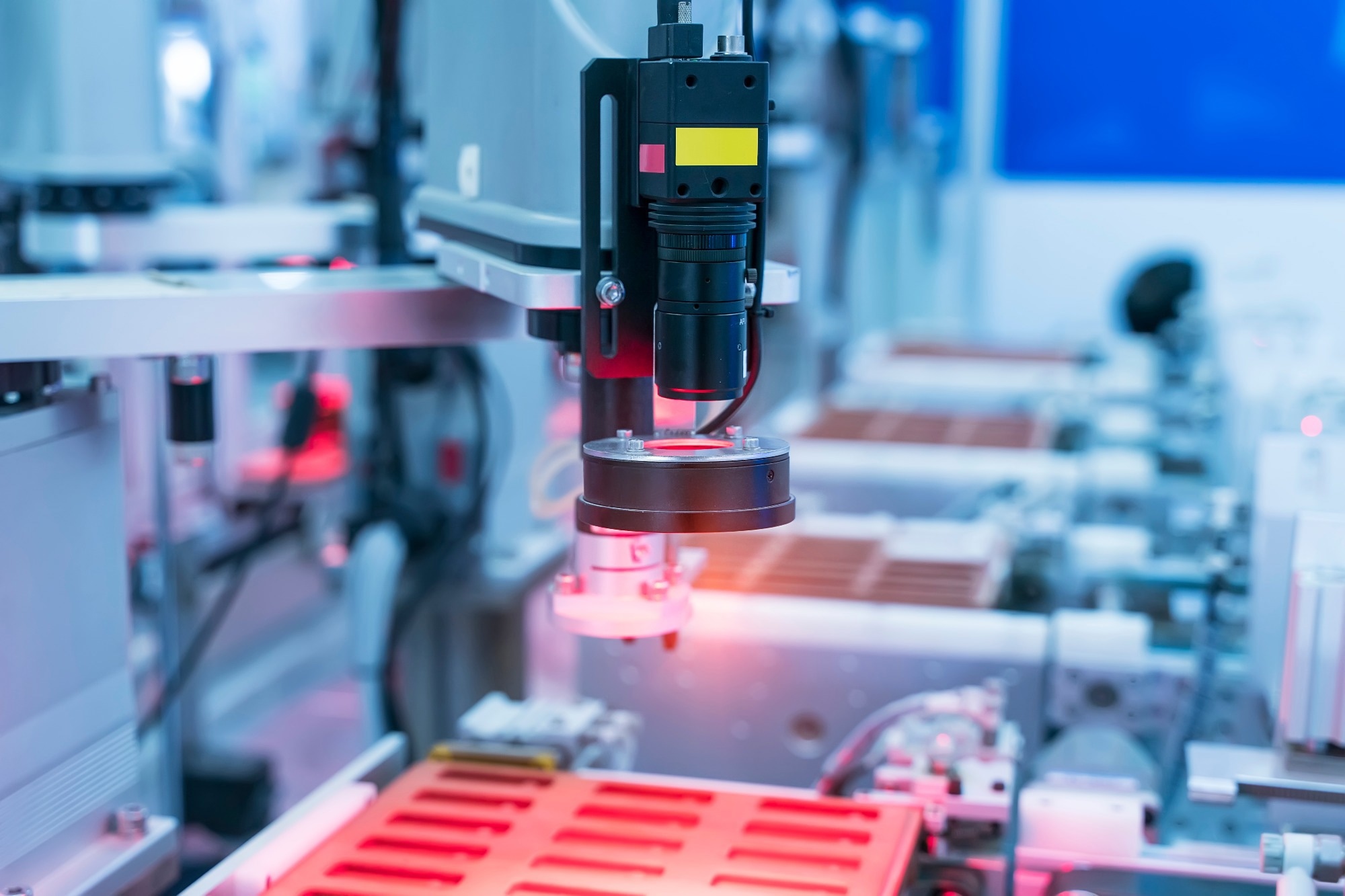

Sensor Technology: From Basics to Breakthroughs

Image Credit: asharkyu/Shutterstock.com

Basics of Sensor Technology

A sensor is a powerful device designed to detect and respond to inputs from the physical environment, translating various environmental phenomena such as light, heat, motion, moisture, or pressure into actionable data. This data, often converted into electrical signals, can be processed, displayed, or stored for further analysis, enabling a wide array of applications in real-time monitoring and automation.1

Key properties of sensors include:

  • Sensitivity: The extent to which a sensor can detect minute changes in the input.
  • Range: The breadth of input values that the sensor can accurately measure.
  • Resolution: The smallest detectable change in the input parameter, reflecting the precision of the sensor.
  • Accuracy: The degree of closeness between the sensor’s output and the actual value of the input being measured.
  • Response Time: How quickly the sensor can react to changes in the input, crucial for time-sensitive applications.

Types of Sensors and Their Operating Principles

Sensors can be classified based on the type of data they collect or the physical phenomena they measure. This section breaks down the major types of sensors and their operating principles.

Mechanical Sensors

Mechanical sensors measure parameters such as pressure, force, and strain by detecting mechanical deformation. A key example is the strain gauge, which operates based on the piezoresistive effect — when a material deforms, its electrical resistance changes proportionally to the applied stress, allowing accurate measurement of strain.

Pressure sensors often use silicon diaphragms, and they detect pressure changes by measuring the displacement caused by pressure differentials. These are essential in industrial automation and robotics, as well as in automotive applications like monitoring tire pressure and engine performance. In manufacturing, they provide real-time feedback on machine performance, ensuring operational safety and efficiency.1

Thermal Sensors

Thermal sensors detect temperature or thermal energy by sensing changes in heat or temperature gradients. Thermocouples, for instance, leverage the Seebeck effect, which generates a voltage when two dissimilar metals experience a temperature difference.

Infrared (IR) sensors detect infrared radiation emitted by objects, often using thermopiles or bolometers, which convert infrared radiation into measurable heat changes. These sensors are integral in applications like motion detection, thermal imaging, HVAC systems, and night vision, and they also play a critical role in industrial systems, helping to prevent equipment overheating and improve energy efficiency.1

Biological Sensors

Biosensors are designed to detect biological substances, such as enzymes, antibodies, or microorganisms, and convert biological reactions into electrical signals. These sensors integrate a biological recognition element (such as an enzyme or antibody) with a transducer, which can be electrochemical, optical, or piezoelectric, depending on the application.1

In healthcare, biosensors are crucial for monitoring glucose levels in diabetic patients, detecting pathogens, and enabling point-of-care diagnostics. They are also used in environmental monitoring to detect contaminants in water or soil. The choice of recognition elements, like antibodies for specificity or enzymes for catalytic activity, adds versatility to biosensor applications in personalized medicine and environmental protection.1

Biosensors: An Overview

Optical Sensors

Optical sensors measure the interaction of light with a target material to detect changes in its properties. Photodetectors, such as photodiodes, convert light into electrical signals and are widely used in camera systems, motion detection, and environmental light monitoring.2

Fiber optic sensors, which operate by transmitting light through optical fibers, are highly sensitive to changes in pressure, temperature, or strain. They are particularly valued in environments where electromagnetic interference would disrupt electronic sensors, such as underwater, high-voltage, or remote sensing applications. Optical sensors are pivotal in telecommunications, medical diagnostics, and precision measurements, offering high sensitivity and immunity to environmental noise.2

Chemical Sensors

Chemical sensors detect and analyze the chemical composition of a sample by measuring changes in physical properties such as electrical resistance, pH, or conductivity. Gas sensors, for instance, use semiconductor or electrochemical sensing elements to detect gases like carbon monoxide or methane. These sensors work by measuring the change in electrical resistance or conductivity when exposed to target gases.

pH sensors, commonly using glass electrodes or ISFET (Ion-Sensitive Field Effect Transistor) technology, measure the hydrogen ion concentration in solutions. They are used in various fields, including agriculture, biotechnology, and environmental monitoring. Chemical sensors are critical for real-time environmental monitoring, industrial safety (e.g., detecting toxic gas leaks), and medical diagnostics (e.g., blood gas analysis).3

Recent Breakthroughs in Sensor Technology

Recent advancements in sensor technology are revolutionizing fields like medical imaging, environmental monitoring, and wearable health devices. From quantum sensors for brain mapping to self-powered Internet of Things (IoT) nodes and stretchable sweat-monitoring patches, these innovations are setting new standards for data accuracy and sustainability.

Quantum Magnetometry for Brain Imaging

A recent study published in Scientific Reports demonstrated the potential of quantum sensors in medical imaging. Using optically pumped magnetometers (OPMs), the team was able to record high-resolution brain activity without the need for invasive procedures. Unlike superconducting quantum interference devices (SQUIDs), OPMs do not require cryogenic conditions, allowing sensor heads to be placed closer to the brain, improving both spatial and temporal resolution.

In experiments measuring visually evoked brain fields (VEFs), OPMs demonstrated a twofold improvement in temporal resolution compared to SQUIDs. This enhanced precision in both space and time offers new possibilities for real-time mapping of brain function, with potential applications in neurophysiological studies of both healthy individuals and those with neurological disorders.4

Self-Powered Sensor for Environmental Monitoring

In another breakthrough, researchers developed a self-powered IoT sensing node using a triboelectric nanogenerator (TENG), as published in Nano Research. The wind-powered TENG (W-TENG) harnesses low-frequency mechanical energy from wind, converting it into a stable 2.5 V direct current sufficient to power the IoT node for continuous operation.

Once the stored energy reaches 4.4 V, the sensor activates and transmits environmental data, such as temperature and pressure, to the cloud via narrowband IoT (NB-IoT). Operating efficiently at wind speeds of 8.4 m/second, this system transmits data every 30 seconds, offering a sustainable solution for remote environmental monitoring applications while reducing reliance on external power sources.

Wearable Patch Sensor for Health Monitoring

In another study published in ACS Sensors, scientists introduced a stretchable sweat-monitoring patch designed for continuous health monitoring. The patch, made from thermoplastic polyurethane nanofiber textiles and silica nanoparticles, effectively collects sweat during physical activity and performs multiplexed colorimetric analysis to measure pH and ion concentrations.

The patch integrates seamlessly with the skin, compensating for variable lighting conditions using reference color markers. Data from the patch can be accessed in real-time via smartphones, offering promising applications in advanced health monitoring, clinical diagnostics, and sports performance optimization.6

Advancements in Sensor Technology: What to Expect by 2030

Challenges in Sensor Development

Despite significant advancements, sensor technology continues to face several key challenges, especially as the demand for more compact, integrated systems grows. This is particularly true for portable and wearable devices, where the challenge lies in maintaining high sensor performance while minimizing size. As sensors become smaller, incorporating multiple functions—such as sensing, processing, and communication—into a single platform becomes increasingly difficult, often requiring innovative materials and microfabrication techniques.7

Another major challenge is ensuring high data accuracy in environments prone to noise and interference. Many sensors operate in complex settings with numerous sources of signal disruption, such as electromagnetic interference in industrial environments or overlapping signals in dense IoT networks. Addressing these challenges often requires advanced filtering algorithms and signal processing techniques, like Kalman filtering or Fourier transforms, to minimize noise and enhance the reliability of the collected data.

Power consumption is another critical hurdle, particularly for sensors with wireless communication capabilities. While self-powered sensors using technologies like energy harvesting are promising, many high-performance sensors still require significant power, limiting their longevity in remote or energy-constrained environments. Reducing power consumption while maintaining performance is essential to expand the applications of these sensors, especially in fields like environmental monitoring, healthcare wearables, and industrial IoT systems.7

Key Players

The sensor technology market is shaped by a mix of established industry giants and innovative startups. Leading companies like Bosch Sensortec, Honeywell, and STMicroelectronics dominate with cutting-edge advancements in microelectromechanical systems (MEMS), pressure sensors, and industrial automation solutions. STMicroelectronics, in particular, is known for its work in MEMS, sensor hubs, environmental and temperature sensors, microphones, and touch and proximity sensors, enabling precise motion, environmental, and pressure sensing. Its sensors are widely used in applications ranging from automotive systems to smart devices, where they support gesture recognition and wearable technologies.

Texas Instruments and Analog Devices are at the forefront of wireless and precision sensing technologies, supplying critical components to industries such as automotive, healthcare, and consumer electronics. Their expertise in developing high-precision sensors has made significant contributions to autonomous vehicles, medical devices, and smart infrastructure.

Startups like Nanowear are also making notable strides in wearable biosensing technology, especially in healthcare applications. Nanowear’s work on fabric-based biosensors for monitoring health conditions highlights the growing importance of wearable technology in personalized medicine and continuous health monitoring.

Future Prospects and Conclusion

The future of sensor technology is set to bring even more developments. Neuromorphic sensors, for example, are designed to mimic the human brain's processing capabilities, enabling faster and more efficient interpretation of complex data. These sensors could transform fields like robotics and autonomous systems, where rapid decision-making and adaptation are critical. In addition, advancements in flexible and stretchable sensors will drive new applications in wearable technology, healthcare, and smart textiles. These sensors, capable of bending and conforming to various surfaces, will enable more accurate and continuous health monitoring, as well as innovations in soft robotics and interactive devices.

In conclusion, sensor technology has rapidly evolved from basic measurement tools into integral systems that power innovations across industries. From quantum sensors pushing the frontiers of medical imaging and scientific exploration to self-powered, wireless networks revolutionizing environmental monitoring, the possibilities are vast. As research continues, sensors will play an even more pivotal role in shaping the future of technology. Their impact on improving data accuracy, reducing power consumption, and enabling seamless integration into everyday devices ensures they will remain at the forefront of technological progress.

References and Further Reading

  1. Javaid, M. et al. (2020). Sensors for daily life: A review. Sensors International, 2, 100121. DOI:10.1016/j.sintl.2021.100121. https://www.sciencedirect.com/science/article/pii/S2666351121000425
  2. Elsherif, M. et al. (2022). Optical Fiber Sensors: Working Principle, Applications, and Limitations. Advanced Photonics Research, 3(11), 2100371. DOI:10.1002/adpr.202100371. https://onlinelibrary.wiley.com/doi/full/10.1002/adpr.202100371
  3. Khatib, M. et al. (2022). Sensors for Volatile Organic Compounds. ACS Nano. DOI:10.1021/acsnano.1c10827. https://pubs.acs.org/doi/full/10.1021/acsnano.1c10827
  4. Gialopsou, A. et al. (2021). Improved spatio-temporal measurements of visually evoked fields using optically-pumped magnetometers. Scientific Reports11(1). DOI:10.1038/s41598-021-01854-7. https://www.nature.com/articles/s41598-021-01854-7
  5. Qin, Y. et al. (2023). Self-powered Internet of Things sensing node based on triboelectric nanogenerator for sustainable environmental monitoring. Nano Research. DOI:10.1007/s12274-023-5689-8. https://link.springer.com/article/10.1007/s12274-023-5689-8
  6. Zhang, K. et al. (2021). Stretchable and Superwettable Colorimetric Sensing Patch for Epidermal Collection and Analysis of Sweat. ACS Sensors6(6), 2261–2269. DOI:10.1021/acssensors.1c00316. https://pubs.acs.org/doi/full/10.1021/acssensors.1c00316
  7. Comini, E. (2021). Achievements and Challenges in Sensor Devices. Frontiers in Sensors, 1, 607063. DOI:10.3389/fsens.2020.607063. https://www.frontiersin.org/journals/sensors/articles/10.3389/fsens.2020.607063/full
