Nov 7 2012
Pulse Electronics Corporation, a provider of electronic components, announces the latest addition to the Sidewinder®product line-up, the PA3209NL.

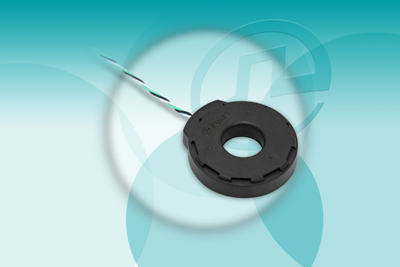

Sidewinder PA3209NL current sensor
Responding to customer requests to extend this sensor technology to a wider range of their applications, Pulse has created this larger inner diameter product to accommodate current carrying conductors up to 0.750 inches (19.05mm) in diameter, or the industry standard 0.750 in. x 0.093 in. (19.05mm x 2.36mm) buss bar. With a dynamic range of 0.10 to more than 1000 Amps, this sensor provides extremely accurate measurement of AC current at 50 Hz or 60 Hz in smart meters, industrial motor controls, and power line monitoring applications. Pulse’s Sidewinder sensor handles the full current measurement capabilities of the traditional current transformer, at a lower price point and no saturation limits.
“The Sidewinder is a breakthrough in power sensing technology,” said Glenn Roemer, field application engineer, Pulse Electronics. “It differs from traditional current sense transformers because of its coreless design. This makes it lighter, easier to assemble, and less expensive. By adding a larger inner diameter to the Sidewinder family, a larger buss bar can pass through the sensor, enabling it to measure 1000 Amps and higher.”
The Sidewinder PA3209NL current sensor meets ANSI C12.20 accuracy class 0.2 and IEC 62053-22 class 0.2 as well as the Class 1 requirement for immunity to external AC magnetic fields. It is completely immune to external DC magnetic fields. The PA3209NL takes its place among an existing line-up of Sidewinder products capable of sensing up to 40Amps (PA3206NL), 120 Amps (PA3208NL), and 200Amps (PA3202NL). The sensors are packaged in trays with a price of approximately $2.45 each in quantities of ten thousand. Lead time is 8-10 weeks. The product is available immediately.
Source: http://www.pulseelectronics.com/
