Thru-Hole Mountable Pressure Monitoring Device – PMD Series

The PMD Series is a thru-hole mountable pressure monitoring device that is ideal for low to medium pressure applications.

Company: Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to develop high performing solutions for a range of applications and industries.

Technology: Merit Sensor utilizes a piezoresistive Wheatstone bridge in a design that anodically bonds glass to a chemically etched silicon diaphragm. All products are RoHS compliant.

Sentium: Merit Sensor products add a proprietary Sentium® technology, designed to provide a best-in-class operating temperature range (-40 °C to 85 °C) and excellent stability.

Capabilities: Merit Sensor designs, engineers, fabricates, dices, assembles, and tests products from an advanced facility near Salt Lake City, Utah.

Features

  • Range - 5 to 50 psi (0.34 to 3.5 bar; 34.5 to 345 KPa)
  • Media - Clean, dry air and non-corrosive gases
  • Type - Absolute, gage
  • Packaging - Trays
  • Customization - Sensitivity, bridge, resistance, constraint, etc.

Benefits

  • Performance - Enjoy top level performance with Merit’s proprietary Sentium® technology
  • Cost - Save money over time with high-performing die
  • Security - Feel self-assured conducting business with a highly-skilled company backed by a solid parent company (NASDAQ: MMSI)
  • Speed - Enter the market quickly with creative and versatile solutions
  • Service - Experience professional, prompt, and personal support

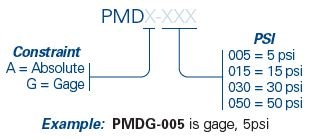

PMD Series Part Number Configurator

PMD Series Part Number Configurator

PMD Series Standard Part Number


PMDG-005 PMDA-015 PMDG-050
PMDG-015 PMDG-030 PMDA-050
  PMDA-030

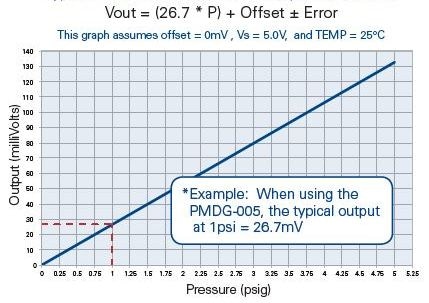

Typical Transfer Function (Sensor pn PMDG-005)

Typical Transfer Function

Specifications

Parameter Minimum Typical Maximum Units Notes
Electrical & Environmental
Excitation (In)   5 15 V Maximum: 3 mA
Impedance 4000 5000 6000 Ω
Operating Temperature -40   85 °C
Storage Temperature -55   100 °C
Mechanical
Barb Torque Shear 22     lbf See barb drawing
Barb Torque Shear – Post Exposure 16     lbf 60 °C for 7 days @ 95% RH
Performance
Offset -5 0 5 mV/V Zero pressure; gage only; @ 25 °C
Non-linearity -0.25 0 0.25 % FSO Best Fit Straight Line; @ 25 °C
Pressure Hysteresis -0.1 0 0.1 % FSO @ 25 °C
Temp Coeff – Zero -25 0 25 μV/V/°C -40 °C to 85 °C
Temp Coeff – Resistance 2500 3100 3500 PPM/°C -40 °C to 85 °C
Temp Coeff – Sensitivity -1500 -2000 -2500 PPM/°C -40 °C to 85 °C
Thermal Hysteresis -0.1 0 0.1 % FSO Zero pressure
Long-Term Stability -0.1 0 0.1 % FSO
Burst Pressure 10X       Full scale pressure
Full-Scale Output (@ 5 volts excitation)
5 psi (0.34 bar; 34.5 KPa) 107 133 160 mV Additional outputs available upon request
15 psi (1 bar; 103 KPa) 120 150 180 mV
30 psi (2.1 bar; 207 KPa) 128 160 192 mV
50 psi (3.5 bar; 345 KPa) 107 133 160 mV

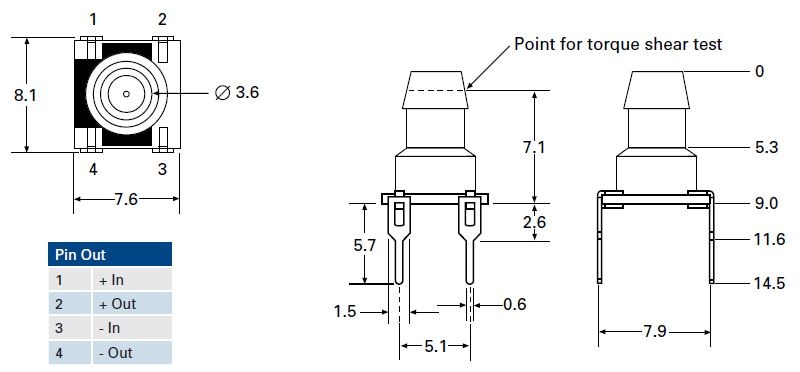

Dimensions and Electrical (millimeters)
