TireScan™ Pressure Imaging System for Tire Tread Analysis

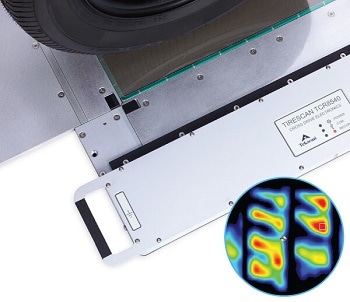

The TireScan™ VersaTek™ system is a series of devices from Tekscan that can measure and record tire footprint pressure patterns. The tire footprints are recorded statically or dynamically using the TireScan™ VersaTek™ system, and results are displayed in color, at a high resolution. Different sizes can be measured using modular ruggedized electronics and base plates that have been configured with relevant sensor models.

The system's easy-to-use graphic and image analysis software enables quantitative and qualitative analysis of tire footprints in specific applications.

Key features of the TireScan™ VersaTek™ systems include:

  • The ability to produce graphs and analyze data
  • Sensors that are durable and can be reused
  • A rapid testing process which requires no ink, paper or scanning
  • Flexible recording and playback or results
  • Production of customized reports - quick and easy for the user
  • Reliable and repeatable measurements

General Sensor Specifications

. .
Sensor Technology Resistive
Accuracy ± 5%
Pressure Range 0-4,100 kPa (0-600 psi)
Thickness 0.2 mm (0.008 in.) Not compressible



Tire tread analysis of aircraft, agriculture, bus, small trucks, and passenger automobiles can be carried out using the TireScan™ VersaTek™ system using the different configuration options.

Passenger, Bus & Small Truck


Key Features:

  • VersaTek ruggedized data acquisition electronic enclosures
  • VersaTek 8-Port Hub
  • Leading and trailing drive plates that provide a smooth ride across the sensor
  • Equilibration Device - PB100T
  • TVR8404
  • TVR8406
  • TVR8408


Aircraft, Agricultural, Truck, and Bus


The Ruggedized TireScan system includes:

  • VersaTek Rugged Enclosures
  • VersaTek 8-Port Hub
  • Equilibration Device
  • PB100H (for use with sensor #8001)
  • PB100N (for use with sensor #7202)


Please note that components rely on system configuration and extra items may be included with your system purchase.


There are a number of tactile pressure sensors to choose from for the analysis of agriculture, passenger, OTR, truck and mining tires. Tactile pressure sensors and pressure ranges can be customized to meet users’ specific application needs. The most popular selections are shown below:

Passenger, Bus and Small Truck

System Name TVR8404 TVR8406 TVR8408
Sensor Model # 8404 8406 8408
Sensing Area 268.2 mm x 317 mm

(10.56 in. x 12.48 in.)

268.2 mm x 317 mm

(10.56 in. x 12.48 in.)

402.3 mm x 433.2 mm

(15.84 in. x 433.2 in.)

# of Sensing Elements 36,608 82,368 133,408
Spatial Resolution (X,Y) 1.5 mm x 1.5 mm

(0.060 in. x 0.060 in.)

1.0 mm x 1.0 mm

(0.040 in. x 0.040 in.)

1.1 mm x 1.1 mm

(0.045 in. x 0.045 in.)

Standard Pressure Range 300 psi 300 psi 300 psi
Scanning Rate (Hz) 106 71 29
# of Handles 4 6 8
System Weight 35.58 lbs. 39.55 lbs. 43.52 lbs.
Visual Output Tekscan Tekscan Tekscan


Aircraft, Agricultural, Truck, and Bus

System Name TVR7202Q TVR7105Q TVR7202 TVR7105 TVR8001
Sensor Model # 7202Q 7105Q 7202 7105 8001
Sensing Area 1,415 mm x 1,259 mm

(55.72 in. x 49.56 in.)

899.2 mm x 1,061.7 mm

(35.40 in. x 41.80 in.)

704.1 mm x 625.9 mm

(27.72 in. x 24.6 in.)

447 mm x 528.3 mm

(17.6 in. x 20.8 in.)

292.6 mm x 268.2 mm

(11.52 in. x 10.56 in.)

# of Sensing Elements 34, 848 36,996 8,712 9,152 8,448
Spatial Resolution (X,Y) 7.1 mm x 7.1 mm

(0.28 in. x 0.28 in.)

5.0 mm x 5.0 mm

(0.2 in. x 0.2 in.)

7.1 mm x 7.1 mm

(0.28 in. x 0.28 in.)

5.0 mm x 5.0 mm

(0.2 in. x 0.2 in.)

3.0 mm x 3.0 mm

(0.120 in. x 0.120 in.)

Standard Pressure Range 300 & 600 psi 300 psi 300 & 600 psi 300 psi 300 psi
Scanning Rate (Hz) 191 160 191 160 173
# of Handles 8 8 4 2 2
System Weight 20.31 lbs. 20.32 lbs. 6.91 lbs. 6.91 lbs. 6.66 lbs.
Visual Output Tekscan Tekscan Tekscan Tekscan Tekscan



Analyze Tire Footprint Pressure Profiles

TireScan™ allows for an easier and more thorough analysis using Tire Footprint Pressure Profiles. Images generated from the pressure distribution data are available in various formats, and data can be likewise transferred as a Word file or CSV, giving the user flexibility to customize reports from their corresponding tire data.



In addition to English, TireScan software is available in a range of other languages such as German, French and Spanish.


Tekscan’s TireScan software can be used in a variety of applications, including:

  • Road surface predictive wear studies
  • Tire footprint pressure pattern evaluation
  • Analyze various tire compounds and tread designs
  • Assess suspension and camber
  • Competitive benchmarking
  • Sipe and tread block design and testing
  • Tire mold adjustment
  • Race vehicle "set-up."
  • Manufacturing quality assurance

Map Footprint in Static or Dynamic Applications

Static Load

Static Load

Dynamic Rolling (portable for track testing)

Dynamic Rolling (portable for track testing)
