When used in conjunction with the Arc SU Module (separately available), Hamilton OneFerm Arc compatible Single Use pH sensors enable direct connectivity. The sensor’s measurement data is converted to a Modbus RTU signal or an industry-standard 4–20 mA signal before being fed into the bioreactor’s control system. Through ArcAir software, Arc offers wired and wireless configuration options.
Source: Hamilton Process Analytics
| Part # / Ref |
Sensor Family |
Electrical Connector |
a-length |
Temperature Sensor |
| 10065001 |
OneFerm |
VP6 |
160 mm |
NTC 22 kOhm |
| 10155128 |
OneFerm |
-- |
-- |
-- |
| 243235 |
OneFerm |
VP6 |
70 mm |
NTC 22 kOhm |
| 243236 |
OneFerm |
VP6 |
120 mm |
NTC 22 kOhm |
| 243237 |
OneFerm |
VP6 |
225 mm |
NTC 22 kOhm |
| 243238 |
OneFerm |
VP6 |
325 mm |
NTC 22 kOhm |
| 243239 |
OneFerm |
VP6 |
425 mm |
NTC 22 kOhm |
| 243462 |
OneFerm |
-- |
-- |
-- |
Required Accessories

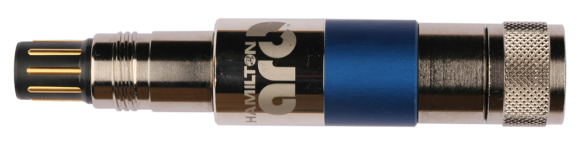

Arc Module SU pH
Image Credit: Hamilton Process Analytics
For single-use applications, the Arc Module is used with the specific OneFerm pH sensors to monitor pH levels.

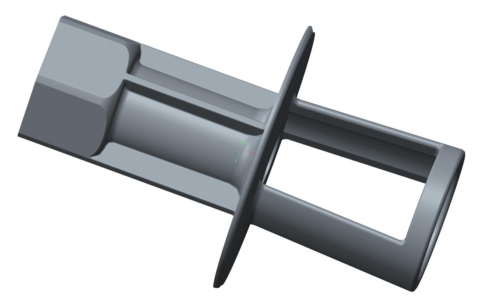

pH Port for OneFerm
Image Credit: Hamilton Process Analytics
The OneFerm pH 70 mm sensor is connected to the pH Port, a single-use connector. It can be included in the single-use container for a port and sensor application only.

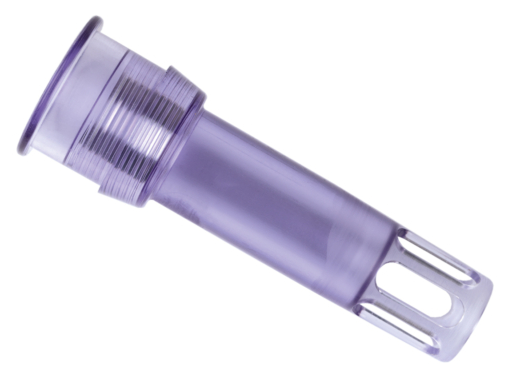

pH Insert T
Image Credit: Hamilton Process Analytics
The OneFerm pH 70 mm sensor is compatible with the pH Insert T, a single-use connector. For a single pH Insert T and sensor application, it can be fitted into a single-use container.
Other Accessories

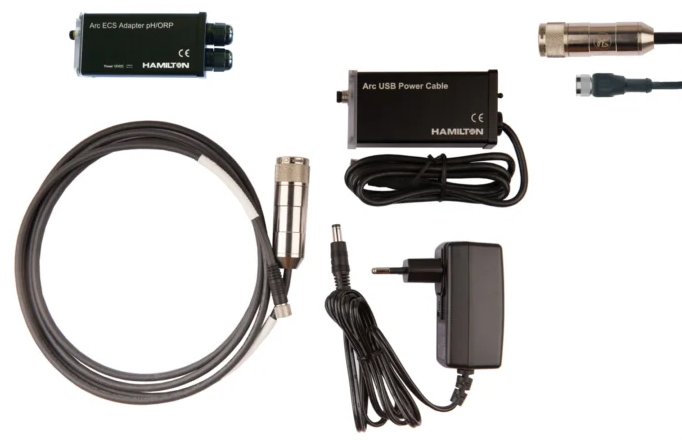

Arc Sensor Cables
Image Credit: Hamilton Process Analytics
M12 or Variopin connectors are included with genuine Hamilton cables for Hamilton Arc sensors. The Arc sensor is programmed using these cables, which are also utilized for direct connections to the bioreactor or control system.

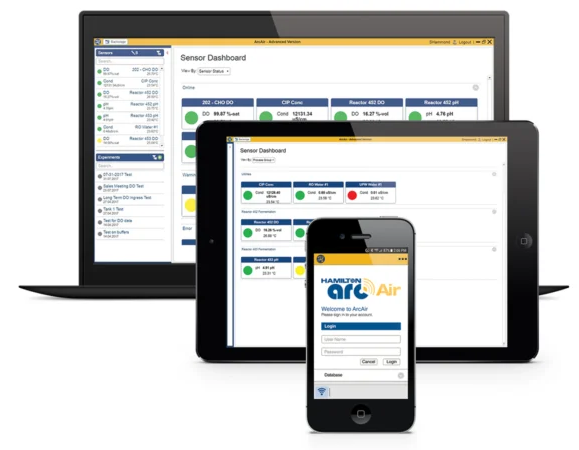

Arc Software and Accessories
Image Credit: Hamilton Process Analytics
ArcAir Software and wireless accessories can streamline common operations for Arc sensors, such as calibration and configuration.
