OneFerm Single Use Glass Sensor for pH Measurement

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy

The Hamilton OneFerm is a glass pH sensor intended for single use. After dry storage and gamma irradiation, it maintains the high accuracy performance of a glass electrode. To make it easier to use, it is supplied as an integrated part of a single-use container. Only integrators like producers of downstream skids, bioreactors, and single-use bags have access to the OneFerm pH sensor.

Source: Hamilton Process Analytics

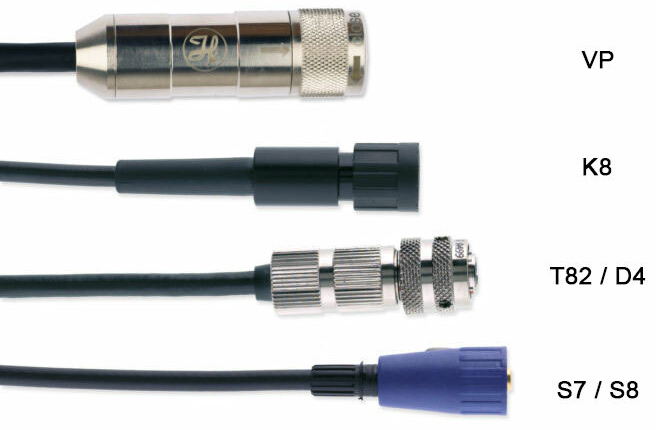

Part # / Ref	Sensor Family	Electrical Connector	a-length	Temperature Sensor
10064894	OneFerm	VP6	160 mm	Pt100
10089592	OneFerm	VP6	425 mm	Pt1000
10101065	OneFerm	VP6	425 mm	Pt100
10106075	OneFerm	K8	160 mm	No
10108674	OneFerm	VP6	160 mm	Pt1000
10155128	OneFerm	--	--	--
243216	OneFerm	VP6	70 mm	Pt100
243217	OneFerm	VP6	120 mm	Pt100
243218	OneFerm	VP6	225 mm	Pt100
243219	OneFerm	VP6	325 mm	Pt100
243266	OneFerm	VP6	70 mm	Pt1000
243267	OneFerm	VP6	120 mm	Pt1000
243268	OneFerm	VP6	225 mm	Pt1000
243269	OneFerm	VP6	325 mm	Pt1000
243271	OneFerm	K8	120 mm	No
243272	OneFerm	K8	225 mm	No
243273	OneFerm	K8	325 mm	No
243274	OneFerm	K8	425 mm	No
243462	OneFerm	--	--	--

Required Accessories

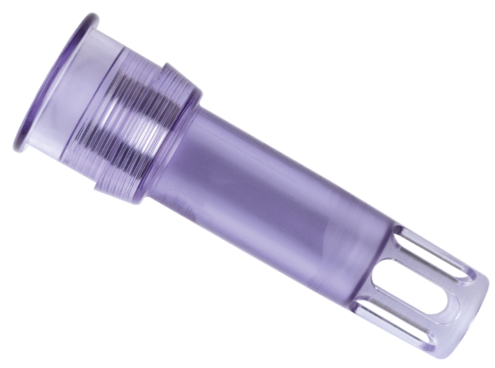

pH Port for OneFerm

OneFerm Single Use Glass Sensor for pH Measurement

Image Credit: Hamilton Process Analytics

The OneFerm pH 70 mm sensor is connected to the pH Port, a single-use connector. It can be included in the single-use container for a port and sensor application only.

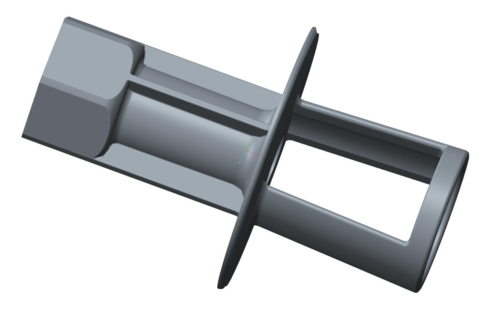

pH Insert T

OneFerm Single Use Glass Sensor for pH Measurement

Image Credit: Hamilton Process Analytics

The pH Insert T is a single-use attachment for the OneFerm pH 70 mm sensor. It can be fitted into a single-use container for a pH Insert T and sensor application.
