The EasyFerm Plus pH sensors equipped with Memosens offer the benefits of digital sensor technology and Hamilton's pre-pressurized reference technology. These sensors are fully interoperable with all Memosens input transmitters available in the market.

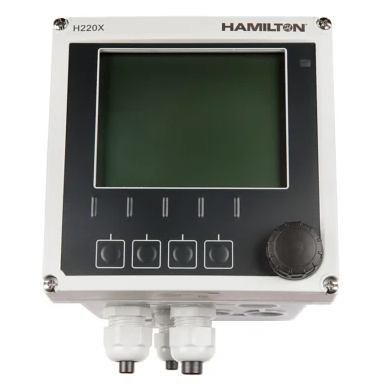

Alternatively, the Hamilton H220X transmitter is available, providing a Memosens digital sensor input with local display and approval for use in hazardous areas.
Here is a list of the most commonly recommended EasyFerm Plus Memosens sensors.
Source: Hamilton Process Analytics
| Part # / Ref |
Sensor Family |
a-length |
Parameter |
Electrical Connector |
Sensor Output |
| 238633-1413 |
EasyFerm Plus |
120 mm |
pH |
Memosens |
Memosens |
| 238633-1423 |
EasyFerm Plus |
160 mm |
pH |
Memosens |
Memosens |
| 238633-1433 |
EasyFerm Plus |
200 mm |
pH |
Memosens |
Memosens |
| 238633-1443 |
EasyFerm Plus |
225 mm |
pH |
Memosens |
Memosens |
| 238633-1453 |
EasyFerm Plus |
325 mm |
pH |
Memosens |
Memosens |
| 238633-1463 |
EasyFerm Plus |
360 mm |
pH |
Memosens |
Memosens |
| 238633-1473 |
EasyFerm Plus |
425 mm |
pH |
Memosens |
Memosens |
| 238633-2413 |
EasyFerm Plus |
120 mm |
pH |
Memosens |
Memosens |
| 238633-2423 |
EasyFerm Plus |
160 mm |
pH |
Memosens |
Memosens |
| 238633-2433 |
EasyFerm Plus |
200 mm |
pH |
Memosens |
Memosens |
| 238633-2443 |
EasyFerm Plus |
225 mm |
pH |
Memosens |
Memosens |
| 238633-2453 |
EasyFerm Plus |
325 mm |
pH |
Memosens |
Memosens |
| 238633-2473 |
EasyFerm Plus |
425 mm |
pH |
Memosens |
Memosens |
Accessories

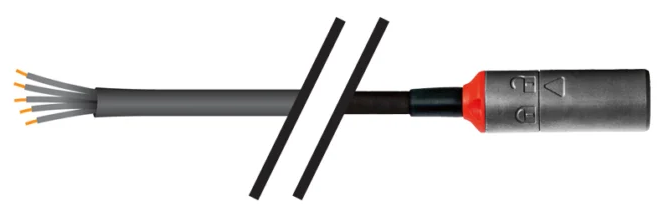

MemoSens Cables
MemoSens cables with open-end wiring are designed to establish connections between users' Hamilton MemoSens pH/ORP sensors and controllers or transmitters.
Image Credit: Hamilton Process Analytics
Memosens Transmitters
Memosens sensors necessitate dedicated transmitters that have been purposefully designed to facilitate inductive connections and proprietary digital communication control.
Image Credit: Hamilton Process Analytics

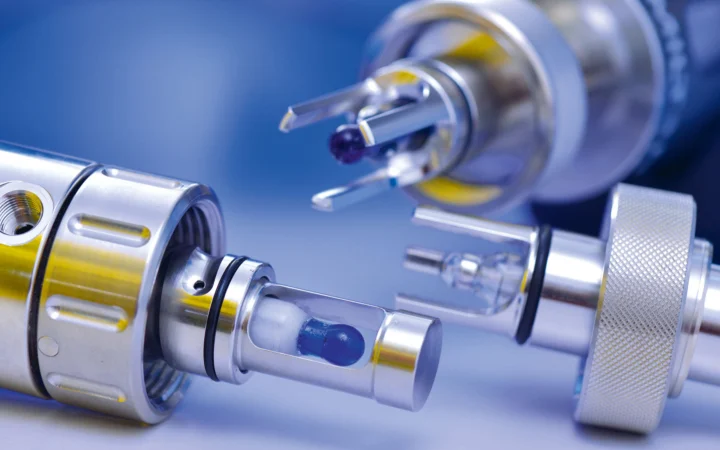

Housings-Flowcells-Sockets
Users might have concerns about how to integrate the sensor into their specific process. Hamilton offers a variety of options, including stretchable and static housings, retractable housings, flow cells, and weld-in sockets, designed to accommodate diverse applications and installation requirements.
Image Credit: Hamilton Process Analytics

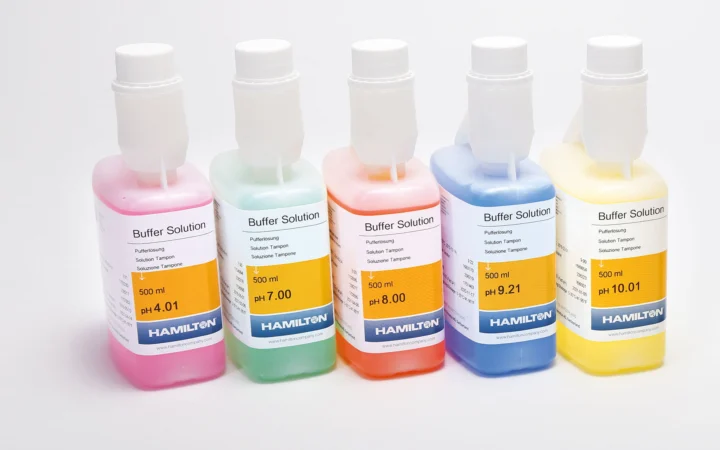

DuraCal pH Buffer Solutions
The patented buffer solutions ensure pH stability for an extended period of up to five years. With their high buffering capacity, they enable fast and reliable calibration, ensuring accuracy and consistency.
Image Credit: Hamilton Process Analytics
