The K600 Platform Control System provides the reliability that is required in demanding applications such as Mobile Elevating Work Platforms; the K600 is dedicated to the full control of slab self-propelled scissor lifts. The two main components of the K600 Kit are the P610 (Platform Control Unit) and the E600 (Electronic Control Unit).
The two units are thought to be the building blocks of the system, enabling it to connect to a variety of digital and analog machine interfaces such as joysticks, sensors, limit switches, LEDs, motor controllers, pushbuttons, e-stop, alarms and control them through a CAN bus system.

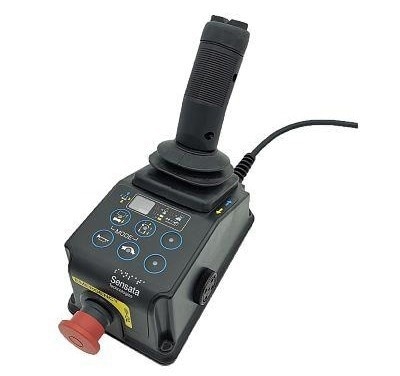

Image Credit: Sensata Technologies, Inc.

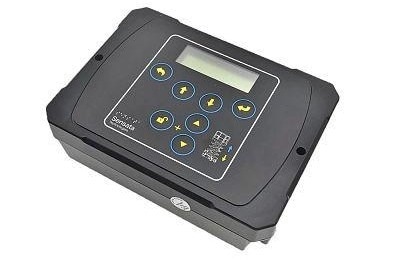

Image Credit: Sensata Technologies, Inc.
Features
- Multi-language display (English, Chinese, Korean)
- CAN communication port, Bluetooth module
- Support Analog current and Analog voltage multiplex Input
- The design complies with BS EN 280-2013 and IEC61508 system level
- Hardware Watchdog
Custom Modifications
- Language
- Configurable analog input ports
- Custom overlay graphics
Specifications
Electrical
Table 1. Source: Sensata Technologies, Inc.
| |
P610 Platform Control Unit |
E600 Electronic Control Unit |
Supply
Ratings |
System Voltage: 12 V or 24 VDC
Voltage Range: 10 V~36 V |
| Max. output voltage: V supply DC |
N/A |
| Certified to CE regulations |
Other
Electrical
Characteristics |
N/A |
Certified to CE regulations ESD: +/- 6 KV Contact,
+/-8 KV Air Discharge per IEC 61000-4-2 Functional |
Mechanical
Table 2. Source: Sensata Technologies, Inc.
| |
P610 Platform Control Unit |
E600 Electronic Control Unit |
| Operating Temperature |
-20 °C to 70 °C |
| Protection Level |
IP65 (after installation) |
IP65 |
| Life |
Joystick > 5 million cycles
Pushbuttons> 1 million cycles |
N/A |
