Amphenol Advanced Sensors has introduced a range of NTC epoxy thermistors.

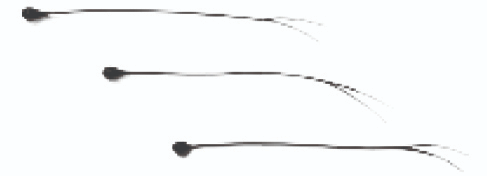

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 65
The Thermometrics Epoxy Type 65 NTC Interchangeable Thermistors are essentially epoxy-coated interchangeable chip thermistors equipped with heavy isomid-insulated nickel lead wires.
The units offer precise temperature measurement, compensation, and control for use across a temperature range of −40 °C to 105 °C (−40 °F to 22 °F) and provide excellent sensitivity that is higher than −4%/ °C at 25 °C (77 °F).
![Thermometrics NTC Thermistors | Epoxy Interchangeable Type 65](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929156031646250.png)

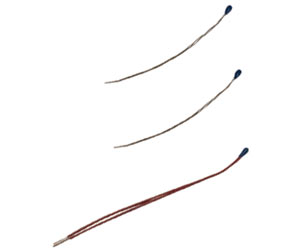

Thermometrics NTC Thermistors | Epoxy Interchangeable Type 95
The Thermometrics Type 95 of NTC Thermistors are interchangeable, epoxy-coated NTC thermistor chips integrated with bare tinned-alloy, bare tinned-copper, or PTFE-insulated lead wires. They are suitable for temperature measurement, compensation, and control for use across a temperature range of −112 °F to 302 °F (−80 °C to 150 °C) with interchangeability down to ±0.18 °F (±0.1 °C).
![Thermometrics NTC Thermistors | Epoxy Interchangeable Type 95](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929156097637829.png)
Thermometrics NTC Thermistors | Epoxy Interchangeable Type SC
The Thermometrics Epoxy Type SC NTC Interchangeable Thermistors are sleeved interchangeable chip thermistors equipped with heavy isomid-insulated nickel lead wires. They offer precise temperature measurement, control, and compensation for use across a temperature range of −40 °C to 105 °C (−40 °F to 221°F) and provide high sensitivity that is greater than −4%/°C at 25 °C (77 °F), rendering them perfect for medical applications.
![Thermometrics NTC Thermistors | Epoxy Interchangeable Type SC](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929156151536703.png)
Thermometrics NTC Thermistors | Epoxy Type C100
The Thermometrics Epoxy Type C100 NTC Thermistors are epoxy-coated chip thermistors fitted with 0.3 mm (0.012″) bare-tinned-copper lead wires. The units are employed for control, temperature measurement, and compensation with a temperature range of −80 °C to 150 °C (−112 °F to 302 °F) and offer high sensitivity that is greater than (−4%/°C at 25 °C (77 °F).
![Thermometrics NTC Thermistors | Epoxy Type C100](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929156228273789.png)
Thermometrics NTC Thermistors | Epoxy Type MS
The Thermometrics Epoxy Type MS NTC Thermistors are epoxy-coated chip thermistors integrated with 0.254 mm (0.01″) nickel PTFE lead wires. They are employed for control, temperature measurement, and compensation with a temperature range of −50 °C to 150 °C (−58 °F to 300 °F).
![Thermometrics NTC Thermistors | Epoxy Type MS](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929156385564504.png)

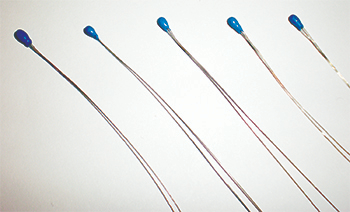

Thermometrics NTC Thermistors | Epoxy Type NDK
The Thermometrics Epoxy Type NDK NTC Thermistors are epoxy-coated chip thermistors with 0.2 mm (0.007″) tinned monel lead wires. The units have been developed for precise temperature measurement, compensation, and control with operation up to 155 °C (311 °F). They are employed in HVAC, automotive and white goods applications.
![Thermometrics NTC Thermistors | Epoxy Type NDK](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929156560579762.png)
Thermometrics NTC Thermistors | Epoxy Type NDL
The Thermometrics Epoxy Type NDL NTC Thermistors are epoxy-coated chip thermistors integrated with bare 0.0098" (0.25 mm) tinned copper lead-wires. The thermistors have been developed for precise temperature measurement, compensation, and control with an operating range of up to 155 °C (311 °F). They are used in HVAC, automotive and white goods applications.
![Thermometrics NTC Thermistors | Epoxy Type NDL](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929157964975282.png)
Thermometrics NTC Thermistors | Epoxy Type NDM
The Thermometrics Type NDM of Epoxy NTC Thermistors is epoxy-coated chip thermistors equipped with bare 0.007" (0.2 mm) tinned copper lead-wires. The units have been developed for precise temperature measurement, compensation, and control with an operating range of up to 155 °C (311 °F). They are used in HVAC, automotive, and white goods applications.
![Thermometrics NTC Thermistors | Epoxy Type NDM](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929158022927507.png)

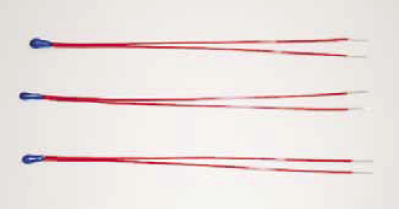

Thermometrics NTC Thermistors | Epoxy Type NDP
The Thermometrics Epoxy Type NDP NTC Thermistors are epoxy-coated chip thermistors equipped with PTFE/PFA-insulated 0.25 mm (0.0078") nickel lead wires. They have been developed for precise temperature measurement, compensation, and control with an operating range of up to 155 °C (311 °F). They are used in automotive, HVAC and white goods applications.
![Thermometrics NTC Thermistors | Epoxy Type NDP](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929158079365029.png)

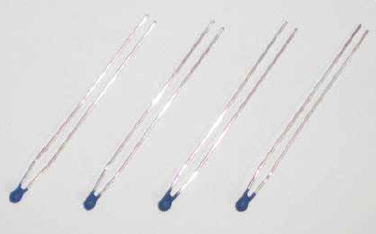

Thermometrics NTC Thermistors | Epoxy Type NK
The Thermometrics Epoxy Type NK NTC Thermistors are epoxy-coated chip thermistors that come with epoxy resin coating and tin-coated steel wires. The units have been developed for precise temperature measurement, control, and compensation. With an operating range of up to 155 °C (311°F), the thermistors are used in automotive, HVAC and white goods applications.
![Thermometrics NTC Thermistors | Epoxy Type NK](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_15929158279788863.png)

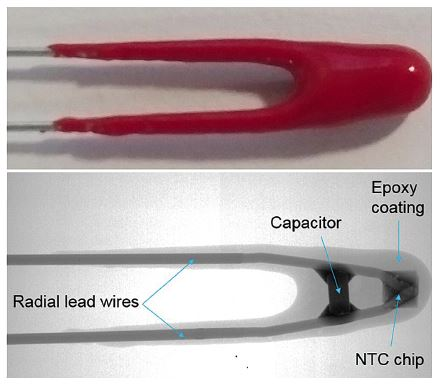

Thermometrics NTC Thermistors | Epoxy Type NKI Noise Immune
The newly designed Thermometrics Epoxy-Coated Type NKI of Noise Immune Thermistors feature a noise-immune NTC thermistor with an incorporated radio frequency (RF) decoupling function. This ensures safety from electromagnetic interference (EMI) at the component level across a broad frequency range.
![Thermometrics NTC Thermistors | Epoxy Type NKI Noise Immune](https://d10lvax23vl53t.cloudfront.net/images/equipments/EquipmentImage_2222_1592915833627994.png)
