Surgical Temperature Sensors from Amphenol

The effects of surgeries and anesthesia on thermoregulation by the human body have increased the need for monitoring temperature during these crucial procedures.

Some common examples of temperature monitoring include the measurement of myocardial temperature during open-heart surgery, cell temperature during laser ablation, or the laser surgical device itself for improved performance and patient comfort.

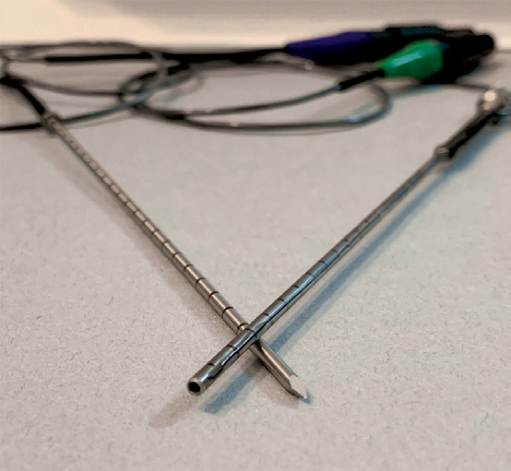

Surgical Temperature Sensors from Amphenol

Image Credit: Amphenol Advanced Sensors

How does Amphenol Help?

Amphenol Advanced Sensors offers a wide range of tiny chip-in-glass or sleeved chip thermistors with fine diameter wires for external attachment to metal lumens used at the time of laser surgery or for insertion into hypodermic needles used for myocardial surgeries.

The interchangeable NTC chip thermistors types MA, SC and A040 from Amphenol have been designed with compact packages to facilitate quick response, while maintaining excellent precision.

Amphenol Advanced Sensors can integrate the NTC thermistors into user-specific designs, thus offering rugged construction and ensuring a prolonged life in adverse clinical settings. This combination facilitates the assembly to realize a precise temperature, delivering important diagnostic data.

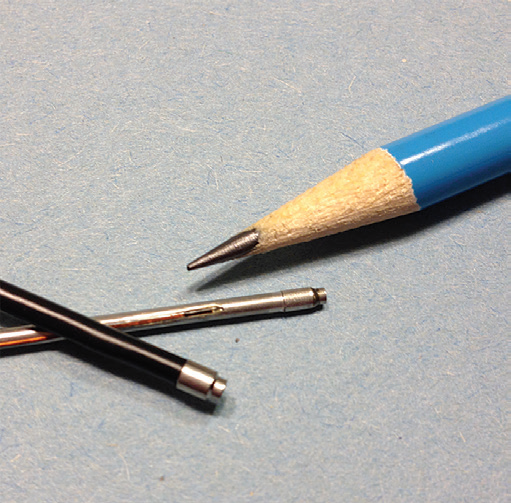

Surgical Temperature Sensors from Amphenol

Image Credit: Amphenol Advanced Sensors

What Makes Amphenol Better?

Apart from its catalog offerings, Amphenol Advanced Sensors can customize unique solutions for its customers. The attention given to thermodynamic properties during the assembly design is crucial for matching the measurement protocol of a specific customer. The expert team at Amphenol Advanced Sensors works with customers to provide sub-assembly, NTC thermistors, or a fully completed device.

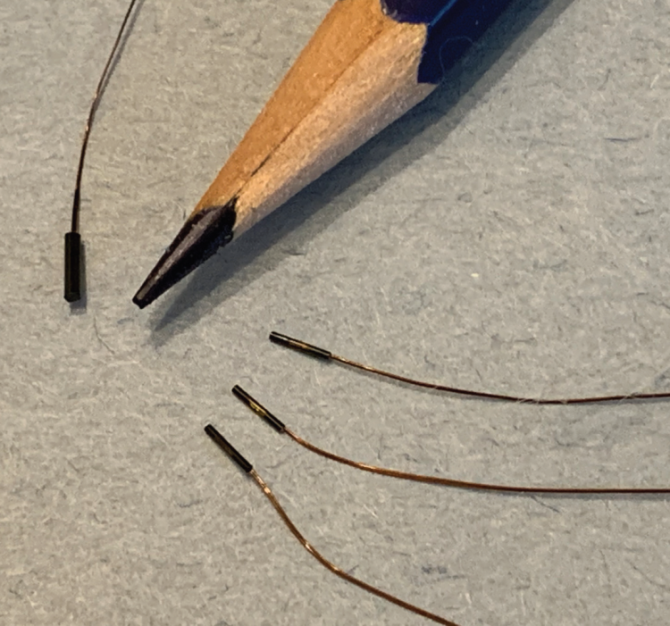

Surgical Temperature Sensors from Amphenol

Image Credit: Amphenol Advanced Sensors

Surgical Temperature Sensors from Amphenol

Image Credit: Amphenol Advanced Sensors

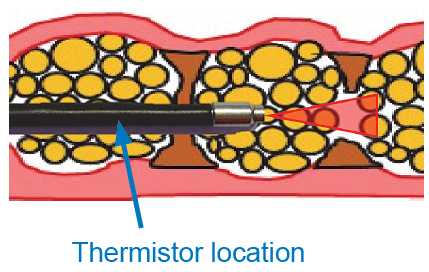

Application Example: Cosmetic Laser Surgery

  • Laser inserted under skin employs heat to discharge the fiber spans that pull down on the skin to produce a smoother look
  • The thermistor feedbacks temperature to modify the laser energy for a more efficient process and improved patient comfort.

Surgical Temperature Sensors from Amphenol

Image Credit: Amphenol Advanced Sensors

NTC Thermistor Product Offerings for Surgical Assemblies

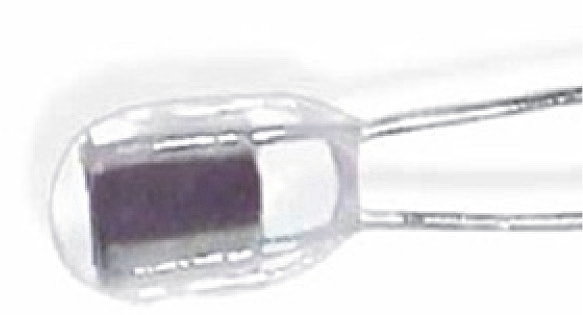

Type GC Series

  • Product prefix: GC
  • Hermetically sealed in glass
  • Nominal OD: 0.011″/0.014″/0.016″/0.032″
  • Type AB style assembly compatible
  • Resistance range at 25°C: 1 K to 200 K ohm
  • 14 K ohm at 37°C 'catheter' curve is available

Surgical Temperature Sensors from Amphenol

Image Credit: Amphenol Advanced Sensors

Type SC Series

  • Product prefix: SC
  • Maximum OD: 0.032″/0.050″
  • Insulated leads
  • Resistance range at 25°C: 2252 (400 Series) to 50 K ohm
  • Interchangeability:
    • ±0.05°C from 35°C to 39°C (A tolerance)
    • ±0.1°C from 0°C to 70°C (V tolerance)
    • ±0.2°C from 0°C to 70°C (W tolerance)

Type A040 Series

  • Product prefix: A040
  • Maximum OD: 0.020″
  • Insulated leads
  • Resistance at 25°C: 2252 ohm (400 Series) and 10 K ohm
  • Interchangeability: ±0.2°C from 10°C to 40°C

Surgical Temperature Sensors from Amphenol

Image Credit: Amphenol Advanced Sensors
