VEGAPOINT 24 has been specifically designed for level detection of very adhesive products and can reliably detect the coverage state even with the strongest buildup due to the intelligent evaluation. The front-flush design means that cleaning can be carried out without spray shadows.

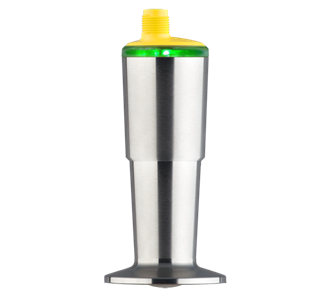

Image Credit: VEGA Grieshaber KG

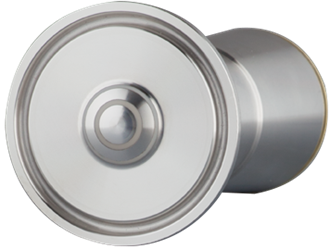

Image Credit: VEGA Grieshaber KG
Image Credit: VEGA Grieshaber KG
Application Area
- DK > 1.5
- Thread ½"
- Valve plug
- Universal adapter G1* for hygiene adapter M12
- IO-Link
- Transistor output
- Wireless operation
- Ex and hygiene approvals
User Benefits
- Adjustable, colored 360° status display
- Low-cost limit switch with smallest installation dimensions
- Easy integration into control systems via IO-Link communication
Application
Other Applications
- Intermediate tank for fish waste treatment: Point-level monitoring in the intermediate tank
- Separator: Pressure and level measurement in the separator
- Yeast separator: Pressure and limit level measurements can be done in the yeast separator
- Filter system for coarse dirt: Differential pressure measurement and point level detection available in filter systems
Technical Specifications
Source: VEGA Grieshaber KG
| . |
. |
| Measuring range – Distance |
- [Meter - Foot] |
| Process temperature |
-40 ... 115 °C [°C - °F] |
| Process pressure |
-1 ... 25 bar [Bar - kPa - psi] |
| Materials, wetted parts |
|
| Threaded connection |
G½ |
| Hygenic fittings |
- Clamp ≥ 2", DN50 - DIN32676, ISO2852
- Clamp ≥ 1" - DIN32676, ISO2852
- Clamp ≥ 1½" - DIN32676, ISO2852
|
| Protection rating |
|
| Output |
- Transistor (NPN/PNP)
- IO-Link
|
| Ambient temperature |
-40 ... 70 °C |
