Pi’s array of Laboratory Charge Analyzers precisely assesses colloidal and ionic charges, employing the streaming current principle (electrokinetic charge), which is akin to zeta potential. These devices are utilized to ascertain the ideal coagulant dosage at water treatment facilities.
The charge demand is determined by titrating to the isoelectric point using the plant's coagulant, a process that can be done manually or with an automated titrator.
Furthermore, when used alongside jar testing, the LabSense helps identify the most effective alkali dosage for soft water applications.

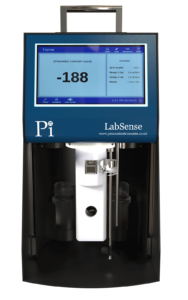

Pi’s LabSense Laboratory Charge Analyzers are user-friendly, adaptable, and consistently deliver highly reproducible charge demand measurements.
Principle of Operation
The LabSense Laboratory Charge Analyzer is often called the ‘5 Minute Jar Tester’. This designation comes from its ability to help users determine the optimal coagulant dosage for peak NTU and TOC reduction, typically in under five minutes. As a result, it is a vital instrument for optimizing coagulation in water treatment processes.
Within the LabSense measurement cell, a reciprocating piston operates within a probe assembly. This probe draws particles and dissolved substances to its exterior through Van der Waals forces.
Counter ions surround these particles, and the probe's motion induces their movement. Electrodes situated within the probe quantify the movement of these counter ions. This measured flow constitutes an electrical current. The electrical current is processed electronically and displayed on the LabSense display as the Streaming Current Value (SCV).
To determine the optimal dosage, introduce a precise volume of coagulant into the raw water sample until the instrument's reading indicates full charge neutralization.
Key Benefits
Standard Features
- Robust housing for easy mobility, quick set-up, and bench-top stability
- Low maintenance, improved reliability
- Detachable probe and piston to facilitate cleaning and prevent corrosion
- Gain control to amplify low-level signals
- Zero offset to customize data sets
- Clear display
- Adjustable stand
- LabTrac – accompanying software for extracting and analyzing titration data
- Sample volume range of 200-2000 ml for greatest accuracy
- Sensitivity adjustment for highly conductive samples
- Measures charge and charge demand
Applications
- Coagulant dose determination in water treatment plants
