Thanks to breakthroughs in nanomaterials, integrated photonics, and AI-powered analysis, optical sensors are pushing beyond traditional limits to take on real-time diagnostics, environmental sensing, and industrial automation.
Here's what's driving the shift, and where the technology is headed next.
At the heart of the latest optical sensors are engineered nanostructures that manipulate light in highly controlled ways.
Surface plasmon resonance (SPR) sensors, built with metallic nanostructures, can now detect chemical and biological targets with greater sensitivity and stability.
This has become a game-changer for label-free detection of biological and chemical substances with exceptional accuracy.1
Metasurfaces are also enabling sensors to go smaller and sharper. By confining electromagnetic fields at nanoscale volumes, they amplify weak signals and support techniques like surface-enhanced Raman scattering (SERS) and surface-enhanced infrared absorption (SEIRA).
Their design flexibility lets engineers tailor sensing responses for specific use cases.?2
Find out more about metamaterials here!
Meanwhile, optical fiber technology is continuing to evolve. Tapered and nanofiber-based sensors offer stronger light-matter interaction, which boosts sensitivity.
Coatings made from materials like graphene or metal oxides are expanding their selectivity, enabling the precise measurement of temperature, strain, or chemical presence, even in harsh or remote environments.
These fibers have become fundamental in creating miniaturized, highly sensitive sensing platforms suitable for remote and harsh environments.?3,4
Integration with Emerging Technologies
One of the most powerful shifts in optical sensing is how data is processed. Machine learning algorithms are now embedded into systems to extract patterns from complicated optical signals.
For example, ML methods have been applied to fiber Bragg grating sensors used in structural health monitoring, enabling them to better deliver diagnostics through AI-enhanced analysis.?5
Wearable and implantable devices also benefit.
Fiber-based biosensors using SPR are tracking biomarkers like glucose and lactate in situ with no need for labeling or lab work.
The emergence of flexible, even tattoo-like, sensors signals a future where optical sensing blends seamlessly with the human body for continuous monitoring.6,7
Integrated Photonics and Computational Tools
Chip-scale photonic sensors are pushing toward smaller, cheaper, and more efficient platforms.
These sensors operate primarily in near- and mid-infrared wavelengths, using silicon photonics, indium phosphide, or other semiconductor materials to achieve compact, low-cost, and highly sensitive detection systems.8
Recent progress includes the development of photonic crystal sensors and topological photonic structures that combine light confinement with resilience against defects, ideal for applications ranging from gas sensing to industrial quality control.8
At the same time, computational sensing is closing the loop between hardware and software. Generative models and AI frameworks cannot only interpret raw data but also enhance predictive accuracy and facilitate real-time calibration.
The result: intelligent sensors that self-optimize and support automated decision making.8

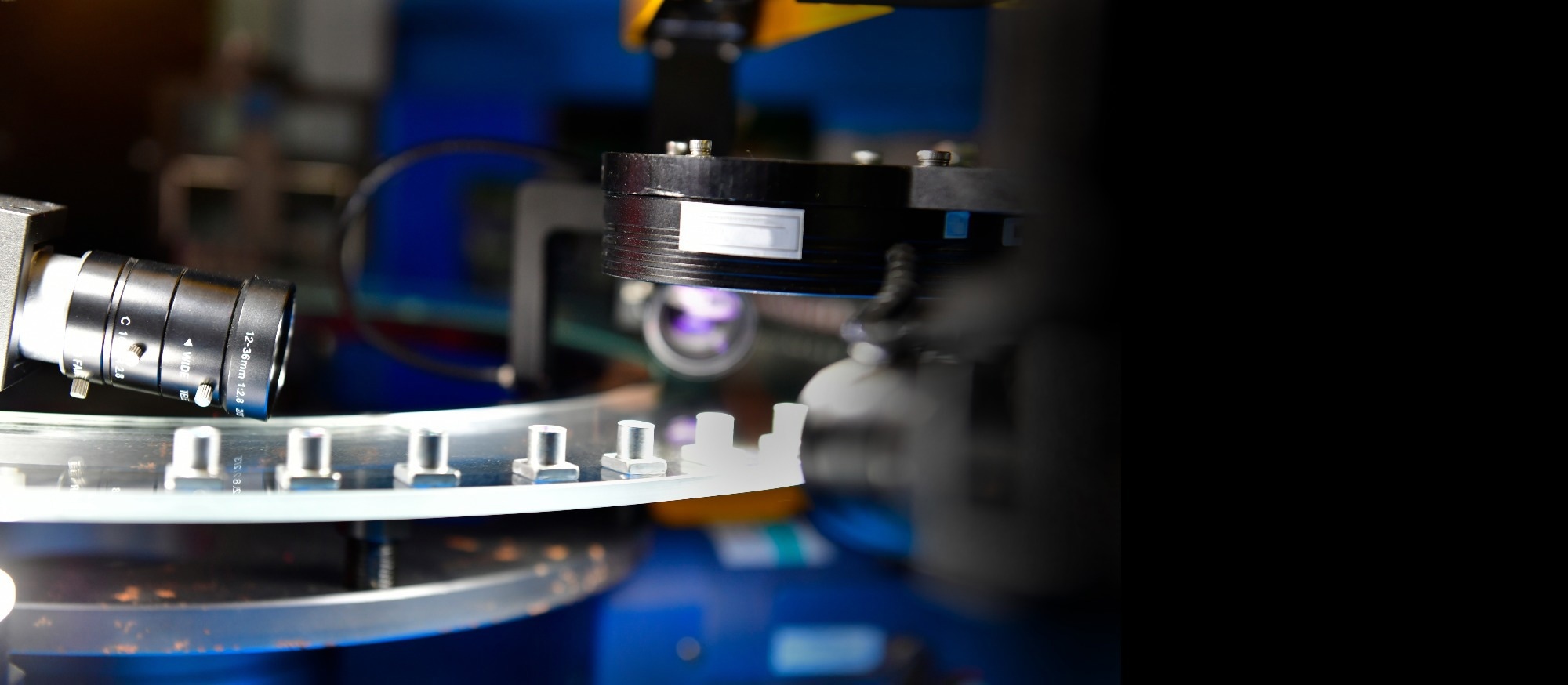

Image Credit: Aiyrat Zakirov/Shutterstock.com
Active optical remote sensing technologies, especially those using light detection and ranging (LIDAR), are also evolving. Used in everything from climate science to autonomous vehicles, these systems are advancing.
They combine sophisticated laser sources and detectors with optical sensors for high-resolution spatial mapping and thorough environmental monitoring.
The ongoing innovations in integrated photonics and computational sensing hold promise for developing optical sensors that are more compact, efficient, versatile, and intelligent than ever before.8
Get all the details: Grab your PDF here!
Advances in Optical-Fibre Sensors for Biomedical Applications
Optical fiber sensors are well-suited to biomedical tasks as they're small, flexible, immune to electromagnetic interference, and highly accurate. Today, they're embedded into catheters, needles, and endoscopes to track vital signs or internal conditions with minimal disruption.
Recent research highlights how optical fibres can enable precise monitoring of physiological parameters inside the human body.6
For example, fiber Bragg gratings and Fabry-Pérot interferometers are used to monitor tissue temperature during laser ablation procedures, providing precise feedback instantaneously. Other systems track respiration, pulse, or blood pressure without direct contact.6
Polymer optical fibers are especially promising thanks to their flexibility and biocompatibility. Techniques using fiber specklegrams provide reliable heart rate and motion monitoring for both clinical and home use.
Despite these benefits, challenges remain, such as reducing cross-sensitivity and enhancing signal quality in the presence of motion.6
Novel Detection Modalities and Other Applications

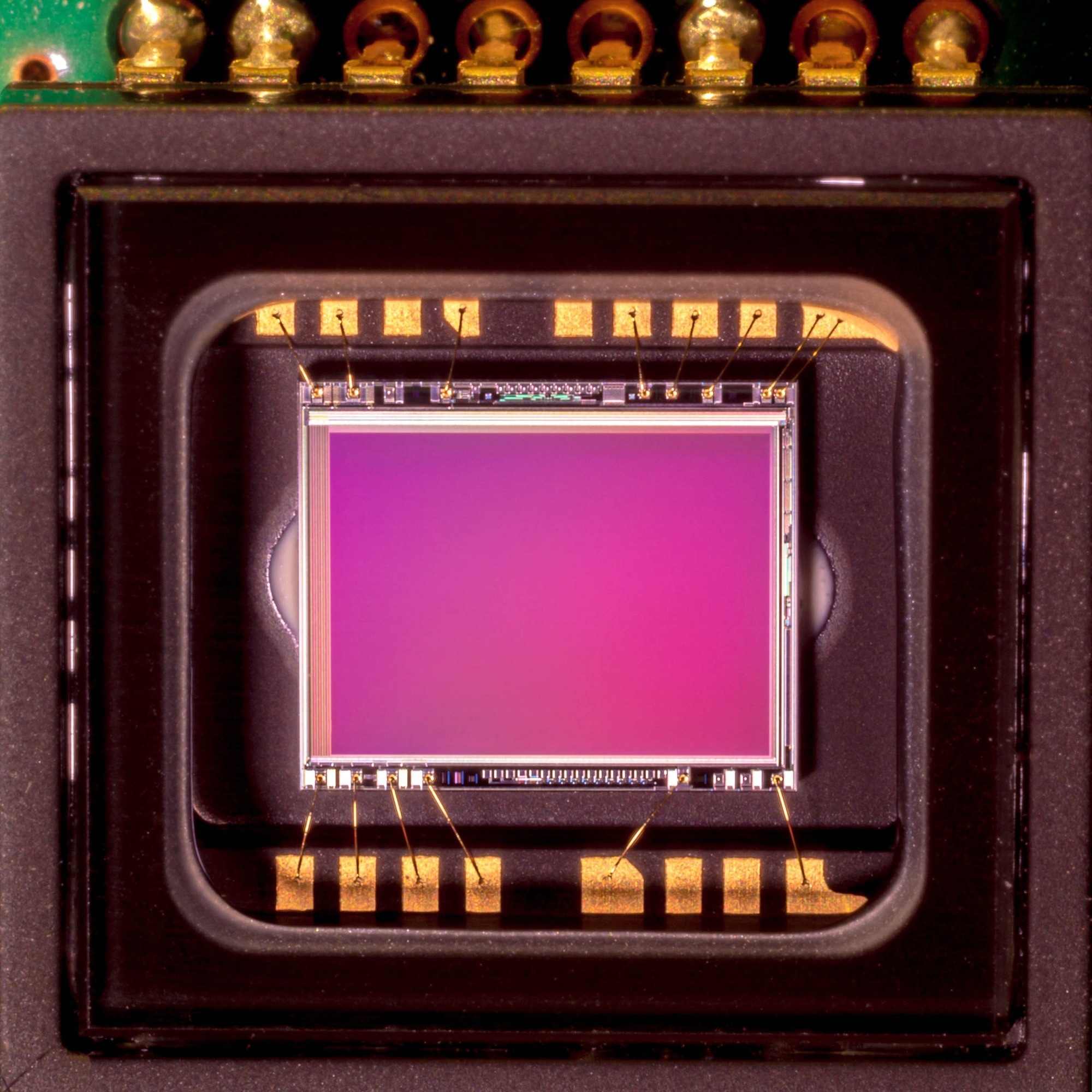

Image Credit: i viewfinder/Shutterstock.com
New sensing technologies are expanding the scope of optical sensors. Novel holographic sensing can detect specific substances in complex biological samples with high efficiency.
Similarly, photonic crystal fiber sensors take advantage of their unique bandgap properties to selectively detect gases, chemicals, and biological molecules in various environments.9,10
Another important area is quantum-enhanced optical sensors, which use quantum states of light, such as entangled photons and squeezed states, to surpass classical limits of measurement precision.
Recent developments in Gallium Nitride (GaN) laser diodes have led to the production of high-power, narrow-linewidth lasers that are useful for quantum sensing and optical atomic clocks. These improvements enhance the accuracy and reliability of measurements in fields like navigation, gravity mapping, and timing.11
The versatility of optical sensors extends to environmental monitoring, where they detect pollutants, water quality parameters, and atmospheric gases.
Fiber optic sensors based on plasmonic and photonic crystal structures have demonstrated high specificity, stability, and rapid response times.
As portable low-cost versions become more accessible, expect to see broader use in remote and resource-limited areas.?12
What's Next for Optical Sensors
The future of optical sensors looks to be in even deeper integration, multifunctionality, and automation.
Chip-integrated systems that can detect multiple signals at once are already in development. Pairing sensors with microfluidics could enable instant, high-throughput diagnostics for both clinical and field settings.
There are still challenges to overcome, from lowering manufacturing costs to improving durability in extreme environments. But ongoing research in nanomaterials, fabrication techniques, and AI-driven analysis is advancing the field toward intelligent, autonomous sensing platforms.
As optical sensors grow smarter and more embedded, the real question isn't what they can measure, but what they will make possible next?
References and Further Reading
- Mostufa, S. et al. (2024). Advancements and Perspectives in Optical Biosensors. ACS Omega, 9(23), 24181. DOI:10.1021/acsomega.4c01872. https://pubs.acs.org/doi/10.1021/acsomega.4c01872
- Barbillon, G. (2022). Latest Advances in Metasurfaces for SERS and SEIRA Sensors as Well as Photocatalysis. International Journal of Molecular Sciences, 23(18), 10592. DOI:10.3390/ijms231810592. https://www.mdpi.com/1422-0067/23/18/10592
- Zhang, W. et al. (2023). Advances in Tapered Optical Fiber Sensor Structures: From Conventional to Novel and Emerging. Biosensors, 13(6), 644. DOI:10.3390/bios13060644. https://www.mdpi.com/2079-6374/13/6/644
- Mos, J. E. (2024). Advances in Optical Microfibers: From Fabrication to Functionalization and Sensing Applications. Materials, 18(11), 2418. DOI:10.3390/ma18112418. https://www.mdpi.com/1996-1944/18/11/2418
- Florencio, E. et al. (2024). Machine Learning Applications in Optical Fiber Sensing: A Research Agenda. Sensors, 24(7), 2200. DOI:10.3390/s24072200. https://www.mdpi.com/1424-8220/24/7/2200
- Ochoa, M. et al. (2021). Recent Advances in Biomedical Photonic Sensors: A Focus on Optical-Fibre-Based Sensing. Sensors, 21(19), 6469. DOI:10.3390/s21196469. https://www.mdpi.com/1424-8220/21/19/6469
- Bujugundla, R. S. et al. (2024). Emerging Technologies for Fiber-Optic-Based Sensors in Biomedical Domain: A Review and Recent Developments. IEEE Transactions on Instrumentation and Measurement, vol. 73, pp. 1-32. DOI:10.1109/TIM.2024.3481569. https://ieeexplore.ieee.org/document/10720091
- Jain, S. et al. (2025). Incubating advances in integrated photonics with emerging sensing and computational capabilities. Applied Physics Reviews, 12(1). DOI:10.1063/5.0218564. https://pubs.aip.org/aip/apr/article/12/1/011337/3340374/Incubating-advances-in-integrated-photonics-with
- Portosi, V. et al. (2019). Advances on Photonic Crystal Fiber Sensors and Applications. Sensors (Basel, Switzerland), 19(8), 1892. DOI:10.3390/s19081892. https://www.mdpi.com/1424-8220/19/8/1892
- Ahmed, I. et al. (2022). Optical Sensors in Continuous Glucose Monitoring for the Diagnosis of Diabetes. Sensors & Diagnostics. DOI:10.1039/d1sd00030f. https://pubs.rsc.org/en/content/articlelanding/2022/sd/d1sd00030f
- Najda, S. P. et al. (2020). Advances in GaN laser diodes for quantum sensors and optical atomic clocks. In M. Razeghi, J. S. Lewis, G. A. Khodaparast, & P. Khalili (Eds.), Quantum Sensing and Nano Electronics and Photonics XVII. SPIE. DOI:10.1117/12.2543348. https://www.spiedigitallibrary.org/conference-proceedings-of-spie/11288/2543348/Advances-in-GaN-laser-diodes-for-quantum-sensors-and-optical/10.1117/12.2543348.short
- Elena, M. et al. (2021). Trends in the Implementation of Advanced Plasmonic Materials in Optical Fiber Sensors (2010–2020). Chemosensors, 9(4), 64. DOI:10.3390/chemosensors9040064. https://www.mdpi.com/2227-9040/9/4/64
