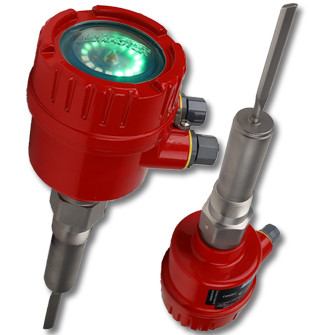

The VRX series from BinMaster combines reliable vibrating probe technology with an LED status indicator for bright point-level alerts, from up close to over 100 ft. away.
VRX21 is the standard model, with a variety of customizations available to meet users’ operational needs.
VRX sensors outperform other point-level sensors in extremely lightweight, low-dielectric bulk materials. The probes measure powders, flakes, or granular bulk solids with bulk densities as low as 1.25 lb./ft.3.
Buildup-resistant blades and adjustable sensitivity make VRX a dependable choice for high-, mid-, or low-level alerts. Two sensitivity settings - high and low - reduce false alarms.

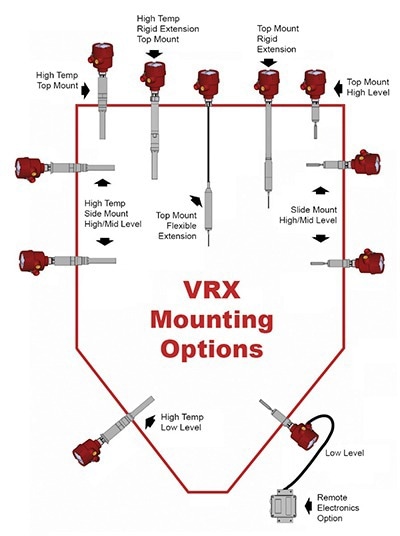

VRX sensors include a wide range of mounting options. For assistance in choosing the best top or side mounting option, contact the BinMaster team.
Image Credit: BinMaster
VRX21 Features
- Highly visible status light changes color based on “covered” or “uncovered” status
- Sword-shaped blade prevents bridging, buildup, or false alerts
- Piezoelectric vibration works and thrives in challenging bulk solid materials: powders, flakes, pellets, fly ash
- Quick setup, no calibration required
- Includes switch-selectable high/low fail-safe options
- 24 VDC, 115/230 VAC selectable operating voltage
- Durable die-cast aluminum enclosure, NEMA 4X rated
- 1.25" NPT or 1.5" NPT mounting options; 0.75” NPT conduit entry
Image Credit: BinMaster

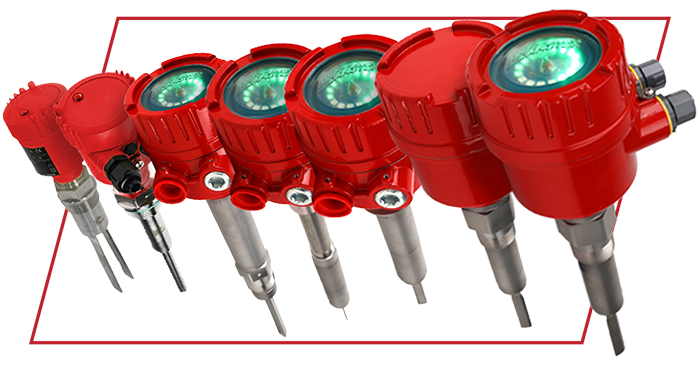

Additional VRX Models, Custom-Manufactured in Lincoln, NE, USA
- VRX31, for Sanitary Environments: Designed for clean-in-place applications; includes a 2” stainless-steel fitting
- VRX41, Rigid Extended: User-specified galvanized stainless-steel or sanitary pipe extensions from 13” to 13’
- VRX51, Flexible Extended: Custom reinforced cable extensions from 19” to 19.5’
- VRX61, Ruggedized for High Temperatures: Withstands process temperatures up to 485°F (250°C)
- VRX71, High-Temperature & Extended: Operates in environments up to 482°F (250°C); can be extended an additional 10.25” to 13.3’
- Remote electronics and compact sensors are also available
Discover even more vibrating probes, forks, and rods at BinMaster.com today.
