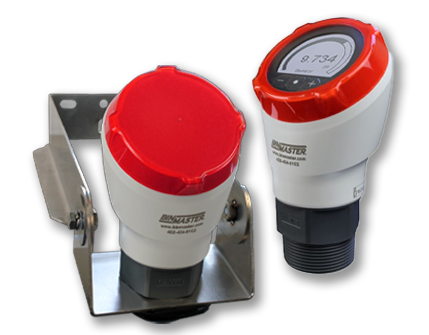

Compact spaces benefit from radar level measurement. The CNCR-210, CNCR-220, and CNCR-230 provide accurate inventory monitoring in bins, tanks, silos, hoppers, or other tight spaces.
BinMaster’s CNCR-200 sensors provide measurements from ranges up to 49 ft. (15 m). The precise 80 GHz beam provides accuracy within ≤ 0.2” (5 mm) despite fluctuations in temperature, humidity, dustiness, or turbulence within the vessel being measured.
CNCR-200 sensors are designed with a 1.5” threaded or 1.5” threaded straight NPT connection for ease of installation. The durable housing is rated IP66/IP67, NEMA Type 4X for protection against dust and water ingress.
Choose the CNCR-230 with an LED display for local level accessibility. All three sensors are also compatible with BinMaster’s remote inventory monitoring and management software, BinCloud®.
Common Applications
- Agriculture: Measure animal feed, crop storage, and grain piles or flat storage
- Milling: Raw and malted grains or finished flour products
- Chemicals: Non-contact measurements are ideal for corrosive liquids
- Food Processing: For human and pet food; monitor wet and dry ingredient levels
- Cement & Mining: Well-suited for tall and narrow finished cement silos, plus bulky or heavy aggregate storage
- Plastics Manufacturing: Measure bulk resin pellets, powders, or flakes
- Water & Wastewater: Monitor process water levels for use inside industrial plants, or utilize at water treatment facilities for chemical and wastewater tanks
CNCR-200 Series Specifications
Source: BinMaster
| |
CNCR-210 |
CNCR-220 |
CNCR-230 |
| Frequency |
80 GHz |
80 GHz |
80 GHz |
| Measuring Range |
26 ft. (8 m) |
49 ft. (15 m) |
49 ft. (15 m) |
| Beam Angle |
8 ° |
8 ° |
8 ° |
| Accuracy |
≤ 0.2” (5 mm) |
≤ 0.2” (5 mm) |
≤ 0.2” (5 mm) |
| Operating Voltage |
12 to 35 VDC |
12 to 35 VDC |
12 to 35 VDC |
| Output |
2-wire 4-20 mA |
2-wire 4-20 mA |
2-wire 4-20 mA |
| Enclosure Material |
PVDF |
PVDF |
PVDF |
| Enclosure Rating |
IP66/IP67,
Type 4X |
IP66/IP67,
Type 4X |
IP66/IP67,
Type 4X |
| Display |
None |
None |
LED Display |
| Mounting |
1.5” threaded NPT,
1.5” threaded straight |
1.5” threaded NPT,
1.5” threaded straight |
1.5” threaded NPT,
1.5” threaded straight |
| Connection |
One 1/2" NPT without plug
in either opening |
One 1/2" NPT without plug
in either opening |
One 1/2" NPT without plug
in either opening |
| Process Pressure |
-14.5 to +43.51 psi
(-1 to +3 bar/-100 to +300 kPa) |
-14.5 to +43.51 psi
(-1 to +3 bar/-100 to +300 kPa) |
-14.5 to +43.51 psi
(-1 to +3 bar/-100 to +300 kPa) |
| Process Temperature |
-40 ° to +140 °F
(-40 ° to +60 °C) |
-40 ° to +140 °F
(-40 ° to +60 °C) |
-40 ° to +140 °F
(-40 ° to +60 °C) |
| Ambient Temperature |
-40 ° to +140 °F
(-40 ° to +60 °C) |
-40 ° to +140 °F
(-40 ° to +60 °C) |
-40 ° to +140 °F
(-40 ° to +60 °C) |
To learn more about precise radar level measurement, visit BinMaster.com today.
