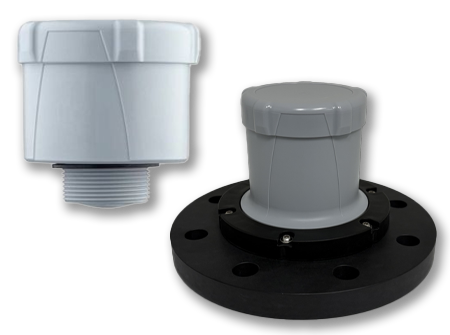

Introducing the newest line of compact non-contact radar sensors from BinMaster: the wireless CNCR-300 series. CNCR-320 and CNCR-390 sensors are ideal for remote, hard-to-access bins, tanks, silos, or other storage containers.
Wireless and powered by a long-lasting Lithium battery, the sensors deliver level measurements via long-range (LoRa) wireless communications directly to the cloud. Data is transmitted to BinMaster’s inventory management software, BinCloud®, or another IIoT solution of the user’s choice.
With respective maximum ranges of 49 ft. (15 m) and 98 ft. (30 m), the CNCR-320 and CNCR-390 operate reliably in harsh conditions. The sensors are capable of withstanding temperature and pressure changes, dusty environments, turbulence, or condensation.
Use CNCR-300 sensors anywhere you need to measure bulk solids, slurries, or liquids:
Common Applications
- Agriculture: Measuring agrichemical tanks, grain silos, or other remote vessels
- Industrial Tanks: Where real-time water monitoring for cooling or processing is a must
- Fuel & Oil: Reliable non-contact monitoring of diesel, oils, and other industrial fluids
- Chemical Processing: Measure acids, bases, additives, adhesives, and liquid resins
- Food & Pharmaceutical Processing: Simplified ingredient management for pet food, human food, and pharma operations
- Open-Air Applications: Use over bodies of water, dams, free-flow streams, or livestock waste pits to monitor liquid levels
- Cement & Plastics: Keep workers safer by eliminating climbs up tall, narrow silos for manual level measurements
CNCR-300 Series Specifications
Source: BinMaster
| |
CNCR-320 |
CNCR-390 |
| Frequency |
80 GHz |
80 GHz |
| Measuring Range |
49 ft. (15 m) |
98 ft. (30 m) |
| Accuracy |
±0.78” (2 mm) |
±0.78” (2 mm) |
| Antenna |
Integrated |
Integrated |
| Power Supply |
Integrated batteries 5x 3.6 V
(Lithium), exchangeable |
Integrated batteries 5x 3.6 V
(Lithium), exchangeable |
| Output |
LoRa |
LoRa |
| Enclosure Material |
PVDF |
PVDF |
| Enclosure Rating |
IP66, IP68 |
IP66, IP68 |
| Mounting |
1.5” NPT |
Adapter Flange 4”, 6”, 8” ;
Compression Flange 3" |
| Process Pressure |
-1 … +2 bar (-100 … +200 kPa) |
-1 … +2 bar (-100 … +200 kPa) |
| Process Temperature |
-20 ° to +140 °F (-20 ° to +60 °C) |
-20 ° to +140 °F (-20 ° to +60 °C) |
| Ambient Temperature |
-20 ° to +140 °F (-20 ° to +60 °C) |
-20 ° to +140 °F (-20 ° to +60 °C) |
To learn more about wireless radar sensors, visit BinMaster.com today.
