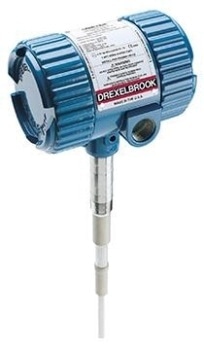

Level Measurement for Multiple Level Applications - Universal IV Level System

The Universal IV level system is a suitable solution for level applications in industries such as water and wastewater, oil and gas refining, and pharmaceutical and biotech industries.

This unique level system comes with standard display/keypad, state-of-the-art stable and accurate measurement, auto-ranging capabilities, and international hazardous location approvals. It is built to ignore tank obstructions such as ladders, pipes, nozzles, and agitators. It is immune to dust, vapor, and foam interference.

The Universal IV level system can be used as an integral installation. In case of challenging environmental conditions, the Universal IV level system can be set up remotely away from the probe.

The Universal IV level system provides a very wide selection of probes and is available in two models:

Pro Model

The Universal IV Pro level system combines the RF Admittance technology with the versatility of Cote-Shield technology. The Cote-Shield technology is capable of ignoring coatings on the probe and measurement span of 1" to 800'.

The Universal Pro level system is capable of quality level measurement in applications such as conductive, insulating, including light or even heavy coating.

Lite Model

The Universal IV Lite level system is the entry-level RF Capacitance measurement system without Cote-Shield features. The Universal IV Lite level system usually installed in applications having non-coating conductive liquids or insulated coating applications without the requirements for a Cote-Shield. The Lite Model offers level measurement at ranges up to 20'.

The Universal IV level system is also available in a model specifically built for water well level monitoring.

Key Features

  • Easy one-time calibration
  • Output: 4-20 mAdc, HART. Compatible with HART
  • No maintenance and no moving parts to wear out, means minimal cost of ownership
  • Immune to tank obstructions such as nozzles, pipes, ladders, and agitators
  • Supply voltage: 13-30 VDC, 2 wire loop powered
  • Optional intrinsically safe systems

The Universal IV Series level system is backward compatible with the industrial standard Universal III, Universal II, Universal Lite, and RCT Series.

Product Type

Liquid level sensor, Slurry level sensor, Interface level sensor, Granular level sensor, Continuous level sensor, Level transmitter, Water level sensor, Tank level indicator, Level gauge, Water level switch, Level system, Water well, Clean room possibility
