Digital Rate & Total Indicator From Titan Enterprises

The Pulsite Solo from Titan Enterprises is a low cost, digital rate, and total display indicator that is adaptable to suit almost any flow and rate measurement application across the manufacturing sector.

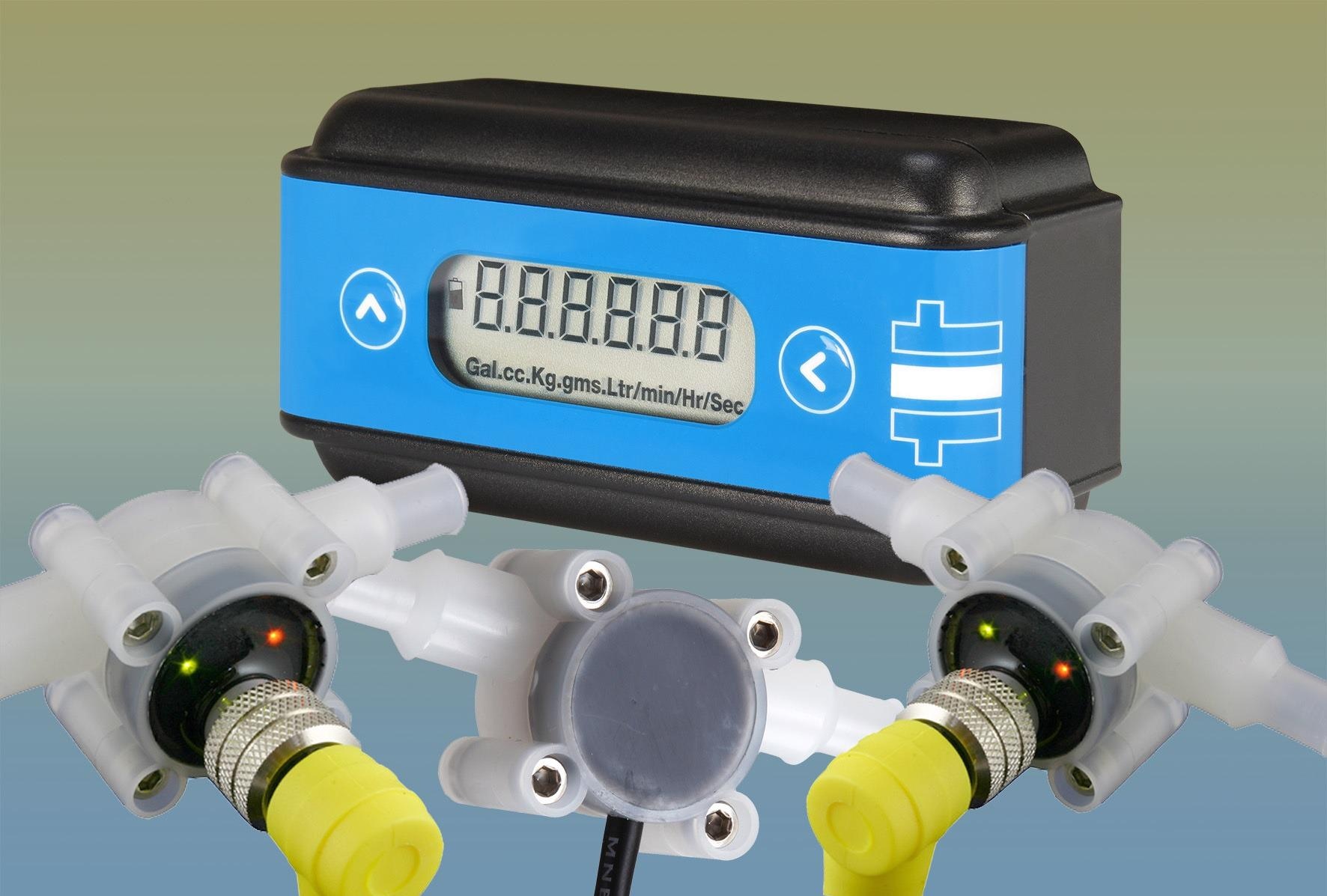

The Pulsite Solo digital flow rate and total indicator adaptable for use with almost any flow sensor

Requiring no external power, the compact Pulsite Solo has multiple mounting possibilities and can be configured to any flow element. Programming on the Pulsite Solo is quick and simple using just the two front panel keys and following the prompts on the LCD display.

Battery powered and designed to indicate a variety of pulse input, such as coil, reed switch, and logic, the Pulsite Solo will take frequencies up to 2 kHz and scale them to display rate or total. The scaling factors are adjustable from 0.01 to 9999 and the time base is selectable as seconds, minutes, or hours. This versatile indicator can also be externally dc powered if required for use with electronic sensors.

Available as a panel and surface mounted unit, the IP64 compliant Pulsite Solo is a reliable and long-term display unit proven across a wide range of operating environments. When solely powered by the replaceable battery, the Pulsite Solo can operate in excess of 5 years when used as a flow totaliser. As a digital flow rate measuring instrument, the battery life of the Pulsite Solo depends on the duty cycle but will still provide several years of operation.

For further information on the Pulsite Solo digital flow rate and total indicator please visit https://www.ratetotaliser.com/ or contact Titan Enterprises on +44 1935 812790 or [email protected]
