Competitively Priced Harsh-Environment Linear Position Measurement: Ixthus’ Heavy Duty, Inductive Linear Position Sensor Range Offers Long-Life and Maximum Reliability

The ILT series linear position sensors from our sister company Ixthus Instrumentation are a cost-effective choice for precision linear measurement tasks in harsh duty areas such as construction and agricultural machinery, and heavy-duty industrial plant.

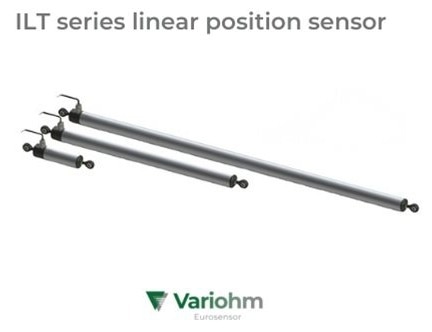

Image Credit: Variohm Eurosensor Limited

The durable and robust IP67/69K rated sensor has an independent linearity specification of +/- 0.25% (FSO at 20° C) and is supplied in a choice of eleven stroke lengths from 25 mm to 600 mm. The ILTs non-contacting inductive sensor technology measurement principle offers long-life and maximum reliability with MTBF rated at 360,000 hrs. A 35 mm diameter anodised aluminium housing provides maximum protection for the sensor electronics with vibration and shock ratings specifications of 10 g and 40 g respectively (IEC-68-2-6 and IEC-68-2-29).

The mechanical and electrical options built into ILT series make selection and installation straightforward. Standard mounting options for the rod-style sensor includes optional steel or plastic 8 mm diameter rod ends, alternatively M8 female threads at both ends may be specified. A choice of four standard electrical output/input options include 0.5…4.5 VDC from a 24 VDC input as well as 0.5…4.5 V ratiometric from a nominal +5 VDC. Other options are 2- and 3-wire options for 4…20mA output from a 24 VDC input. The extended operational temperature range for the 2-metre screened cable interfaced option, available across the ILT series, is -40…100 °C with the ratiometric version offering an extended upper limit to 125 °C. Alternatively an M12 connector version is available with temperature range limited to -40 °C to +85 °C and an overall environmental sealing rating derated to IP67.

A comprehensive data sheet is available for download here
