Alliance Sensors Group Releases Robust LA-25-A LVDT Linear Sensor

H. G. Schaevitz LLC, Alliance Sensors Group is proud to release its LA-25-A series LVDT linear position sensors, designed to handle extreme industrial environments. Available in ranges from 3 inches (75 mm) to 15 inches (375 mm), the LA-25-A is ideal for roller gap positioning, process valve displacement, head box and actuator position feedback with the durability to withstand the harsh environments found in steam and hydro power plants; paper, steel, and aluminum mills; die and stamping presses; building and bridge monitoring; and industrial automation and fluid power systems.

It can operate in hostile factory environments such as lubricant and chemical mists, airborne grit and dust, and typical industrial wash downs.

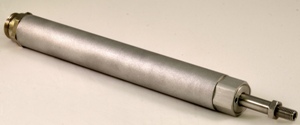

LA-25-A LVDT linear position sensor

The robust LA-25-A LVDT linear sensor has a sturdy one-inch (25.4 mm) diameter heavy wall housing of aluminum or stainless steel, two double-contact shaft seals that keep fluids and solid contaminants out of its bore, and offers a choice of axial connectors or a cable in a metal cord grip.

The LA-25-A series permits a variety of mountings, including standard saddle-type clamps, a two-hole flange that screws onto its front bushing, and a single hole mount through a bulkhead up to 1/8 inch thick. The LA-25-A's core is enclosed in a core extension rod assembly from which it can never break loose, while offering a sturdy male thread for easy mechanical connection. When mated with ASG's SC-100 industrial LVDT DIN-rail-mountable signal conditioner, an LA-25-A LVDT becomes an ideal solution for heavy duty industrial applications for position sensing.

Standard Features:

  • Stock ranges from 3 inches to 15 inches (75 mm to 375 mm)
  • Enclosed Core in 3/8 inch diameter core extension rod with a 5/16-24 or 8 mm male threaded shaft end
  • One-inch (25.4 mm) diameter heavy wall aluminum housing
  • Continuous operation to 220°F (105 C)
  • Two double-contact shaft seals keep out grit and dirt.
  • Environmentally sealed to IP-68

Options:

  • Stainless steel body
  • External auxiliary shaft seals
  • Mild radiation resistant version for nuclear power plants (30 Mrads for 40 years)
  • Mounting hardware including flanges, single hole mounting kits, swivel rod eye ends, ball joints, extension rods, holddown clamps, and tie bars for dual-mounted LVDTs
  • Radial connector or cable versions available- LA-25-R

For more information on Alliance Sensor Group, contact [email protected] or go to our web site at www.alliancesensors.com.
