Bestech Introduces LA-25-A Series LVDT Linear Position Sensors

LA-25-A series Linear Variable Displacement Transformer (LVDT) sensors from Bestech Australia are ranging from 75 mm to 375 mm anddesigned to handle extreme industrial environments.

The LA-25-A is ideal for roller gap positioning, process valve displacement, head box and actuator position feedback with the durability to withstand the harsh environments found in steam and hydro power plants; paper, steel, and aluminum mills; die and stamping presses; building and bridge monitoring; and industrial automation and fluid power systems. It can operate in hostile factory environments such as lubricant and chemical mists, airborne grit and dust, and typical industrial wash downs.

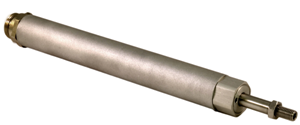

LA-25

The LA-25-A LVDT linear sensor features a sturdy 25.4 mm diameter heavy wall housing of aluminum or stainless steel, two double-contact shaft seals that keep fluids and solid contaminants out of its bore, and offers a choice of axial connectors or a cable in a metal cord grip.

The LA-25-A series is robust and permits a variety of mountings, including standard saddle-type clamps, a two-hole flange that screws onto its front bushing. The LA-25-A's core can never break loose as it is enclosed in a core extension rod assembly, and offering a sturdy male thread for easy mechanical connection. When integrated withSC-100 industrial LVDT DIN-rail-mountable signal conditioner, an LA-25-A LVDT supplied by Bestech Australia becomes an ideal solution for heavy duty industrial applications for position sensing.

Standard Features:

  • Stock ranges from 75 mm to 375 mm
  • Enclosed Core in 3/8 inch diameter core extension rod with a 5/16-24 or 8 mm male threaded shaft end
  • 25.4 mm diameter heavy wall aluminum housing
  • Continuous operation to 105℃
  • Two double-contact shaft seals keep out grit and dirt.
  • Environmentally sealed to IP68

Options:

  • Stainless steel body
  • External auxiliary shaft seals
  • Mild radiation resistant version for nuclear power plants (30 Mrads for 40 years)
  • Mounting hardware including flanges, single hole mounting kits, swivel rod eye ends, ball joints, extension rods, holddown clamps, and tie bars for dual-mounted LVDTs
  • Radial connector or cable versions available- LA-25-R
