Kioxia Corporation, the world leader in memory solutions, today announced that it has successfully developed its fifth-generation BiCS FLASH™ three-dimensional (3D) flash memory with a 112-layer vertically stacked structure.

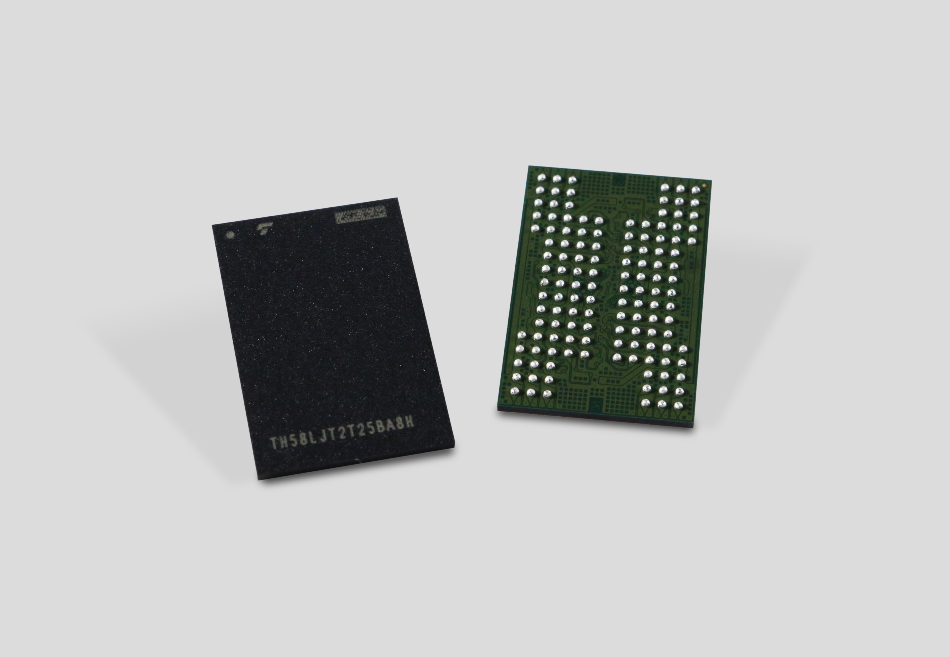

5th-Generation BiCS FLASH(TM) (Photo: Business Wire)
Kioxia plans to start shipping samples of the new device, which has a 512 gigabit (64 gigabytes) capacity with 3-bit-per-cell (triple-level cell, TLC) technology, for specific applications in the first quarter of calendar year 2020. The new device aims to fulfill ever-growing bit demands for a wide variety of applications, including traditional mobile devices, consumer and enterprise SSDs, emerging applications enabled by the new 5G networks, artificial intelligence and autonomous vehicles.
Going forward, Kioxia will apply its new fifth-generation process technology to larger capacity devices, such as 1 terabit (128 gigabytes) TLC and 1.33 terabit 4-bit-per-cell (quadruple-level cell, QLC) devices.
Kioxia’s innovative 112-layer stacking process technology is combined with advanced circuit and manufacturing process technology to increase cell array density by approximately 20 percent over the 96-layer stacking process. The new technology reduces the cost per bit and increases the manufacturability of memory capacity per silicon wafer. Additionally, it improves interface speed by 50 percent and offers higher programming performance and shorter read latency.
Since announcing the world’s first prototype 3D flash memory technology in 2007, Kioxia has continued to advance development of 3D flash memory and is actively promoting BiCS FLASH™ to meet the demand for larger capacities with smaller die sizes.
Fifth-generation BiCS FLASH™ was developed jointly with technology and manufacturing partner Western Digital Corporation. It will be manufactured at Kioxia’s Yokkaichi Plant and the newly built Kitakami Plant.
